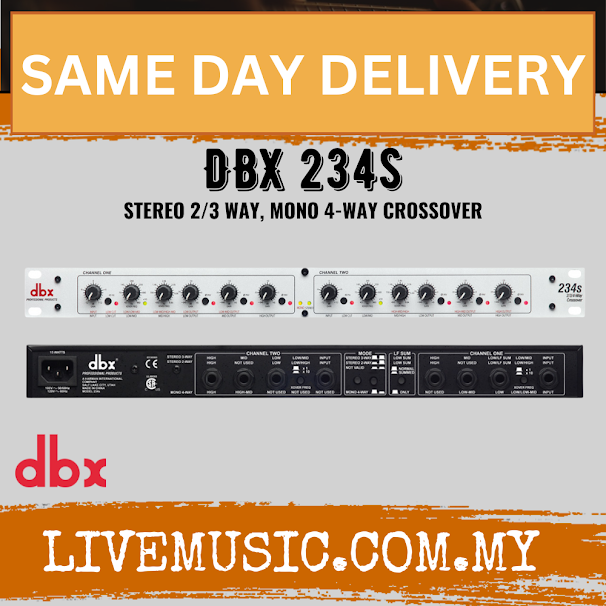

Description

FEATURES
  • TRS differentially balanced ins and outs
  • Mode switches for mono 4-way or stereo 2-way/3-way operation
  • Low frequency summed (subwoofer) output
  • x10 range switch on both channels
  • 40Hz high pass (low cut) filter both channels
  • Phase reverse switch on all outputs
  • Individual level controls on all outputs
  • 24dB per octave Linkwitz-Riley filters (the professional standard)
  • Stereo/Mono status LEDs indicate the selected mode
  • dbx 2 year parts and labor as standard
  • CSA NRTL/C approved
  • CE compliant
  • Connectors: 1/4" TRS
  • Type: Electronically balanced/unbalanced, RF filtered
  • Impedance: Balanced >50k ohm, unbalanced >25k ohm
  • Max Input Level: >+22dBu balanced or unbalanced
  • CMRR: >40dB, typically >50dB at 1kHz
SPECIFICATIONS
  • OUTPUTS
  • Connectors: 1/4" TRS
  • Type: Impedance-balanced/unbalanced, RF filtered
  • Impedance: Balanced 200 ohm, unbalanced 100 ohm
  • Max Output Level: >+21dBu balanced/unbalanced into 2k or greater
  • CROSSOVER FREQUENCIES
  • Stereo Mode: Low/High 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  • Low/Mid 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  • Mid/High: 450Hz to 9.6kHz (x10 setting)
  • Mono Mode: Low/Low-Mid 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  • Low-Mid/High-Mid 450 Hz to 9.6 kHz
  • High-Mid/High 450 Hz to 9.6 kHz
  • Filter type: Linkwitz-Riley, 24 dB/octave, state-variable
  • FUNCTION SWITCHES
  • Front Panel (Low Cut): Activates 40Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel
  • Phase Invert: Inverts the phase at the output, one switch per output
  • Rear Panel: x10: Multiplies crossover frequency range by 10, one switch per channel
  • Mode: Selects stereo/mono and 2/3/4-way operation
  • LF sum: Selects normal (stereo) or mono-summed low frequency operation
  • INDICATORS
  • Stereo Operation: Green LED
  • Mono Operation: Yellow LED
  • Low Cut: Red LED per channel
  • x10 Green LED per channel
  • Phase Invert: Red LED per output (3 per channel)
  • SYSTEM PERFORMANCE
  • Bandwidth: 20Hz to 20kHz, +0/-0.5dB
  • Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB
  • Dynamic Range: > 106 dB, unweighted, any output
  • Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth
  • THD + Noise: < 0.004% at +4 dBu, 1 kHz
    < 0.04% at +20 dBu, 1 kHz
    Interchannel Crosstalk: < -80 dB, 20Hz to 20 kHz
    Common Mode Rejection: Ref (+4dBu, 22kHz measurement bandwidth):Stereo Mode >94dB (Low Output); >93dB (Mid Output); >90dB (High Output)Mono Mode: >94dB (Low Output); >94dB (Low/Mid Output); >92dB (High/Mid Output); >88db (High Output)
  • POWER SUPPLY
  • Operating Voltage: 100-120 VAC 50/60Hz; 120 VAC 60Hz 230 VAC 50/60Hz
  • Power requirements: 15W
  • Operating Temperature: 32F to 113F (0C to 45C)
  • PHYSICAL
  • Dimensions: 1.75" H X 6.9" D X 19" W (4.5cm x 17.5cm x 48.26cm)
  • Weight: 4.0 lb. (1.8 kg); Shipping Weight: 5.8 lb. (2.6 kg)

Dimension Packaging Weight : 3.0 kg
