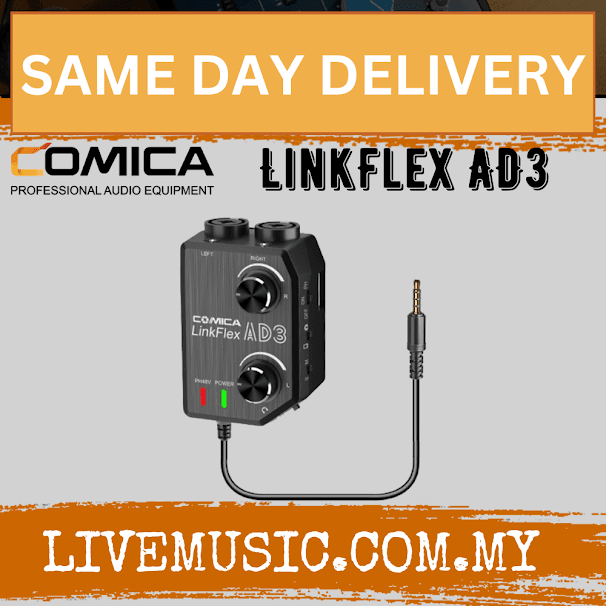

Expand your external audio input options when shooting video on a DSLR, mirrorless, or smartphone with a 3.5mm audio input using this Dual-Channel XLR-1/4" / 3.5mm Audio Mixer for Camera and Smartphone from Comica Audio. This adapter features two-channel inputs for combo XLR-1/4" and 3.5mm audio to a single 3.5mm audio output cable. The adapter allows you to input and mix audio from lavalier mics, shotgun mics, or even from instruments directly into your camera or phone with a 3.5mm audio input.

The adapter features gain control for each channel as well as a mono/stereo switch. It also features 48V phantom power for microphones that require additional power to operate. Two-way monitoring is also supported so you can monitor your input live as well as listen to audio playback from your camera or phone. The adapter is powered by a separately available 9V battery, and a belt clamp and hook-and-loop strap are included for mounting the adapter.



Comica Audio LinkFlex AD3 Specs

Inputs 2 x Combo XLR-1/4" L/R
2 x 3.5 mm
Output 1 x 3.5 mm TRRS
1 x 3.5 mm TRS Headphones
Phantom Power 48 V
Frequency Response 20 Hz to 20 kHz, ±1 dB
Gain Range Maximum +20 dB
THD & Noise RL = 2 Kilohms
f = 20 Hz to 20 kHz
Vo = 1 Vrms
Battery 1 x 9 V 6LR61/6F22
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 140°F / -20 to 60°C
Dimensions 2.8 x 2.1 x 4" / 70 x 53 x 102 mm
Weight 5.6 oz / 159 g
