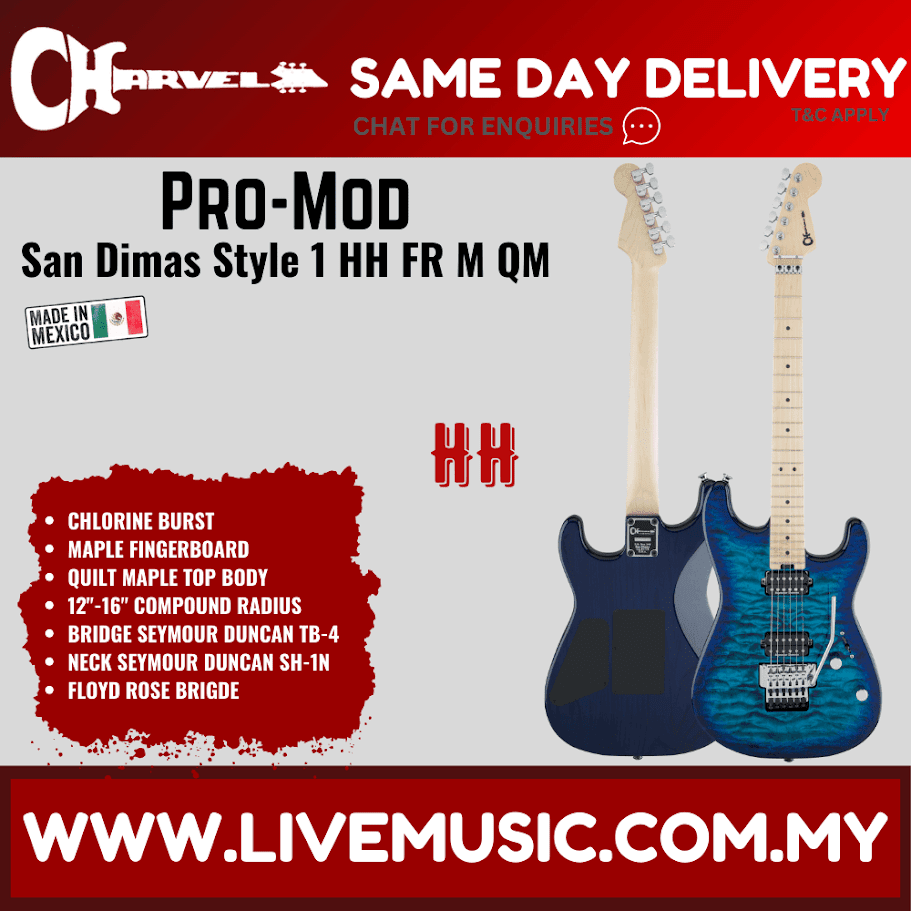

The San Dimas® Style 1 HH FR M QM features an alder body with quilt maple top and a bolt-on maple neck with a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Its 12""-16"" compound radius maple fingerboard hosts 22 jumbo frets and black dot inlays, and has a heel-mount truss rod wheel for quick and convenient neck relief tweaks.
Features
Quilt Maple Top
Bolt-on Maple Neck with Graphite Reinforcement
12""-16"" Compound Radius
Direct Mount Seymour Duncan TB-6/SH-6N Distortion Pickups
Unique Charvel Back Neckshape
3-Way Blade, Push/Pull Volume & No-Load Tone Controls
Heel-Mount Truss Rod Adjustment Wheel
Floyd Rose 1000 Series Double-Locking Tremolo Bridge System
Specs
Model Number 2965131599
Series Pro-Mod
Color Chlorine Burst
Number of Strings 6
Orientation Right-Hand
Electronics
Bridge Pickup Seymour Duncan® JB™ TB-4
Neck Pickup Seymour Duncan® '59™ SH-1N
Pickup Color Black
Controls Volume (Push/Pull Coil Split), No-Load Tone
Pickup Switching 3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil
Pickup Configuration HH
Body
Body Finish Gloss
Body Shape San Dimas® Style 1
Body Material Alder
Body Top Quilt Maple
Hardware
Bridge Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
Hardware Finish Chrome
Tremolo Arm Floyd Rose® 1000 Series Locking
Tuning Machines Charvel®-Branded Die-Cast
Pickguard None
Control Knobs Knurled Flat-Top
Switch Tip Black
Neck
Neck Material Maple
Neck Construction Bolt-On with Graphite Reinforcement
Neck Finish Hand-Rubbed Satin Urethane
Neck Shape Speed Neck with Rolled Fingerboard Edges
Neck Binding None - Rolled Fingerboard Edges
Scale Length 25.5"" (64.77 cm)
Fingerboard Radius 12""-16"" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material Maple
Number of Frets 22
Fret Size Jumbo
Nut Material Floyd Rose® 1000 Series Locking
Nut Width 1.6875"" (42.86 mm)
Position Inlays Black Dot
Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
String Trees Floyd Rose® Retainer Bar
Headstock Licensed Fender® Stratocaster®
Neck Plate 4-Bolt Serialized
Miscellaneous
Strings Nickel Plated Steel (.009-.042 Gauges)
Strap Buttons Standard
Case/Gig Bag Optional Charvel® Style 1/2 Economy Case (p/n 099-0612-100); Optional Charvel® Multi-Fit Gig Bag (p/n 299-1414-006)
