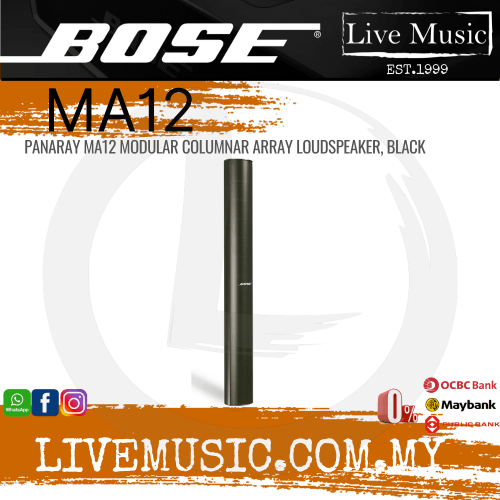

Bose Panaray MA12 Modular Vertical Line-Array Loudspeaker - Black

Description

Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

FEATURES
  • Twelve 2.25" (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
  • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
  • 145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration
  • Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement
  • Optional brackets allow easy installation of single-, double- or triple-stack line array modules
SPECIFICATIONS
  • Frequency Response (+/-3 dB) : 155 Hz - 12 kHz
  • Frequency Range (-10 dB) : 100 Hz - 16 kHz
  • Nominal Dispersion : 145° H x 20° V
  • Long-Term Power Handling : 300 W (1200 W peak)
  • Sensitivity (SPL / 1 W @ 1 m) : 88 dB SPL
  • Maximum SPL @ 1 m : 113 dB SPL (119 dB SPL peak)
  • Nominal Impedance : 8 ?

Bose Panaray MA12 Modular Vertical Line-Array Loudspeaker - Black

Product form

RM0.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: MA12-Black

💬 Request a Quote

This item is available on request — contact our sales team for pricing & availability.

Phone / WhatsApp 016-520 1066
Email livemusic1999@gmail.com
    Same Day Delivery via Lalamove

    Description

    Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

    FEATURES
    • Twelve 2.25" (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
    • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
    • 145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration
    • Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement
    • Optional brackets allow easy installation of single-, double- or triple-stack line array modules
    SPECIFICATIONS
    • Frequency Response (+/-3 dB) : 155 Hz - 12 kHz
    • Frequency Range (-10 dB) : 100 Hz - 16 kHz
    • Nominal Dispersion : 145° H x 20° V
    • Long-Term Power Handling : 300 W (1200 W peak)
    • Sensitivity (SPL / 1 W @ 1 m) : 88 dB SPL
    • Maximum SPL @ 1 m : 113 dB SPL (119 dB SPL peak)
    • Nominal Impedance : 8 ?
