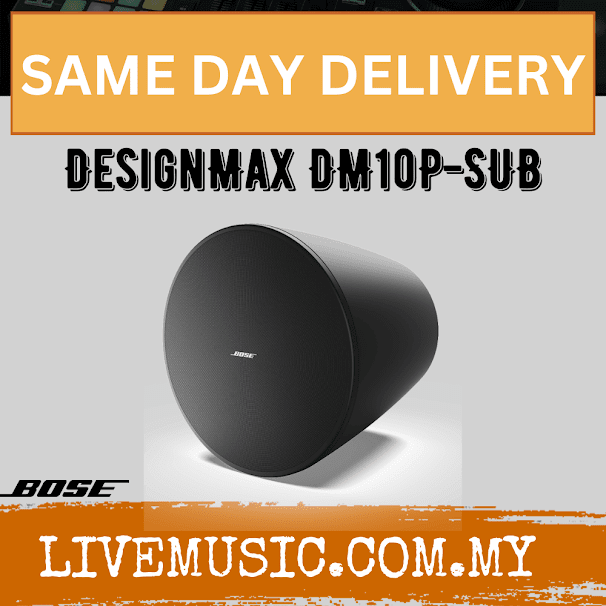

Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt DM10P-SUB is a 10-inch pendant subwoofer with a 40 - 125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
FEATURES
Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
Deliver rich bass performance with custom Bose drivers; for optimal performance, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
Product Codes
Black (single)
835265-0110
White (single)
835265-0210
SPECS
Technical Summary
Frequency Response (+/-3 dB)
46 - 108 Hz
Nominal coverage (H x V)
Omnidirectional below 200HZ
Power Handling, peak
1000 W
Maximum SPL @ 1m
110 dB
Frequency Range (-10 dB)
40 - 125 Hz
Power Handling, long-term continuous
250 W
Sensitivity (SPL/1W @ 1 m)
85 dB
Nominal Impedance
8 ? (transformer bypass)
