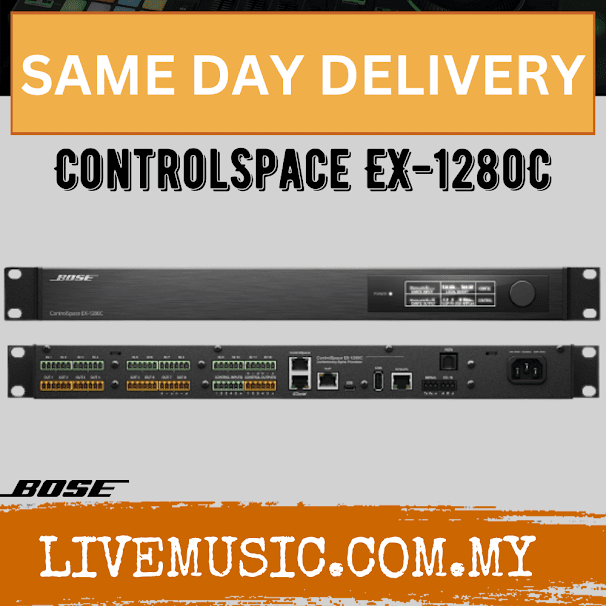

Bose ControlSpace EX-1280C Conferencing Sound Processor ( EX1280C / EX 1280C )

Description

SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6



A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support rooms of various sizes and the flexibility to meet future needs. With an open-architecture, all-in-one design, the ControlSpace EX-1280C offers signal processing for integrated-microphone audio conferencing applications. As the highest-capability processor of the ControlSpace EX family, the EX-1280C includes 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellers (AEC), and 64 x 64 Dante® connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.

FEATURES
  • All-in-one design supports simultaneous VoIP, PSTN and USB soft codecs in a single 1RU model
  • 12 acoustic echo cancellers (AEC) route to both analog and Dante® inputs; multiple references allow one EX-1280C processor to support multiple rooms or AEC-sharing across multiple processors
  • Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings
  • 2-line VoIP with an internal web interface allowing IT personnel to configure VoIP parameters without design file access or integrator involvement
  • PSTN connection (RJ-11) for worldwide POTS/analog telephone systems
  • USB connection facilitates easy integration with PC soft codecs
  • Dante audio networking supports 64 x 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones
  • Bose AmpLink port provides 8-channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose amplifiers
  • Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity
  • GPIO (5 in/5 out) for external connections including microphone pushbuttons or driving microphone LEDs
SPECIFICATIONS
  • Signal Processor : 32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz
  • Dynamic Range : > 115 dB A-weighted 20 Hz – 20 kHz, analogy input to analog output
  • Output Channels : 8 balanced, line level
  • Frequency Response : 20 Hz to 20 kHz (+0.3 dB/-0.1 dB)
  • Input Channels : 12 balanced, mic/line level
  • PC Configuration Software : ControlSpace Designer software version 5.5 or later
