FEATURES

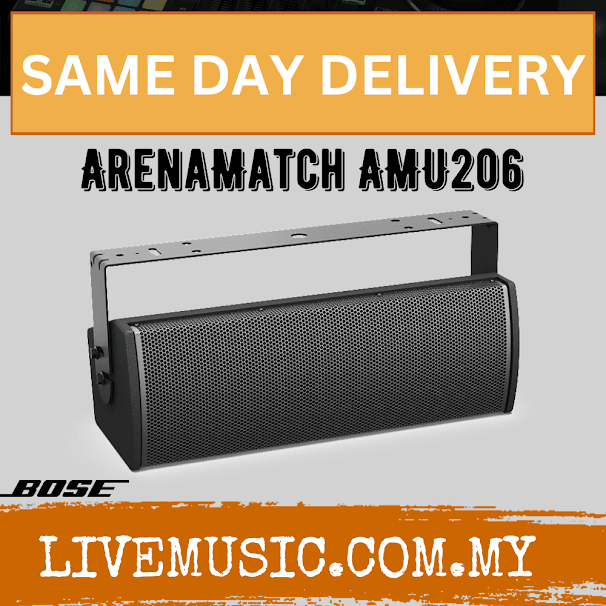

Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
Deploy to provide high-level foreground music in any outdoor venue
Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded cover to protect inputs
Adapt to a variety of configurations — all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for each transducer for more consistent frequency and polar response
Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSPs
Mount easily with included stainless-steel U-bracket; rear enclosure panel also includes M8 threaded inserts to accept third-party accessory mounting brackets
Provide wide, even coverage with 120° x 60° constant-directivity high-frequency horn, which can be rotated for horizontal or vertical installation
Perform in the most demanding applications with 80 Hz – 16 kHz frequency response and 122 dB maximum peak SPL
Support lowest vocal range with 2x Bose LF6 6.5-inch woofers featuring extended-excursion voice coil, which extends response to 80 Hz
Applications
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
SPECS
Technical Summary
Frequency Response (+/-3 dB)
90 Hz to 16 kHz
Nominal Coverage Pattern (H x V)
120° x 60°
Power Handling, peak
800W
Maximum SPL @ 1m
114 db Free Field
116 db Wall/Celling
Nominal Impedance
8 ?
Frequency Range (-10 dB)
80 Hz to 16 kHz
Power Handling, long-term continuous
200 W
Sensitivity
90 db Free Field
92 db Wall/Ceiling
Maximum SPL @ 1m, peak
120 db Free Field
122 db Wall/Ceiling
