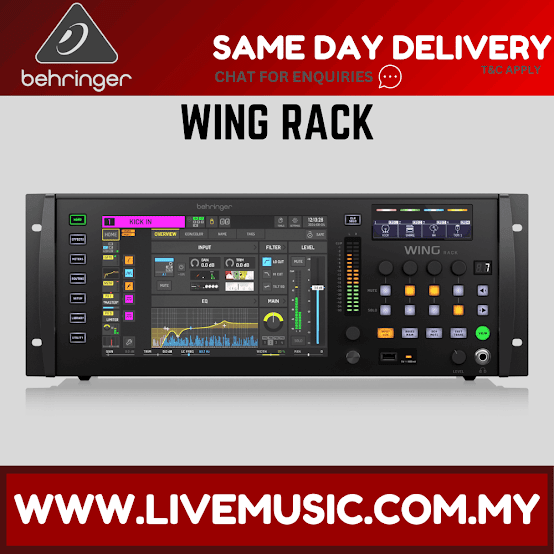

The Behringer WING Rack packs the processing power, channel count, effects, expansion slots, and digital I/O of the full-size WING console into a space-saving rackmountable unit. That said, the WING Rack supplements its near-limitless digital connectivity with 24 award-winning Midas Pro preamps, making it an ideal all-in-one solution, even without a separate stage box. You get full access to all the WING Rack’s functions and parameters from its 10.1-inch capacitive touchscreen, or you can take command via your mobile device or desktop. What’s more, the intuitive Sources paradigm enables you to focus on your source audio rather than the nuts and bolts of your mix. You can record up to 64 channels directly to dual SD cards, use optional expansion cards to attain Dante support, or deploy the WING Rack’s built-in 48-in/48-out USB audio interface to record straight to your DAW. Furthermore, IEM users will appreciate the WING Rack’s four additional rear-panel stereo outputs and high-performance headphone amplifiers. Complete with 16 true-stereo processors with Standard and Classic modeled effects, the WING Rack is a top-shelf digital mixer that will elevate the capabilities of any small-scale live sound setup.
FEATURES
- Boasts identical processing power, channel count, effects, expansion slots, and digital I/O to the full-size WING console
- 48-stereo-channel digital mixer with 40 stereo input processing channels and 8 stereo aux channels
- 28 stereo buses — 16 stereo aux buses, 8 stereo matrices, and 4 stereo mains
- 10.1-in. capacitive touchscreen provides full access to all features and parameters — no tablet required
- A suite of external remote control software facilitates offline mixing on mobile and desktop
- 24 Midas Pro mic preamps and 8 Midas outputs ensure you capture high-quality sound
- 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals
- AES50 networks are compatible with Midas M32 and Behringer X32 mixers
- 32-channel StageConnect interface for personal monitoring or analog I/O boxes
- Includes AES/EBU stereo digital I/O, a headphone connector, MIDI I/O, and GPIO ports
- 4 additional rear-panel stereo outputs with high-performance headphone amplifiers are tailor-made for IEM applications
- Compatible with Behringer and Midas digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32
- WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards
- Optional expansion cards supply Dante support
- Built-in 48-in/48-out USB audio interface
- Sources put the emphasis on your source audio rather than on your inputs and channels
- Apply names, icons, and colors to each Source for at-a-glance identification
- Each channel can be either mono, stereo, or mid-side — no channel linking required
- 16 true-stereo processors with effects from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, elysia, and Empirical Labs
- Space-saving 4U rackmount form factor
SPECIFICATIONS
-
Type:Digital Mixer
-
Channels:48 Stereo
-
Inputs - Mic Preamps:24 x XLR-1/4" combo (mic/line)
-
Phantom Power:Yes
-
Outputs - Main:8 x XLR
-
Inputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
-
Outputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
-
Send/Return I/O:8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
-
Busses/Groups:8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
-
Inserts:Dual Inserts per Bus, FX Insert Slot
-
MIDI I/O:In/Out
-
Data I/O:2 x Ethernet (control/audio network)
-
Headphones:4 x 1/4"
-
USB:1 x Type B, 1 x Type A
-
Computer Connectivity:USB 2.0, 24-bit/48kHz (48 x 48)
-
Remote:1 x 1/4" (GPIO 1-2), 1 x 1/4" (GPIO 3-4)
-
I/O Expansion Slots:1 x Expansion Port (24-bit/48kHz)
-
A/D Resolution:Up to 24-bit/192kHz
-
EQ Bands:6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
-
Effects:8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
-
Signal Processing:Full Dynamics Processing
-
DAW Control:Yes (HUI, Mackie)
-
Screen:10" Capacitive Touchscreen
-
Storage:2 x SD Card Slot (dual 32 track max)
-
Rackmountable:Yes, 4HU
Dimension Packaging Weight : 42.0 kg
