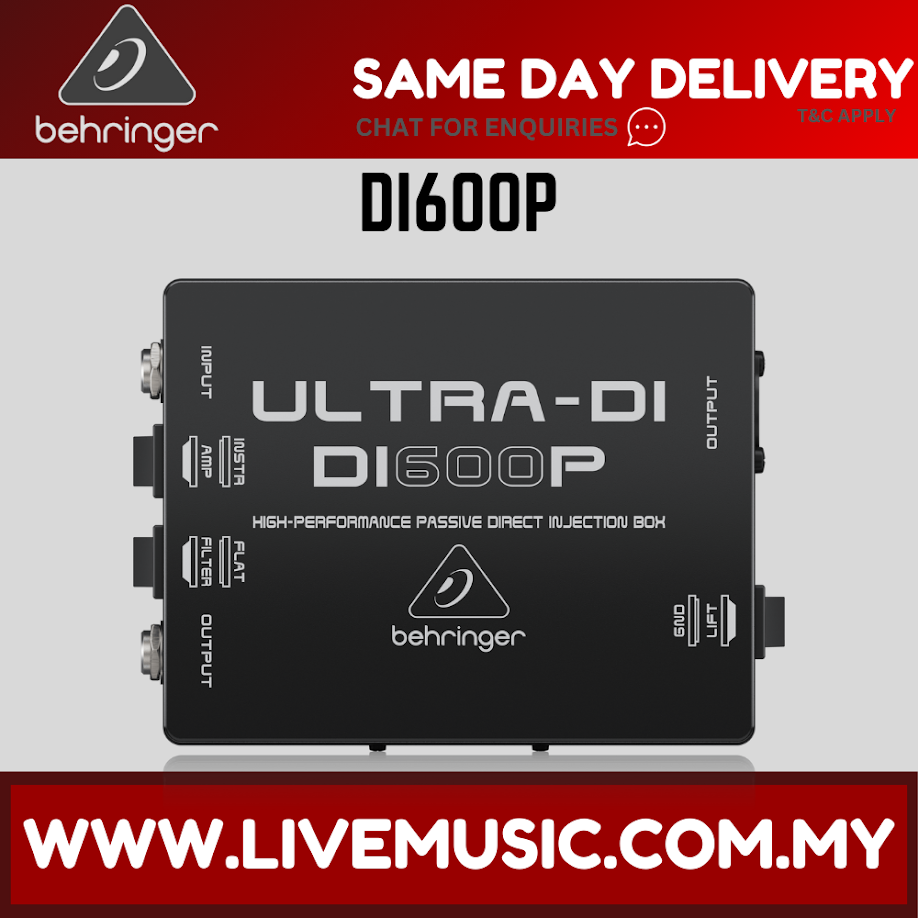

This professional, multi-purpose direct injection box is designed for both stage and studio use, providing accurate impedance and signal matching for the direct connection of instruments to mixers and amplifiers. It delivers an ultra-flat frequency response thanks to the renowned BEHRINGER OT-2 transformer, ensuring clean and transparent signal reproduction. The unit supports direct connection to speaker outputs with power handling of up to 3,000 watts.
A Ground Lift switch is included to eliminate common ground loop issues, while an integrated filter switch helps reduce unwanted hiss and buzz. The Thru/Out jack allows the unbalanced signal to be sent to an onstage amplifier, while the balanced signal is routed to the mixer. Equipped with ¼” TRS and gold-plated XLR connectors, the unit is housed in an ultra-rugged, road-ready metal enclosure and is designed and engineered in Germany.
SPECIFICATIONS:
• Input Connections: 1 x 1/4" TS phone
• Output Connectors: 1 x XLR, 1 x 1/4" TS phone
• Input Level: Not specified by manufacturer
• Output Level: -20dB
• Controls: Ground-lift switch, Instrument or amplifier selector, Low pass filter switch
• Frequency Response: 40Hz to 20kHz, -3dB
• Noise: Not specified by manufacturer
• Power: Passive
• Dimensions: 5" x 3 3/4" x 1 7/16"
• Weight: 0.44 lbs
• Specialties: 110:1 impedence ratio input to output
• Package Weight: 0.745 lb
• Box Dimensions: 6.15 x 5.75 x 1.8"
