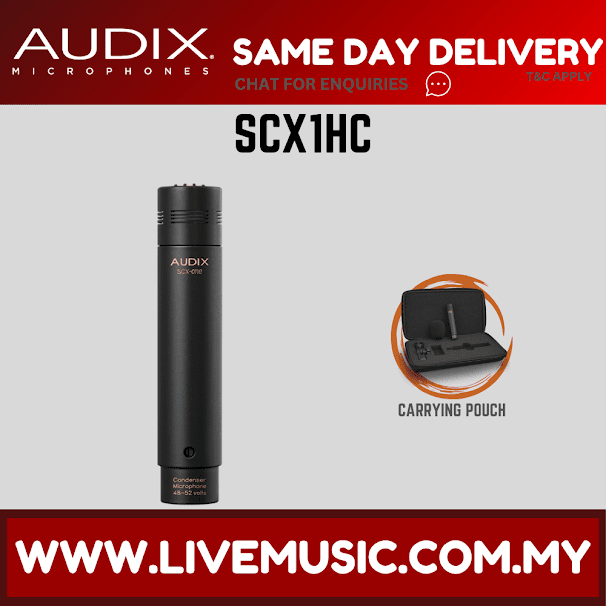

The SCX1-HC Studio Condenser Microphone from Audix offers a versatile condenser microphone system that can be used for vocal, general instrument, and ambiance capturing applications. When used near monitors and speakers, the hypercardioid polar pattern provides maximum signal rejection at the off-axis sections of the microphone head, providing a low noise floor and high gain-before-feedback response. Transformerless circuitry and surface mount technology provide a compact profile and quiet signal response with a low noise floor. The microphone's high sensitivity and wide frequency response are suitable for use with vocals, guitar, strings, drums, percussion, overhead cymbals, and similar sounds. A high SPL rating of 130 dB enables the capsule to accurately pick up transient (peaking) signal without noise caused by distortion overload. The package includes an external foam windscreen for reducing wind, sibilance, and pop noise, a nylon molded snap-on clip, and a foam lined wooden case.
Hypercardioid Polar Pattern
The hypercardioid polar pattern provides maximum signal rejection at the off-axis sections of the microphone head, providing a low noise floor and high gain-before-feedback response.
Surface Mount Technology
Surface mount technology provides a small, compact profile for quick, easy, and unobtrusive microphone placement.
Transformerless Design
Transformerless output circuitry results in high signal to noise ratio and high signal output.
Specs
Microphone
| Form Factor |
Stand/Boom Mount |
| Sound Field |
Mono |
| Capsule |
Condenser |
| Diaphragm |
0.83" / 21 mm |
| Polar Pattern |
Hypercardioid |
| Orientation |
End Address |
| Circuitry |
Solid-State |
| High-Pass Filter |
None |
| Tone Adjustment |
None |
| Indicators |
None |
| On-Board Controls |
None |
| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
40 Hz to 20 kHz |
| Maximum SPL |
130 dB SPL |
| Impedance |
200 Ohms |
| Sensitivity |
17 mV/Pa at 1 kHz |
| Dynamic Range |
116 dB |
| Signal-to-Noise Ratio |
80 dB |
| Equivalent Noise Level |
14 dB A-Weighted |
Connectivity
| Output Connectors (Analog) |
1 x XLR 3-Pin (on Mic) |
Power
| Operating Voltage |
48 to 52 V (Phantom Power) |
Physical
| Color |
Black |
| Mounting |
Mic Clip/Stand Adapter (Included) |
| Construction Material |
Brass |
| Dimensions |
ø: 0.83 x L: 4.09" / ø: 21 x L: 104 mm |
| Weight |
4.02 oz / 114 g |
Packaging Info
| Package Weight |
1.15 lb |
| Box Dimensions (LxWxH) |
9.55 x 5.9 x 3.9" |
