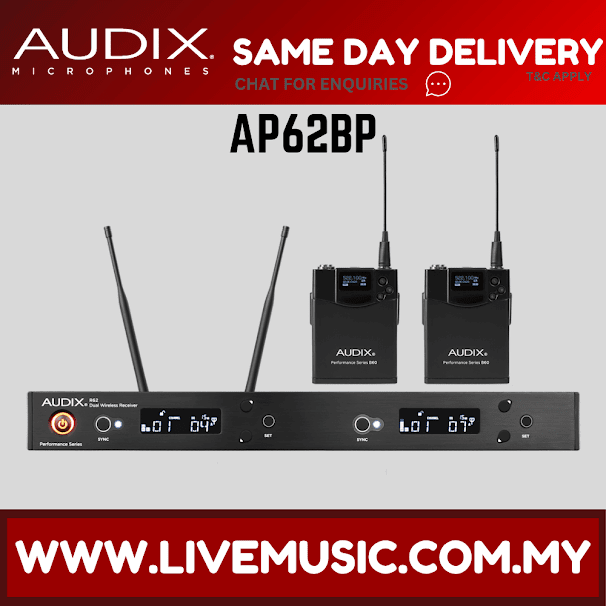

Whether you are a vocalist, musician, performer or presenter, the Audix Performance Series is designed to take the mystery out of wireless with a professional-grade system that is simple, reliable and versatile.
Receivers
Available in single and dual rack mountable models, the receivers for the Audix Performance Series feature a contemporary design, rugged construction and intuitive menus.
Dual Channel R62 Receiver
Dual channel system housed within a durable rack mount receiver. Operates with one set of antennas and one power supply.
Bodypack B60 Transmitters
The Audix Performance Series body pack system is very contemporary in design, rugged, comfortable to wear and easy to use.
• 64 MHz Wide spectrum transmitter (works with all Performance Series receivers)
• Precision metal housing
• Lightweight, slim design
• Modular antenna design
• May be used with lavalier, head worn and instrument mics as well as electric guitar and bass
• AF and RF gain control
• High contrast LCD display with group, channel and battery indicator
• Soft mute switch
• 10 Hour Run Time - AA batteries
Audix AP62 BP Specifications
- R62 Receiver: Frequency Range
- 522 MHz - 586 MHz
- R62 Receiver: Bandwidth
- 64 MHz
- R62 Receiver: Compatible Systems
- 16 Compatible System Operation
- R62 Receiver: Switchable Frequencies
- 207 Preset Frequencies
- R62 Receiver: Manual Mode
- 2560 frequencies (spaced 25 KHz apart)
- R62 Receiver: Frequency Response
- 45 Hz - 18 kHz
- R62 Receiver: Signal to Noise Ratio
- >105 dB
- R62 Receiver: Compander System
- 2:1
- R62 Receiver: Pilot Tone
- 32 kHz
- R62 Receiver: Receiving System
- Dual Tuner, True Diversity
- R62 Receiver: Signal-to-Noise Ratio
- 112 dB at 30 kHz deviation (IEC-weighted)
- R62 Receiver: Total Harmonic Distortion
- <= 4% (10 kHz deviation at 1 kHz)
- R62 Receiver: Sensitivity
- 5 dB MuV (S/N 60 dB at 25 kHz deviation, IEC-weighted)
- R62 Receiver: Intermediate Frequency
- 110.6 MHz, 10.7 MHz
- R62 Receiver: Audio Output (AF=0)
- 1/4" 1100 mV (at 1 kHz,)
10 kHz deviation, 10 k Ohm load
Balanced: 2200 mV (at 1 kHz,)
10 kHz deviation, 600 Ohm load
- R62 Receiver: Output Connectors
- 1/4", XLR
- R62 Receiver: Nominal / Peak Deviation
- Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 3 dB-steps)
- R62 Receiver: Adjacent Channel Rejection
- >65 dB
- R62 Receiver: Intermodulation Spacing
- >65 dB
- R62 Receiver: Image Rejection
- >70 dB
- R62 Receiver: Range
- 300' / 91.44m
- R62 Receiver: Power Supply
- 100 - 240V / 50 - 60 Hz, 12V DC, 1A
- B60 Transmitter: RF Power Output
- 10 mW, 40 mW
- B60 Transmitter: Frequency Bandwidth
- 64 MHz
- B60 Transmitter: Gain Controls
- 0 db, -6 dB, -12 dB
- B60 Transmitter: Input Connector
- 3-Pin mini-XLR
- B60 Transmitter: Battery (not included)
- 2 AA 1.5 V
- B60 Transmitter: Current Consumption
- 110 mA typical
- B60 Transmitter: Battery Life
- Approximately 10 hours (depending on battery type and usage)
- B60 Transmitter:Max Sound Pressure Level
- (Approx.) 128 db to140 dB (depending on mic)
- Dimensions
- R62 Receiver (W x D x H): 406 x 209 x 44mm / 15.98 x 8.23 x 1.73"
B60 Transmitter (W x L x H): 67 x 90 x 17mm / 2.64 x 3.54 x 0.67"
- Weight
- R62 Receiver: 1.92lbs / 0.87kg
B60 Transmitter: 3.0 oz / 85 g (without battery)
