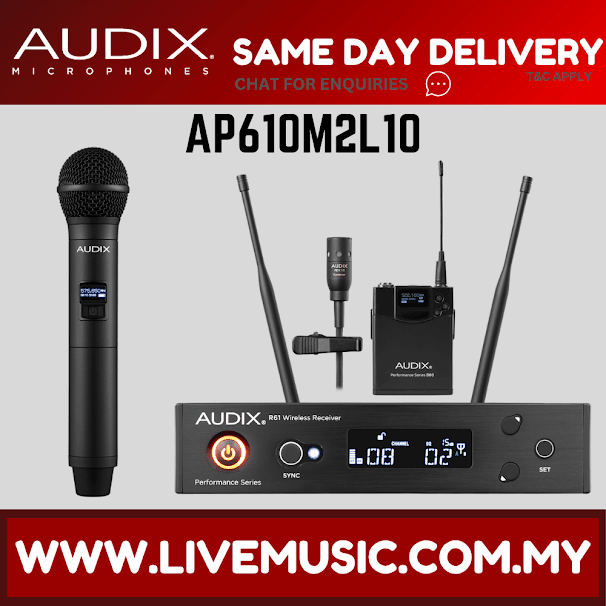

A professional true diversity lavalier wireless system featuring the Audix OM2 and B60 bodypack transmitter, coupled with the ADX10 cardioid miniature condenser microphone.

The OM2, our best-selling vocal microphone, has a slight bass proximity, a tailored mid-range and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.

The ADX10 is a lightweight, low profile mic designed for lavalier applications such as speech, presentation and theatrical production. With the ability to accurately capture and reproduce vocals from a comfortable distance of 4-8 inches, the ADX10 has a natural sound with exceptional response that is resistant to feedback and easy to use.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include rackmount kit for mounting two systems in one rack space, active directional antennas and antenna distribution system for up to four systems (4 channels).

Frequency Range

522 MHz - 586 MHz

Features

R61 True Diversity Receiver

• 64 MHz Wide spectrum tuning receiver
• 207 Pre-coordinated frequencies for quick, easy and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• 2560 tunable frequencies

H60 OM2 Handheld Microphone

• 64 MHz Wide spectrum transmitter with OM2 dynamic capsule
• Durable metal housing
• 14 Hour run time - AA batteries

B60 L10 Bodypack Transmitter

• 64 MHz Wide spectrum transmitter with ADX10 lavalier
• Durable metal housing
• 14 Hour run time - AA batteries

What’s In The Box?

• 1 x R61 64 MHz True Diversity Receiver
• 1 x H60 Handheld Transmitter with OM2 Capsule Module
• 1 x B60 Bodypack Transmitter with ADX10 Lavalier Mic
• 2 x Antennas
• 1 x Audio Cable
• 1 x Clip
• 1 x Pouch
• 2 x AA Batteries
• 1 x Carrying Case
• 1 x Power Supply
• 1 x User Guide
• 1 x Rackmount Hardware
• 2 x BNC Cables

R61/R62

Frequency Range: 522 MHz – 586 MHz
Bandwidth: 64 MHz
Compatible Systems: 20 Compatible system operation
Switchable Frequencies: 207 Preset frequencies
Manual Mode: 2560 Frequencies (spaced 25 kHz apart)
Frequency Response: 45 Hz – 18 kHz
Compander System: 2:1
Pilot Tone: 32 kHz
Receiving System: Single tuner, true diversity
Signal-to-Noise Ratio: 112 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion: ≤.4% (33 kHz deviation at 1 kHz)
Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0):

• Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
• 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load

Output Connectors: 1/4", XLR

Audio Level Adjust:

• Balanced: -12 to +9 dBu
• Line: -24 to +4 dBu (adjustable in 6 dB-steps)

Range: 450', (137 M)

Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions:

• 205 mm (W) x 206 mm (D) x 44 mm (H)
• 406 mm (W) x 209 mm (D) x 44 mm (H) (R62)

Net Weight:

• 2.43 lbs. / 1.1 kg
• 4.65 lbs. / 2.12 kg (R62)

B60

RF Power Output: 10 mW, 40 mW
Frequency Bandwidth: 64 MHz
Gain Controls: 0 db, -6 dB, -12 dB
Input Connector: 3 pin mini-XLR
Batteries Included: 2 AA 1.5 V
Current Consumption: 110 mA typical
Battery Life: 14 hours
Input Impedance:

• Mic: 10 kohm,
• Line: 1 Mohm

Max Sound Pressure Level: 128 dB to140 dB (depending on mic)

Dimensions:

• 67 mm (W) x 90 mm (L) x 17 mm (D)
• 2.6" (W) x 3.5" (L) x .67" (D)

Net Weight: 3.0 oz / 85 g (without battery)

H60

RF Power Output: 10 mW, 40 mW
Frequency Bandwidth: 64 MHz
Gain Controls: 0 dB, -6 dB, -12 dB
Input Connector: n/a
Batteries Included: 2 AA 1.5 V
Current Consumption: 110 mA typical
Battery Life: 14 hours
Input Impedance: n/a
Max Sound Pressure Level: >140 dB (depending on capsule)
Dimensions: 2.1” diameter body, 10.43” (L),
53 mm diameter body, 265 mm (L)
Net Weight: 11.0 oz / 312 g (without battery)

H60/OM2

Type: Dynamic
Polar Pattern: Hypercardioid
Frequency Response: 50Hz - 16kHz
Impedance: 290 ohms
Sensitivity: 1.6 mV / Pa @ 1k

ADX10

Transducer Type: Pre-Polarized Condenser
Frequency Response: 50 Hz - 18 kHz
Polar Pattern: Cardioid
Output Impedance: 800 ohms
Sensitivity: 5 mV / Pa @ 1k
Equivalent Noise Level: <29 dB (A-weighted)
Signal to Noise Ratio: >65 dB
Maximum SPL: ≥120 dB
Power Requirements: 9-52 V phantom
Connector: Shielded 3’ terminating to a miniature 3 pin Female XLR connector
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials / Finish: Machined Brass / Black Finish
Weight: 21 g / 0.74 oz
Length: 25 mm / .98 in
