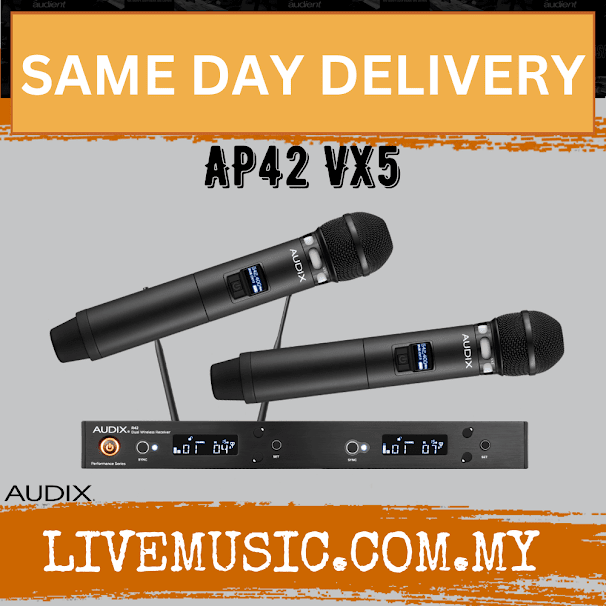

The AP42 Performance Series Dual-Channel Handheld Wireless System from Audix includes the R42 2-channel diversity receiver and two H60/VX5 handheld transmitters. The R42 receiver operates on a frequency range of 522 to 554 MHz and offers one-touch auto scan searches for clear channel. The unit features an internal antenna combiner for dual antenna operation. It comes in a 19" rackmount chassis and includes BNC cables for front mounting antennas. Thanks to the one-touch sync function, this receiver easily links to the H60 handheld transmitters via infrared beam.
Each handheld transmitter comes with the VX5 condenser supercardioid microphone capsule. These transmitters feature a slim-line body design and durable metal housing and are compact, well-balanced, and comfortable to hold. They come with a soft mute switch which also serves as an on/off switch when needed. The transmitter units also feature a high-contrast LCD display with group, channel, and battery indicator.
Each VX5 is a multi-purpose, professional vocal condenser microphone designed for live stage, studio, and broadcast applications. With an ability to duplicate studio quality sound on stage, these microphones have a smooth and detailed frequency response, resistance to feedback and can handle high SPLs of more than 140 dB without distortion.
The Audix R42 Kit-A is a Performance Series dual-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 522 to 554 MHz frequency band. Use two wireless microphones (available separately) from up to 300' away. One-touch sync and auto scan functions provide simple and efficient setup.
The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R42 Kit-A ships with two antennas, two BNC cables, an audio cable, one power supply, and a rackmount kit.
Incorporate up to eight systems to use 16 unique channels simultaneously
Dual-channel receiver supports two wireless microphones
32 MHz wide spectrum tuning
106 pre-coordinated frequencies
High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
One-touch sync via infrared
One-touch scan eliminates inefficient manual tuning
Ground-lift switch helps eliminate ground loops or hum
Metal strain relief for power cable
Adjustable AF and RF level
Selectable lock function prevents the transmitter from being accidentally muted or powered off
Audix H60 VX5 64 MHz Handheld Microphone Transmitter with VX5 Supercardioid Condenser Capsule (522 to 586 MHz)
The Audix H60 VX5 is a Performance Series handheld microphone transmitter with VX5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The supercardioid condenser capsule yields enhanced off-axis rejection, a 40 Hz to 16.5 kHz frequency response, and a high maximum SPL of approximately 140 dB.
A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30 mW RF output power. Two supplied AA batteries power the H60 VX5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
High-contrast LCD shows group, channel, frequency, and battery status
Durable tour-worthy metal housing
Modular capsule design allows easy swapping between condenser and dynamic capsules (available separately)
Convenient soft mute button for quick on/off switching
Two supplied AA batteries provide up to 14 hours of run time
Selectable 10/30mW RF power output
Three selectable gain settings—0 dB, -6 dB, and -12 dB
Dent-resistant steel mesh grille
Includes mic clip and pouch
| Frequency Band | 522 to 554 MHz |
| Bandwidth | 32 MHz |
| # Of Simultaneous Systems | Up to 8 |
| Switchable Frequencies | 106 pre-coordinated frequencies |
| Wireless Range | Up to 300' / 91 m |
| Antenna Connector | 2 x BNC (8 VDC, 150 mA) |
| Outputs | 2 x XLR 3-pin balanced 2 x 1/4" TS unbalanced |
| Audio Output Level | XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain |
| Audio Level Control | -12 to +9 dB in 3 dB steps |
| Frequency Response | 45 Hz to 18 kHz |
| Compander | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, antenna diversity |
| Signal to Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion (THD) | ≤0.7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Power Requirement | 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A |
| Dimensions | 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm |
| Weight | 4.8 lb / 2.2 kg |
| Type | Condenser |
| Polar Pattern | Supercardioid |
| Frequency Response | 40 Hz to 16.5 kHz |
| Maximum SPL | ≥140 dB |
| Impedance | 150 Ohms |
| Sensitivity | 5 mV/Pa at 1 kHz |
| Off-Axis Performance | Rejection >20 dB |
| Equivalent Noise Level | 26 dBA |
| Signal to Noise Ratio | 68 dB |
| RF Power Output | 10/30 mW |
| Bandwidth | 64 MHz |
| Gain Adjustment | 0 dB, -6 dB, -12 dB |
| Battery Life | Approximately 14 hours |
| Current Consumption | 110 mA typical |
| Power Requirement | 2 x AA 1.5 V batteries |
| Dimensions | 2.1 x 10.4" / 53 x 265 mm |
| Weight | 11 oz / 312 g without batteries |
