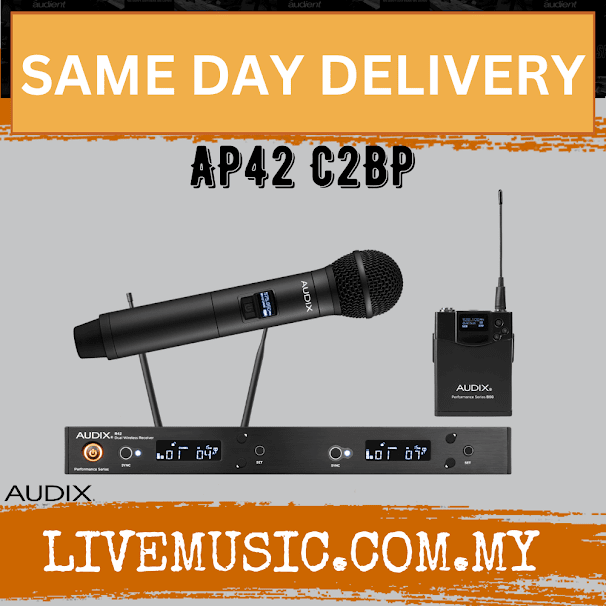

A dual-channel system that combines the OM2 handheld transmitter with the ADX10 cardioid lavalier system.

This is a very efficient and cost-effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic. The package is ideally suited for presentations, meetings, or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.

Audix AP42 C2BP Features

• 32 MHz wide spectrum tuning receiver
• 106 pre-coordinated frequencies
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to the receiver via infrared beam
• 64 MHz wide spectrum handheld transmitter with OM2 dynamic capsule module
• 64 MHz wide spectrum bodypack transmitter with ADX10 lavalier microphone
• Both transmitters can run for up to 14 hours on AA batteries

• R42 Receiver
  • Frequency Range
    • A: 522MHz - 554MHz
    • B: 554MHz - 586MHz
  • Bandwidth: 32 MHz
  • Compatible Systems: up to 8 systems simultaneous use
  • Switchable Frequencies: 106 pre-coordinated frequencies
  • Frequency Response: 45Hz - 18,000Hz
  • Compander System: 2:1
  • Pilot Tone: 32kHz
  • Receiving System: single tuner, antenna diversity
  • Signal-to-Noise Ratio: 105dB at 30kHz deviation (A-weighted)
  • THD: ≤0.7% (33 kHz deviation at 1 kHz)
  • Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
  • Audio Output (Level=6)
    • Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
    • 1/4": -18 dbv @ 25 kHz deviation, 10 ohm load
  • Output Connectors: 1/4", XLR
  • Audio Level Adjustment: -12 to +9 in 3dB steps
  • Range: 300 ft (91m)
  • Power Supply: 100 - 240 V / 50 - 60 Hz, 12 V DC, 1A
  • Dimensions (WxDxH): 15.98" x 8.23" x 1.73"
  • Weight: 4.75 pounds
• H60 Handheld Transmitter
  • RF Power Output: 10 mW, 30 mW
  • Frequency Bandwidth: 64 MHz
  • Gain Controls: 0dB, -6dB, -12dB
  • Batteries Included: 2AA 1.5V
  • Current Consumption: 110mA typical
  • Battery Life: approx. 14 hours
  • Max. SPL: >140 dB (depending on capsule)
  • Dimensions: 2.1" diameter body x 10.43" length
  • Weight: 11 oz (without battery)
• B60 Bodypack Transmitter
  • RF Power Output: 10mW, 30mW
  • Frequency Bandwidth: 64MHz
  • Gain Controls: 0dB, -6dB, -12dB, -24dB
  • Input Connector: 3 pin mini XLR
  • Batteries Included: 2 AA 1.5V
  • Current Consumption: 110mA typical
  • Battery Life: approx. 14 hours
  • Input Impedance
    • Mic: 10kΩ
    • Line: 1MΩ
  • Max. SPL: approx. 128-140dB (depending on microphone)
  • Dimensions (WxLxD): 2.6" x 3.5" x 0.67"
  • Weight: 3 oz
