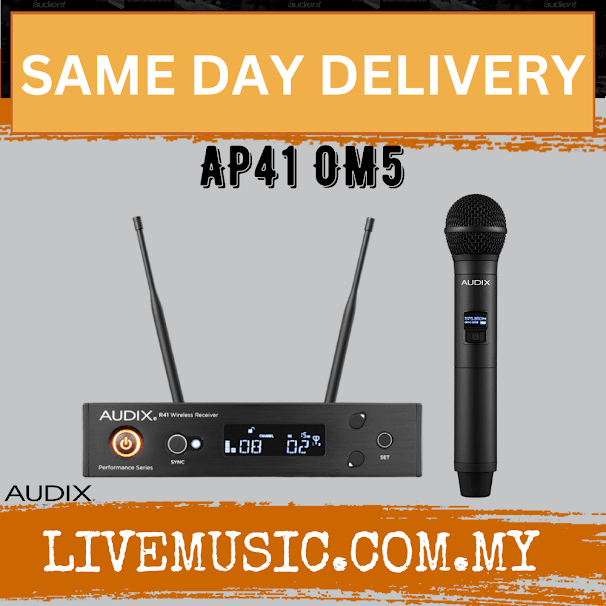

A high-performance handheld diversity wireless system featuring the legendary Audix OM5.

Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios, and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback, and the ability to handle SPLs in excess of 144 dB without distortion.

Available Frequency Bands

• A = 522 MHz – 554 MHz
• B = 554 MHz – 586 MHz

Audix AP41 OM5 Features

• 32 MHz Wide spectrum receiver
• 64 MHz Wide spectrum transmitter with OM5 dynamic capsule

• R41 Receiver
  • Frequency Range: 522 MHz – 554 MHz / 554 MHz - 586 MHz
  • Bandwidth: 32 MHz
  • Compatible Systems: 16 Compatible system operation
  • Switchable Frequencies: 106 Preset frequencies
  • Frequency Response: 45 Hz – 18 kHz
  • Compander System: 2:1
  • Pilot Tone: 32 kHz
  • Receiving System: Single tuner, diversity
  • Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
  • Total Harmonic Distortion: ≤.7% (33 kHz deviation at 1 kHz)
  • Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
  • Audio Output (AF=0)
    • Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
    • 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
  • Output Connectors: 1/4", XLR
  • Audio Level Adjust
    • Balanced: -12 to +9 dBu
    • Line: -24 to +4 dBu (adjustable in 3 dB-steps)
  • Range: 300', (91 M)
  • Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
  • Dimensions (WxDxH)
    • 205x206x44mm
    • 406x209x44mm
  • Net Weight
    • 1.92 lbs (870g)
    • 4.4 lbs (2kg)
• H60 Handheld Transmitter
  • RF Power Output: 10 mW, 40 mW
  • Frequency Bandwidth: 64 MHz
  • Gain Controls: 0 dB, -6 dB, -12 dB
  • Batteries Included: 2 AA 1.5 V
  • Current Consumption: 110 mA typical
  • Battery Life: 14 hours
  • Max SPL: >140 dB (depending on capsule)
  • Dimensions: 2.1” (53mm) diameter body, 10.43” (265mm) L
  • Net Weight (without battery): 11oz (312g)
