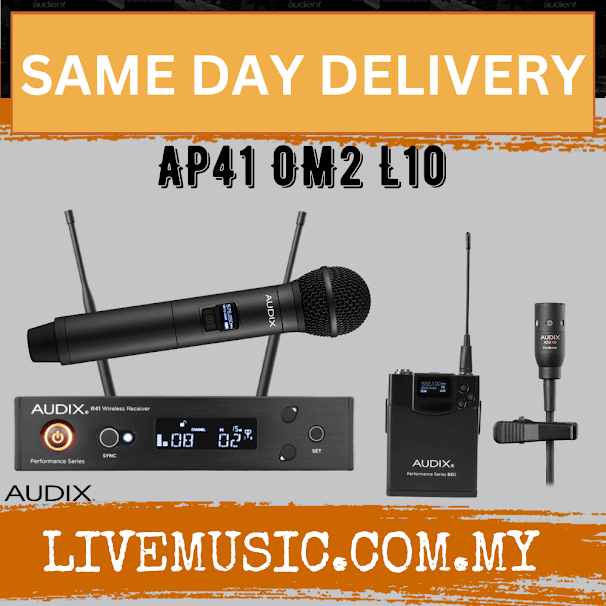

A combination system that allows for the flexibility of using either the OM2 handheld transmitter or the bodypack system with the ADX10 cardioid lavalier microphone. This package is designed for rental companies, hotels, presentation events, education, and applications where only one transmitter would be required at a time. (Please note: it is not possible to use both transmitters simultaneously – see the AP42 C210 combo pack where both transmitters can be used at the same time.)
Audix AP41 OM2 L10 Features
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies on the receiver for quick, easy, and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam
- 64 MHz Wide spectrum transmitter
- Transmitter can run for up to 14 hours on AA batteries
- H60 OM2 handheld transmitter is a 64 MHz wide spectrum transmitter with OM2 dynamic capsule with 14 hour run time on AA batteries
-
- Frequency Range
- A: 522MHz- 554MHz
- B: 554MHz - 586MHz
- Bandwidth: 32MHz
- Compatible Systems: up to 16 systems
- Switchable Frequencies: 106 pre-coordinated frequencies
- Frequency Response: 45Hz - 18,000Hz
- Compander System: 2:1
- Pilot Tone: 32kHz
- Receiving System: single tuner, antenna diversity
- Signal-to-Noise Ratio: 105dB at 30kHz deviation (A-weighted)
- THD: ≤0.7% (33 kHz deviation at 1 kHz
- Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
- Audio Output (Level=6)
- Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
- 1/4": -18 dbv @ 25 kHz deviation, 10 ohm load
- Output Connectors: 1/4", XLR
- Audio Level Adjustment: -12 to +9 in 3dB steps
- Range: 300 ft (91 m)
- Power Supply: 100 - 240 V / 50 - 60 Hz, 12 V DC, 1A
- Dimensions (WxDxH): 8.07" x 8.11" x 1.73"
- Weight: 1.92 pounds
- B60 Bodypack Transmitter
- RF Power Output: 10 mW, 30 mW
- Frequency Bandwidth: 64 MHz
- Gain Controls: 0dB, -6dB, -12dB, -24dB
- Input Connector: 3 pin mini-XLR
- Batteries Included: 2 AA 1.5 V
- Current Consumption: 110 mA typical
- Battery Life: approx. 14 hours
- Input Impedance
- Max. SPL: approx. 128 - 140 dB (depending on microphone)
- Dimensions (WxLxD): 2.6" x 3.5" x 0.67"
- Weight: 3 oz (without batteries)
- H60 Handheld Transmitter
- RF Power Output: 10 mW, 30 mW
- Frequency Bandwidth: 64MHz
- Gain Controls: 0dB, -6dB, -12dB
- Input Connector: n/a
- Batteries Included: 2 AA 1.5 V
- Current Consumption: 110 mA typical
- Battery Life: approx. 14 hours
- Max. SPL: >140dB (depending on capusle)
- Dimensions: 2.1" diameter body x 10.43" length
- Weight: 11 oz
