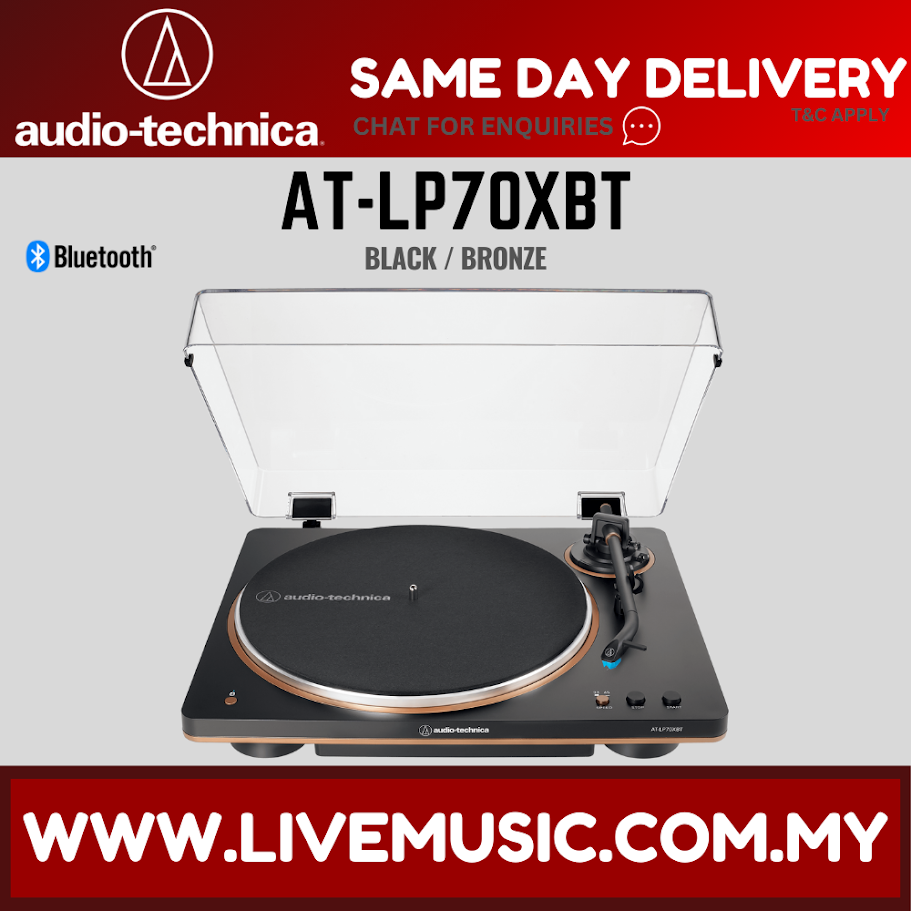

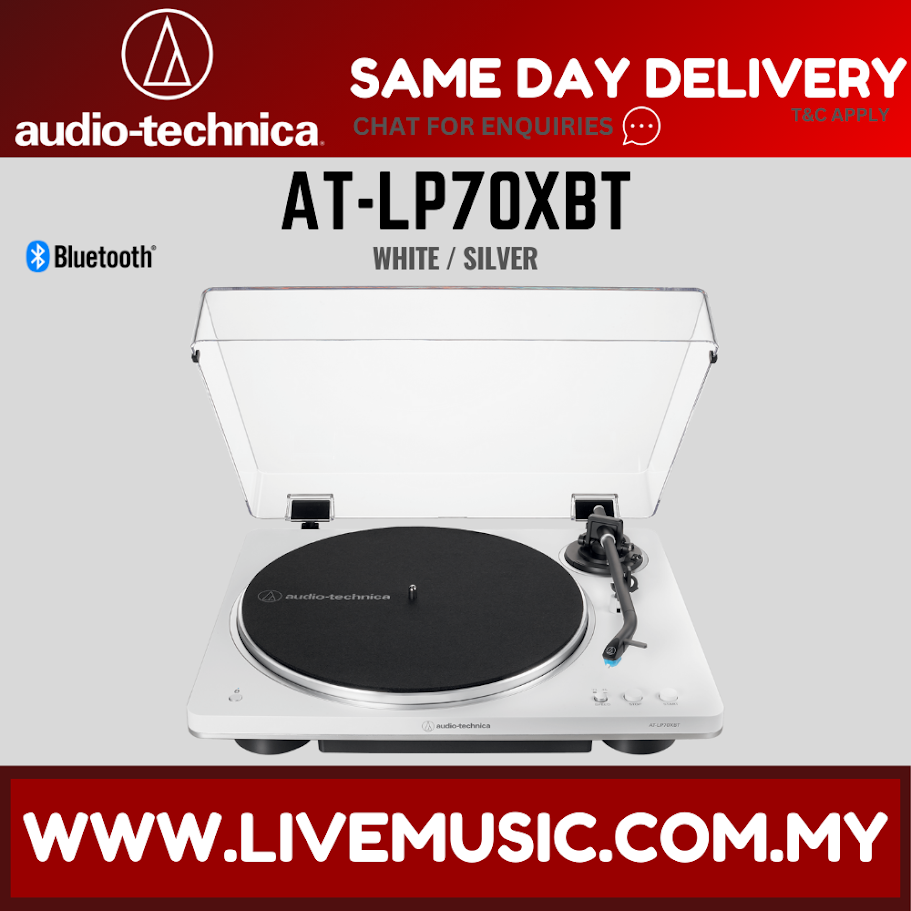

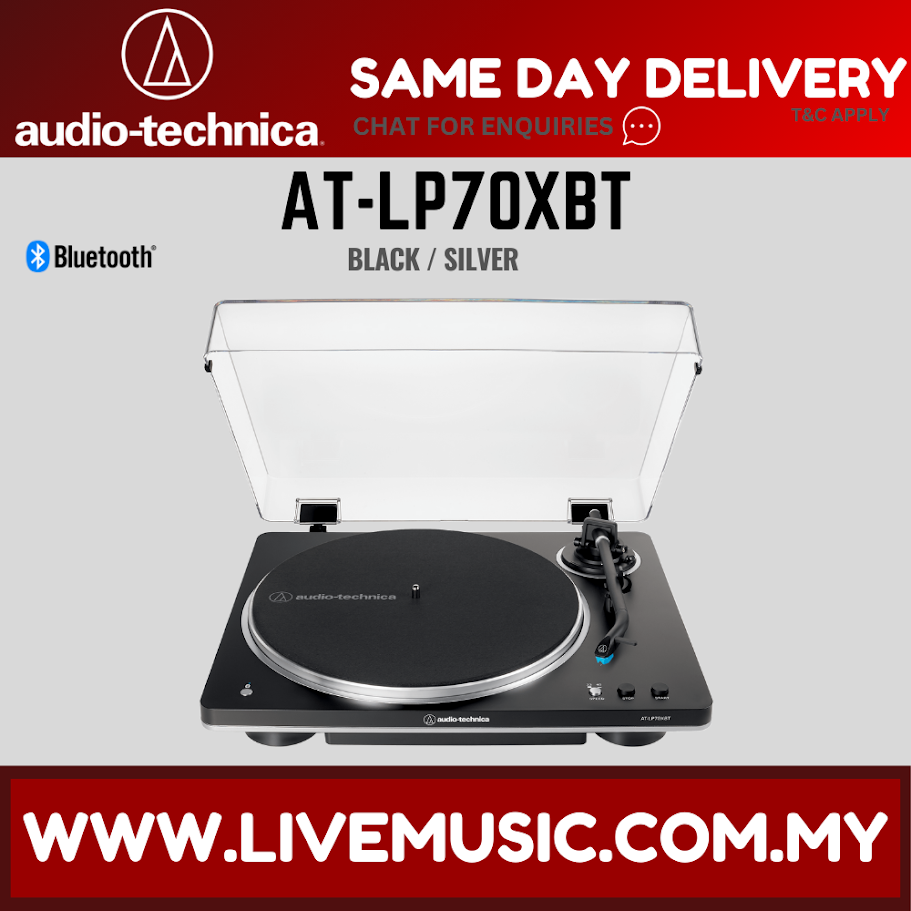

The AT-LP70XBT Automatic Wireless Turntable is the perfect beginner turntable for those beginning their audiophile journey. Combining the experience of warm, analog audio with the convenience of Bluetooth® technology, you can listen to your vinyl over Bluetooth-enabled speakers, headphones, or other devices, including those that support the high-quality Qualcomm® aptX™ Adaptive audio codec. This user-friendly turntable plays both 33-1/3 and 45 RPM records and, in addition to its Bluetooth wireless technology, has a built-in switchable phono preamp that allows the turntable to connect to a home stereo, powered speakers, or another component, with or without a dedicated phono input.
Specifications
| Turntable |
|---|
| Motor |
DC motor |
| Drive Method |
Belt-drive |
| Speeds |
33-1/3 RPM, 45 RPM |
| Turntable Platter |
Die-cast aluminium |
| Wow and Flutter |
< 0.25% (WTD) |
| Signal-to-Noise Ratio |
> 55 dB |
| Cartridge Type |
This product is equipped with an AT-VM95C Dual Moving Magnet Stereo Cartridge. The cartridge cannot be removed. |
| Output Level |
PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
LINE: 252 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain |
36 dB nominal, RIAA equalized |
| Power Consumption |
1.6 W |
| Dimensions |
400 mm (16") × 330 mm (13") × 110 mm (4.3") (W × D × H) |
| Weight |
Approx. 2.9 kg (6.4 lbs) |
| Accessories Included |
• Dust cover
• Felt mat
• Platter (with drive belt)
• Dust cover hinges
• 45 RPM adapter
• RCA audio cable (Approx. 1.0 m (3.3'))
• AC adapter (Approx. 1.5 m (4.9')) |
| AC Adapter |
*Type: FJ-SW1261200500DN
Rated Input Voltage: 100 to 240 V AC
Rated Input Current: 0.4 A max.
Rated Frequency: 50 Hz / 60 Hz
Rated Output Voltage: 12 V DC
Rated Secondary Current: 0.5 A
Cable Length: Approx. 1.5m (4.9') |
| Effective Arm Length |
220 mm (8.7") |
| Overhang |
18 mm (0.71") |
| Tracking Error Angle |
Less than 2.0° |
| Replacement Stylus |
AT-VMN95C (sold separately) |
| Replacement Belt |
AT-LP70X exclusive belt (sold separately) |
| Communication System |
Bluetooth version 5.2 |
| Frequency Band |
2.402 GHz to 2.480 GHz |
| Maximum RF Output |
2.5 mW EIRP |
| Maximum Communication Range |
Line of sight - approx. 10 m (33') |
| Modulation Method |
GFSK, Pi/4DQPSK, 8DPSK |
| Compatible Bluetooth Profile |
A2DP |
| Support Codec |
Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC |
| Notes |
*The included AC adapter may differ depending on the country of sale. Check the rating label on the AC adapter. For details, contact your local Audio-Technica dealer.
For product improvement, the product is subject to modification without notice. |
