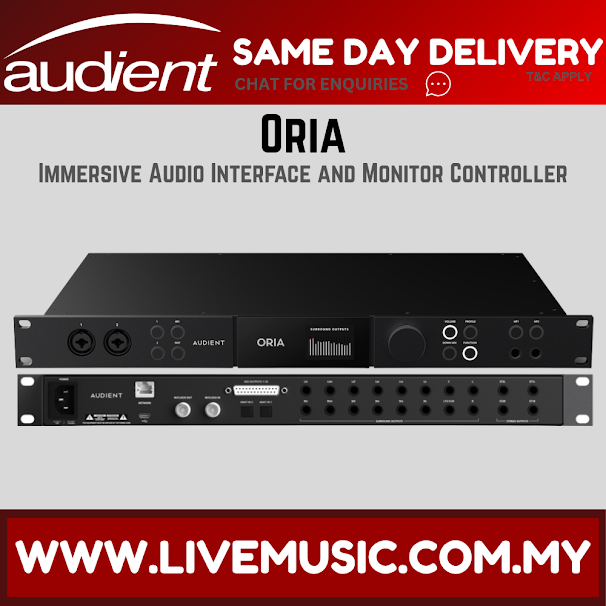

FEATURES

• Supports up to 9.1.6 Speaker Setups
• 2 x 16 Channel Surround Outputs (Analogue & AES)
• 2 x Stereo Line Outputs (Relay Switched)
• 2 x Independent Stereo Headphone Outputs
• 2 x Audient Mic Preamps (Mic / D.I / Line)
• 2 x ADAT Inputs
• Word Clock Input
• Word Clock Output
• ORIA Motion UI
• 24 bit / 96kHz
• USB 2.0 / USB Type-C
• Sonarworks SoundID Reference Measurement Microphone Included
• Optional AoIP Card (Dante) for 16 Input channels

SPECIFICATIONS

• Microphone Inputs
  - Gain: 60dB
  - Max Input Level: +18dBu
  - Crosstalk: <105dB
  - THD+N: 0.0015% / -96dB
  - EIN: -129dB
  - CMRR: -85dB
  - SNR: 100dB
  - Frequency Response: ±0.5dB 20Hz to 40kHz
  - Input Impedance: 1.5kΩ Balanced

• Line Inputs
  - Gain: -10dB to +50dB
  - Max Input Level: +18dBu
  - THD+N: 0.0015% / -96dB
  - Input Impedance: 4.7kΩ Balanced

• D.I / Instrument Input
  - Gain: 60dB
  - Max Input Level: +18dBu
  - THD+N: 0.16%
  - SNR: 100dB
  - Frequency Response: ±0.5dB 20Hz to 40kHz
  - Input Impedance: 370kΩ Unbalanced

• Line Outputs
  - lineup Level: +18dBu
  - THD+N: 0.0006%, -105dB
  - Dynamic Range: 126.5dB
  - Crosstalk: -123dB
  - Frequency Response: ±0.3dB 10Hz to 40kHz
  - Output Impedance: <100Ω Balanced

• Headphone Outputs
  - Lineup Level: +18dBu
  - THD+N: 0.0007% (-103dB)
  - Dynamic Range: 124dB
  - Crosstalk: -115dB
  - Frequency Response: ±0.25dB 10Hz to 40kHz
  - Output Impedance: <50 Ω Unbalanced
  - Max Level @ 30R: 5.47V Peak, 3.87Vrms, 997mW
  - Max Level @ 60R: 7.4V Peak, 5.29Vrms, 912mW
  - Max Level @ 600R: 8.6V Peak, 6.09Vrms, 123mW

• USB-C
  - Connector: USB Type C
  - Included Cable: USB Type-C to Type-C
  - Number of Input Channels: 34 (2x Analogue, 16 Digital, 16 AOIP*)
  - Number of Output Channels: 38 (20 Line Outs, 2x Stereo Headphone Outs, 16x AES)
  - *With AOIP card fitted

• Digital Inputs
  - ADAT 16 Channels: 44.1kHz to 48kHz
  - ADAT 8 Channels (SMUX): 88.2kHz to 96kHz

• Digital Outputs
  - AES Outputs: 16 Audio Channels (8x AES Data Streams)

• Word Clock Input and Output
  - Word Clock: 44.1kHz to 96kHz

• AOIP (Optional Dante Expansion Card)
  - AOIP Inputs: 16 (44.1kHz to 96kHz)

• Power Supply
  - Input Voltage: 85 – 264 VAC
  - Input Frequency: 47 – 63Hz

Dimension Packaging Weight : 5.0 kg
