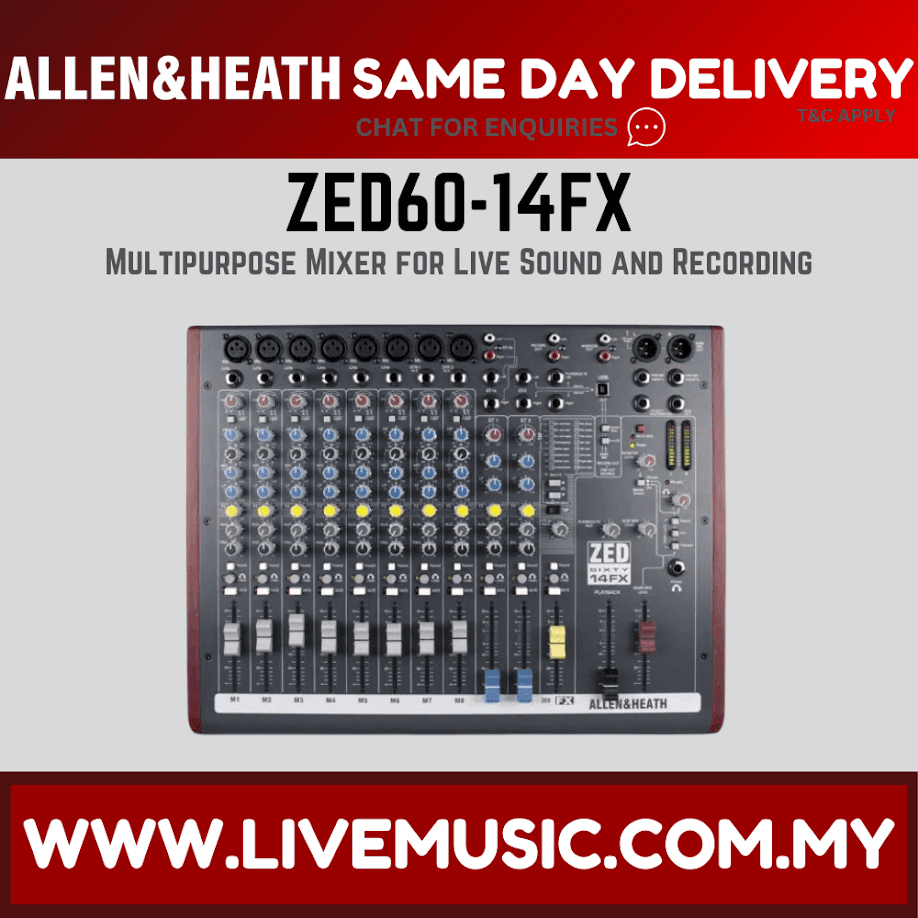

FEATURES

• Adds 4 more channels and solid-feeling 60mm faders to the popular ZED-10FX mixer
• 8 mic/line channels, 2 with guitar DIs that re-create the warmth and character of a classic tube preamp
• 3 stereo channels for keyboards and other stereo sources
• 3-band EQ design with MusiQ for quick, easy optimization of your EQ settings
• High-quality built-in digital effects for polishing your sound
• Stereo USB audio connectivity for capturing quick recordings
• Comprehensive monitoring and effective metering
• Rugged Neutrik XLR and 1/4" connectors

SPECIFICATIONS

• Type:Analog Mixer with USB
• Channels:14
• Computer Connectivity:USB (2 x 2)
• Faders:13 x 60mm
• Inputs - Mic Preamps:8 x XLR
• Phantom Power:8 channels
• Inputs - Line:8 x 1/4", 1 x Dual RCA Stereo, 2 x 1/4" (ST1), 2 x 1/4" (ST2)
• Inputs - Other:2 x 1/4" (USB in L,R), 2 x 1/4" (Hi-Z)
• Outputs - Main:2 x XLR (main), 1 x Dual RCA Stereo (monitor)
• Outputs - Other:1 x Dual RCA Stereo (record out)
• Aux Sends:1 x Pre Aux, 1 x FX
• Send/Return I/O:1 x 1/4" (aux), 1 x 1/4" (FX out/footswitch)
• Inserts:2 x 1/4" (main mix)
• Headphones:1 x 1/4"
• USB:1 x Type B
• EQ Bands:3-band EQ, Sweepable Mids, 2-band EQ (stereo channels)
• Effects:Delay, Reverb, Flange, Chorus
• A/D Resolution:16-bit/48kHz
• OS Requirements - Mac:OS X 10.7 or later
• OS Requirements - PC:Windows 7 SP1 or later, ASIO driver
• Power Source:Standard IEC AC cable
• Height:3.7"
• Width:17.3"
• Depth:13.6"
• Weight:13.6 lbs.

Dimension Packaging Weight : 8.4 kg
