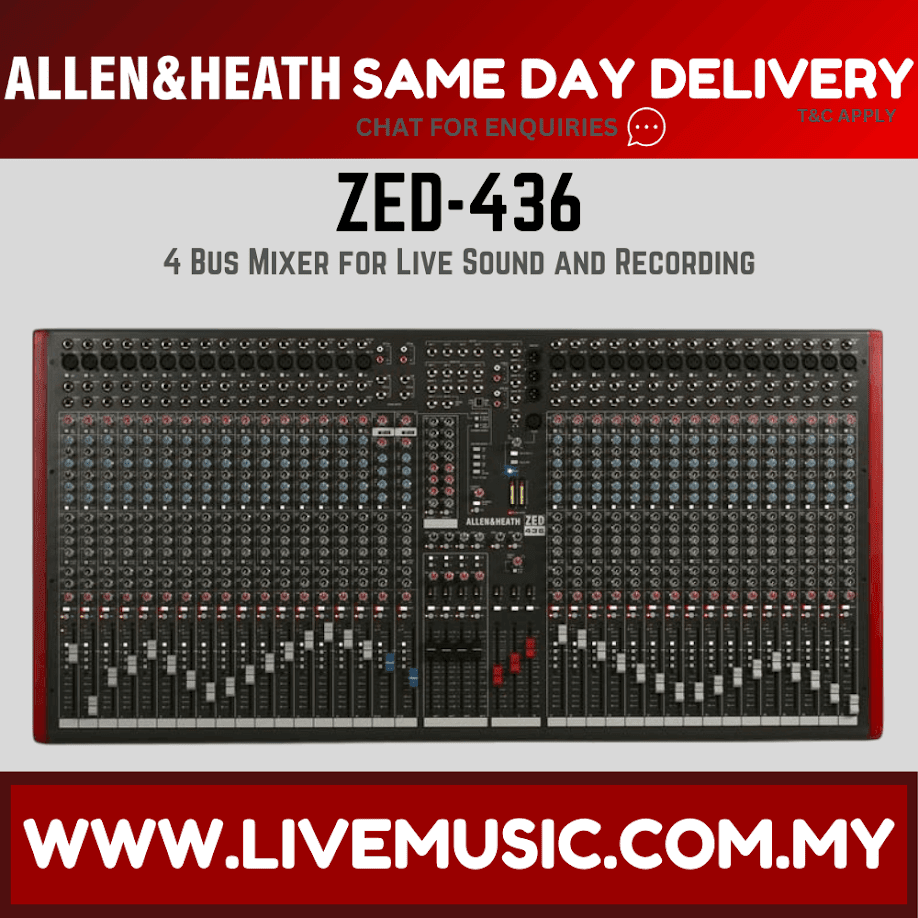

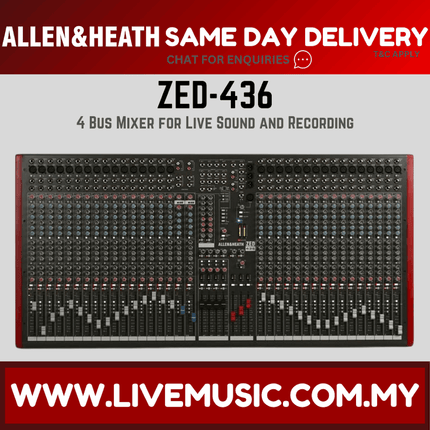

FEATURES

• 32 Channel
• 4-band EQ with 2 swept mids and in/out switch
• 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
• 4 sub groups fed from each channel
• L, R and M main mix outputs
• Individual channel 48V phantom power
• Direct output on every mono channel
• 2 dual stereo inputs with 4-band EQ
• Peak and signal indication on every channel
• 2 matrix sections available; can send output to USB
• Configurable USB stereo audio in/out
• Master level controls on all outputs
• Easy to use layout - all connections and controls on top surface

SPECIFICATIONS

• Type:Analog
• Channels:32
• Computer Connectivity:USB (2 x 2)
• Faders:41 x 100mm
• Inputs - Mic Preamps:32 x XLR
• Phantom Power:32
• Inputs - Line:32 x 1/4" (CH 1-32), 4 x 1/4" & 4 x RCA (CH 33-36 Stereo), 2 x RCA (2 TRK)
• Outputs - Main:2 x XLR (Main), 1 x XLR (Mono)
• Outputs - Direct:32
• Outputs - Other:2 x 1/4" (Matrix), 2 x RCA (2TRK), 4 x 1/4" (Group)
• Aux Sends:2 x Pre, 2 x Post, 2 x Pre/Post
• Send/Return I/O:6 x 1/4"
• Busses/Groups:4 x Groups
• Channel Inserts:Yes (CH 1-32), 4 x 1/4" (Group)
• Headphones:1 x 1/4", 1 x 1/8"
• USB:1 x Type B
• Talkback:Yes
• EQ Bands:4-band, Sweepable Hi- and Low-Mids (CH 1-32), 4-band (Stereo Channels)
• Height:5.08"
• Width:44.4"
• Depth:22.1"
• Weight:58.3 lbs.

Dimension Packaging Weight : 48.0 kg
