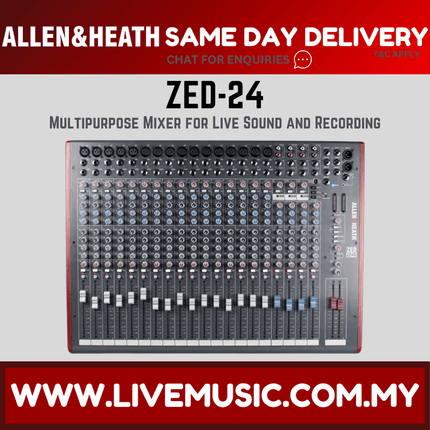

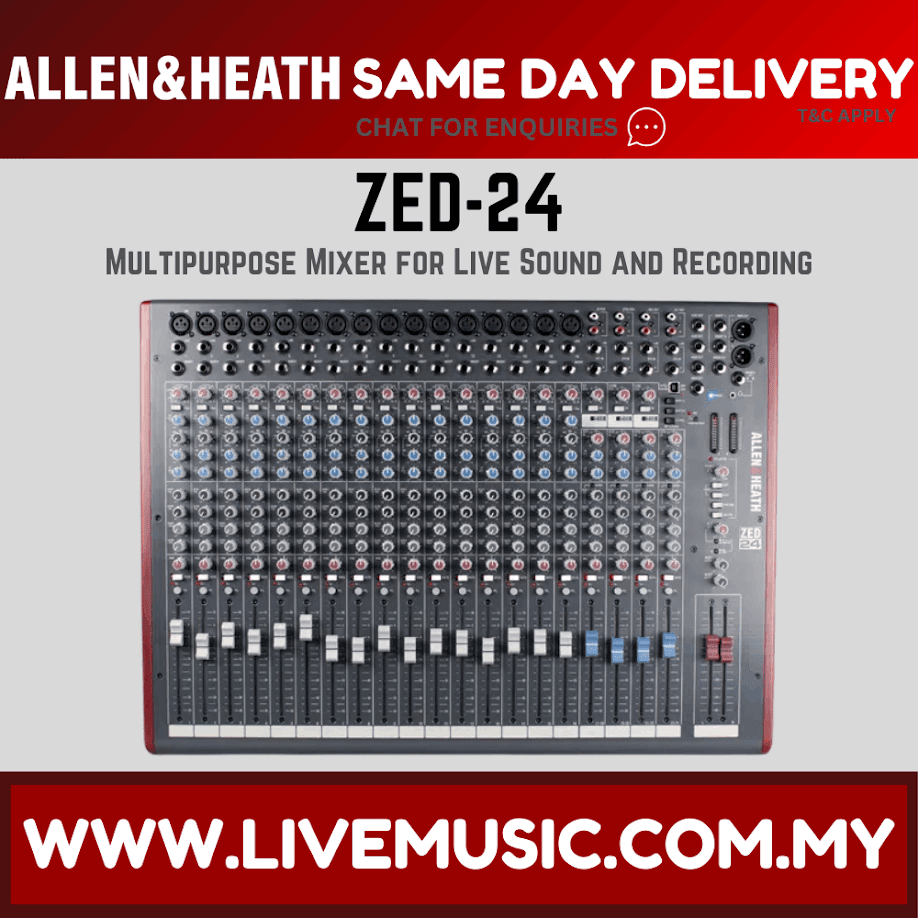

FEATURES

• 16 mic preamps
• 4 stereo channels
• 3-band EQ
• Insert points
• High pass filter
• Stereo imaging control on every channel
• Channel mute switches
• Stereo return
• 2-track return
• Advanced monitoring facilities
• 1/4" and 3.5mm headphones outputs
• Stereo record out
• Alternative stereo out
• Mono sum of LR output
• Main LR
• 12-bar LR meters
• Master controls for aux 1&2
• USB

SPECIFICATIONS

• Type:Analog
• Channels:24
• Computer Connectivity:USB (2 x 2)
• Faders:22 x 100mm
• Inputs - Mic Preamps:16 x XLR (CH 1-16)
• Phantom Power:16
• Inputs - Line:16 x TRS (CH 1-16), 8 x TRS (CH 17-24 Stereo), 2 x RCA (REC)
• Outputs - Main:2 x XLR (Main), 1 x TRS (Mono)
• Outputs - Other:2 x RCA (Alt), 2 x RCA (Rec)
• Aux Sends:2 x Pre, 2 x Post
• Send/Return I/O:4 x TRS, 2 x RCA (ST RTN), 2 x RCA (2TRK RTN)
• Busses/Groups:Alt
• Channel Inserts:Yes (CH 1-16)
• Headphones:1 x 1/4", 1 x 1/8"
• USB:1 x Type B
• EQ Bands:3-band, Sweepable Mid (CH 1-16), 2-band (CH 17-24 Stereo)
• Height:3.86"
• Width:25.4"
• Depth:18.3"
• Weight:23.1 lbs.
