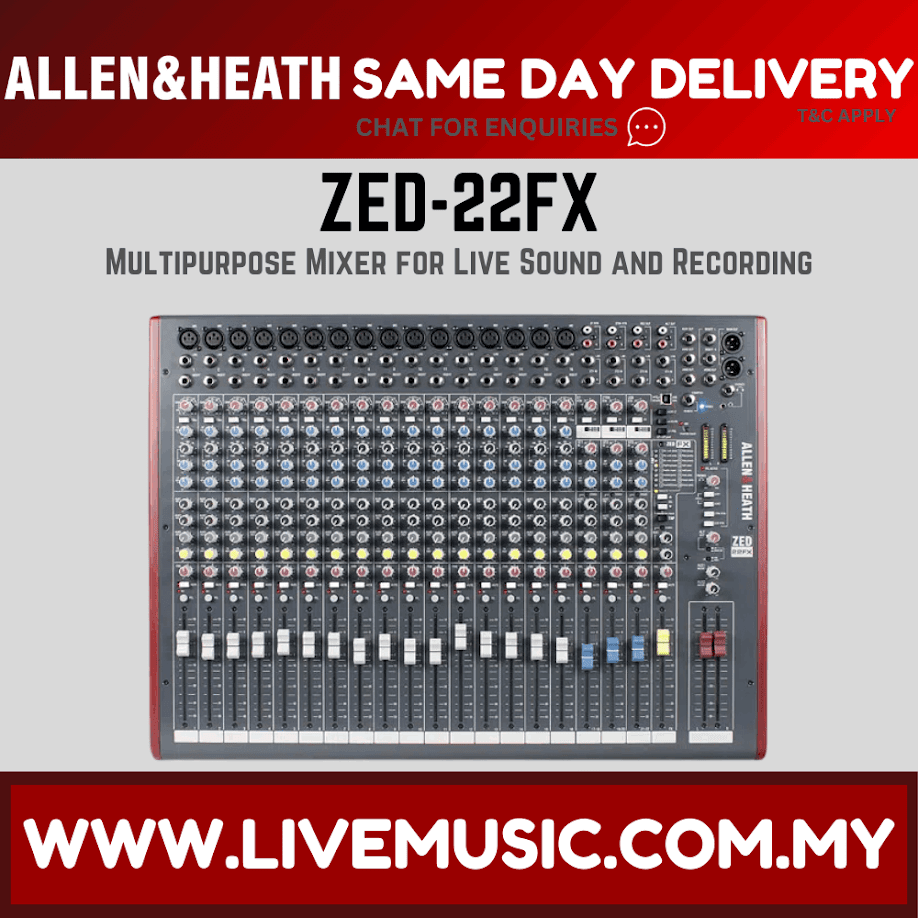

Allen & Heath ZED-22FX Mixer with USB and Effects ( ZED22FX / ZED 22FX )

Description

SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6


FEATURES
  • 22-channel mixer with 16 mic/line inputs and three dual stereo channels
  • USB audio connection for immediate recording
  • Includes a free copy of SONAR LE recording software for PC
  • Feature four aux sends, 1 and 2 are prefade, 3 and 4 are post fade
  • High-quality DuoPre microphone preamplifiers with huge 69dB gain range
  • Musical 3-band EQ on 16 main channels, 2-band EQ on the stereo channels
  • Three switches for varying your send/return configurations for recording
  • 16 built-in effects, including delays, reverbs, flange, and chorus
SPECIFICATIONS
  • Type:Analog
  • Channels:22
  • Computer Connectivity:USB (2 x 2)
  • Faders:22 x 100mm
  • Inputs - Mic Preamps:16 x XLR
  • Phantom Power:16
  • Inputs - Line:6 x TRS (CH 1-6), 6 x TRS (CH 17-22 Stereo)
  • Outputs - Main:2 x XLR (Main), 1 x TRS (Mono)
  • Outputs - Other:2 x RCA (Alt), 2 x RCA (Rec)
  • Aux Sends:2 x Pre, 1 x Post, 1 x Post/FX
  • Send/Return I/O:3 x TRS, 2 x RCA (ST RTN), 2 x RCA (2TRK RTN)
  • Channel Inserts:Yes (CH 1-16)
  • Headphones:1 x 1/4", 1 x 1/8"
  • USB:1 x Type B
  • EQ Bands:3-band, Sweepable Mid (CH 1-16), 2-band (CH 17-22 Stereo)
  • Effects:Yes
  • Height:3.9"
  • Width:25.4"
  • Depth:18.3"
  • Weight:23.1 lbs.
Dimension Packaging Weight : 24.0 kg
