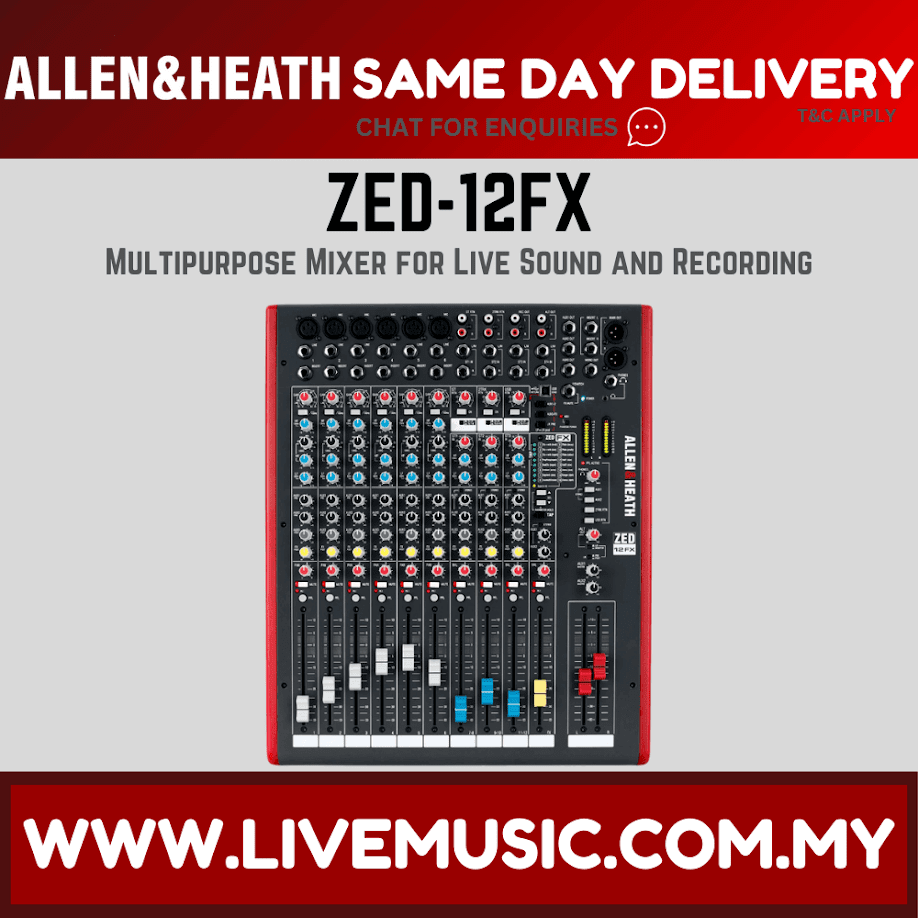

Allen & Heath ZED-12FX Mixer with USB and Effects ( ZED12FX / ZED 12FX )

Description

SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6


FEATURES
  • 12-channel mixer with 6 mic/line inputs and 3 stereo line channels
  • Inserts on all mono channels
  • Configurable USB stereo audio input/output
  • 100mm smooth-action faders
  • Features 4 auxiliary sends: 2 pre, 1 post, and 1 post/FX
  • 6 channels with DuoPre microphone preamplifiers and highpass filters
  • Musical 3-band EQ on 6 main channels; 2-band EQ on the stereo channels
  • 16 built-in 24-bit effects, including delays, reverbs, flange, and chorus
  • 1/4" and 1/8" headphone outputs
SPECIFICATIONS
  • Type:Analog
  • Channels:12
  • Computer Connectivity:USB (2 x 2)
  • Faders:12 x 100mm
  • Inputs - Mic Preamps:6 x XLR
  • Phantom Power:6
  • Inputs - Line:6 x 1/4" (CH 1-6), 6 x 1/4" (Ch 7-12 Stereo), 4 x RCA (Ch 7-10 Stereo)
  • Outputs - Main:2 x XLR (Main), 1 x 1/4" (Mono)
  • Outputs - Other:1 x 1/4" (Mono out), 2 x RCA (Alt out), 2 x RCA (Rec out)
  • Aux Sends:2 x Pre, 1 x Post, 1 x FX Post
  • Send/Return I/O:3 x 1/4"
  • Busses/Groups:Alt
  • Channel Inserts:Yes (CH 1-6)
  • Inserts:2 x 1/4" (Main left, right)
  • Headphones:1 x 1/4", 1 x 1/8"
  • USB:1 x Type B
  • EQ Bands:3-band, Sweepable Mid (CH 1-6), 2-band (CH 7-12 Stereo)
  • Effects:Yes
  • Rackmountable:Yes
  • Height:3.9"
  • Width:15.2"
  • Depth:18.3"
  • Weight:23.1 lbs.

Dimension Packaging Weight : 16.8 kg

Allen & Heath ZED-12FX Mixer with USB and Effects ( ZED12FX / ZED 12FX )

Product form

RM3,011.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
