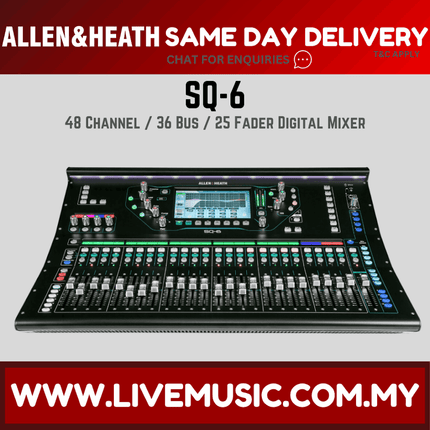

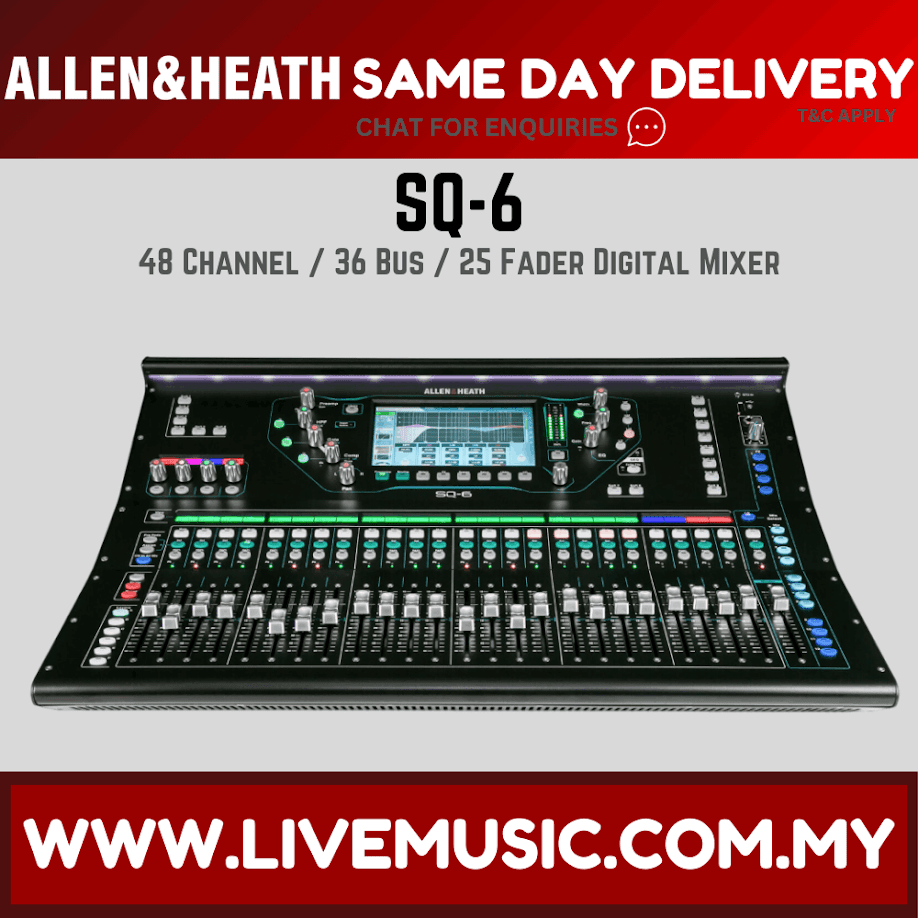

FEATURES

• 48-input digital mixer with 96kHz FPGA processing
• Best-in-class audio quality, with less than 0.7ms latency
• 25 faders for hands-on mixing, with 6 fader layers
• Create up to 12 stereo mixes in addition to the main LR mix
• 3 stereo matrices
• 8 stereo FX engines with dedicated effects returns
• 7" capacitive touchscreen for navigation
• SLink port for remote audio and I/O expansion
• 64-channel I/O port for network audio
• Built-in 32 x 32 USB audio interface for multitrack recording
• SQ-Drive allows for direct recording to a USB drive
• Dedicated physical controls, plus 8 assignable softkeys
• Automatic mic mixing makes it easy to manage large multi-mic setups
• AES digital output
• Rackmountable

SPECIFICATIONS

• Type:Digital
• Channels:48
• Inputs - Mic Preamps:24 x XLR
• Phantom Power:24 channels, Talkback
• Inputs - Line:24 x XLR (mic/line)
• Inputs - Other:2 x 1/4" (ST1), 2 x 1/4" (ST2), 1 x 1/8" (ST3)
• Outputs - Main:2 x 1/4" (A out, B out), 2 x XLR (L,R)
• Outputs - Other:14 x XLR (stereo mixes, L/R)
• Outputs - Digital:1 x XLR (AES)
• Busses/Groups:36 bus
• Inserts:Internal Pre EQ/Compressor
• Talkback:1 x XLR
• MIDI I/O:USB (control)
• Data I/O:1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
• Remote:1 x 1/4" (footswitch)
• USB:1 x Type B, 1 x Type A
• Computer Connectivity:USB (32 x 32), Ethernet
• I/O Expansion Slots:1 x Option card port (Dante, Waves)
• Headphones:1 x 1/4"
• Faders:25 x 100mm motorized
• A/D Resolution:24-bit/96kHz
• EQ Bands:Parametric EQ, 28-band Graphic
• Effects:Delay, Reverb, Chorus, Flanger, Phaser (8 x RackFX engine)
• Signal Processing:Dynamics
• DAW Control:MIDI DAW control via USB
• Screen:7" color touch screen
• Storage:USB Type A (16 x 16)
• Software:Wireless Remote Mixing app iPad/Android (network router not included)
• Power Source:AC Adapter
• Height:7.8"
• Depth:20.3"
• Width:25.1"
• Weight:29.3 lbs.

Dimension Packaging Weight : 42.0 kg
