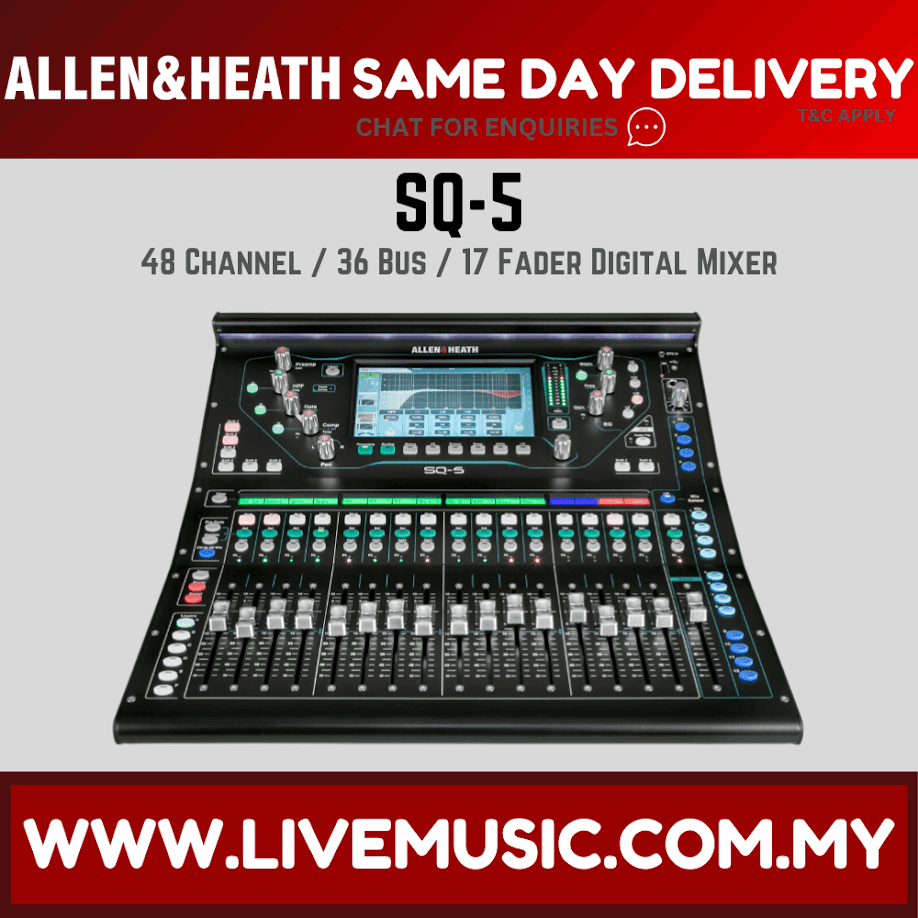

Allen & Heath SQ-5 Digital Mixer ( SQ5 / SQ 5 )

Description

SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6


FEATURES
  • 48-input digital mixer with 96kHz FPGA processing
  • Best-in-class audio quality, with less than 0.7ms latency
  • 17 faders for hands-on mixing, with 6 fader layers
  • Create up to 12 stereo mixes in addition to the main LR mix
  • 3 stereo matrices
  • 8 stereo FX engines with dedicated effects returns
  • 7" capacitive touchscreen for navigation
  • SLink port for remote audio and I/O expansion
  • 64-channel I/O port for network audio
  • Built-in 32 x 32 USB audio interface for multitrack recording
  • SQ-Drive allows for direct recording to a USB drive
  • Dedicated physical controls, plus 8 assignable SoftKeys
  • Automatic Mic Mixing makes it easy to manage large multi-mic setups
  • AES digital output
  • Rackmountable
SPECIFICATIONS
  • Type:Digital
  • Channels:48
  • Inputs - Mic Preamps:16 x XLR
  • Phantom Power:16 channels, Talkback
  • Inputs - Line:16 x XLR (mic/line)
  • Inputs - Other:2 x 1/4" (ST1), 2 x 1/4" (ST2), 1 x 1/8" (ST3)
  • Outputs - Main:2 x 1/4" (A out, B out), 2 x XLR (L,R)
  • Outputs - Other:12 x XLR (stereo mixes, L/R)
  • Outputs - Digital:1 x XLR (AES)
  • Busses/Groups:36 bus
  • Inserts:Internal Pre EQ/Compressor
  • Talkback:1 x XLR
  • MIDI I/O:USB (control)
  • Data I/O:1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
  • Remote:1 x 1/4" (footswitch)
  • USB:1 x Type B, 1 x Type A
  • Computer Connectivity:USB (32 x 32), Ethernet
  • I/O Expansion Slots:1 x Option card port (Dante, Waves)
  • Headphones:1 x 1/4"
  • Faders:17 x 100mm motorized
  • A/D Resolution:24-bit/96kHz
  • EQ Bands:Parametric EQ, 28-band Graphic
  • Effects:Delay, Reverb, Chorus, Flanger, Phaser (8 x RackFX engine)
  • Signal Processing:Dynamics
  • DAW Control:MIDI DAW control via USB
  • Screen:7" color touch screen
  • Storage:USB Type A (16 x 16)
  • Software:Wireless Remote Mixing app iPad/Android (network router not included)
  • Rackmountable:Yes (kit sold separately)
  • Power Source:AC Adapter
  • Height:7.8"
  • Depth:20.3"
  • Width:17.3"
  • Weight:23.1 lbs.
  • Dimension Packaging Weight : 30.6 kg
