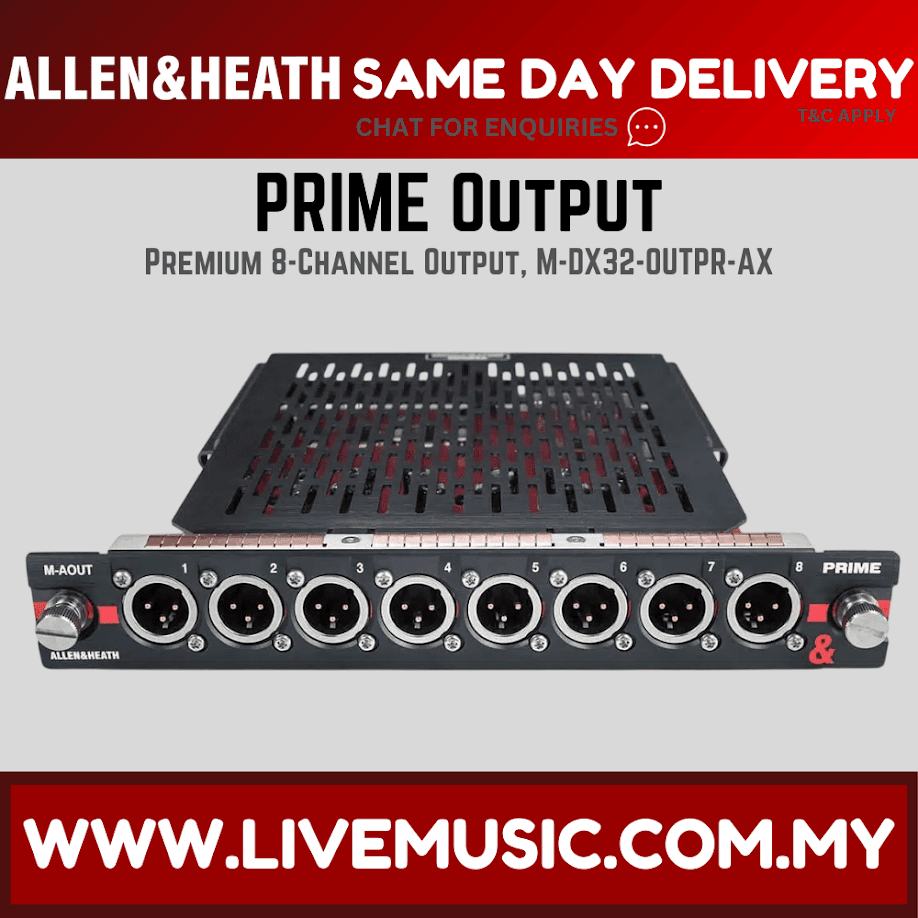

Allen & Heath M-DX32-OUTPR-AX DX32 PRIME Line output module ( MDX32OUTPRAX / MDX32OUTPRAX )

Description

SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

- Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
- Third party pickup charges to be beared by buyer
- Kindly put a remark for self collection / Lalamove in your order
- installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

EAST MALAYSIA ORDERS
- Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

FOR STANDARD DELIVERY
Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
*Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

Waze: Live Music Centre
No 20 & 20-1 & 22 & 22A,
Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

Contact : 0-1-6-5-2-0-1-0-6-6



Inputs :

  • ADC : 96kHz, 32-bit Delta-Sigma
  • Mic/Line XLR Inputs : Balanced XLR, +48V phantom power
  • Mic/Line Preamp : Fully recallable
  • Input Sensitivity (dLive) : -60 to +15dBu
  • Input Sensitivity (SQ) : -60 to +20dBu
  • Analogue Gain (dLive) : +5 to +60dB, 1dB steps
  • Analogue Gain (SQ) : 0 to +60dB, 1dB steps
  • Pad : -20dB Active PAD
  • Maximum Input Level : +38dBu (PAD in)
  • Input Impedance : >4kΩ (Pad out), >10kΩ (Pad in)
  • Mic EIN : -127.5dBu with 150Ω source
  • Phantom Power indication : Per socket, internal or external phantom power sensing, triggered at 24V
  • Measured Prime in to AES out, 20-20kHz, minimum Gain, Pad out.
    Full Signal Dynamic Range : 114.8dB
    Noise at 0dB gain : -96.8dBu
  • Frequency Response to AES output
    At 0dB gain : 10Hz - 20kHz +0/-0.3dB
    At 30dB gain : 10Hz - 20kHz +0/-0.3dB
    At 60dB gain : 10Hz - 20kHz +0/-0.25dB
  • THD+N (analogue in to AES out)
    0.0009% @ +10dBu out 0dB gain
    0.0009% @ +10dBu out 10dB gain
    0.001% @ +10dBu out 20dB gain
    0.0011% @ +10dBu out 30dB gain

Outputs :

  • DAC : 96kHz, 32-bit Delta-Sigma

Analogue XLR Outputs :

  • Output Impedance : <60Ω
  • Nominal Output : +4dBu = 0dB meter reading
  • Maximum Output Level : +22dBu
  • Residual Output Noise : -94dBu (22-22kHz)
  • THD+N : -105dB (22-22kHz) @1kHz
  • Crosstalk separation : -94dBu (22-22kHz) @1kH

Allen & Heath M-DX32-OUTPR-AX DX32 PRIME Line output module ( MDX32OUTPRAX / MDX32OUTPRAX )

Product form

RM6,348.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: M-DX32-OUTPR-AX

    Same Day Delivery via Lalamove

    Description

    SAME DAY DELIVERY / INSTALLATION SERVICE & SELF PICKUP WITHIN KLANG VALLEY / KL AREA

    - Please select shipping option 'Own Courier' for same day delivery / self-collect at showroom
    - Third party pickup charges to be beared by buyer
    - Kindly put a remark for self collection / Lalamove in your order
    - installation request (Piano and Drum) which is available within Klang Valley / KL area (Additional Charges)

    EAST MALAYSIA ORDERS
    - Sea Shipping will be arranged for bulky items, usually takes 3-4 weeks time

    FOR STANDARD DELIVERY
    Please select shipping option  'Standard Delivery' and all orders will be shipped out on timely manner.
    *Kindly take note that the courier services are beyond our control, estimated delivery time is around 2-7 working days

    Waze: Live Music Centre
    No 20 & 20-1 & 22 & 22A,
    Jalan BRP 1/6, Bukit Rahman Putra, 47000 Sungai Buloh, Selangor

    Contact : 0-1-6-5-2-0-1-0-6-6



    Inputs :

    • ADC : 96kHz, 32-bit Delta-Sigma
    • Mic/Line XLR Inputs : Balanced XLR, +48V phantom power
    • Mic/Line Preamp : Fully recallable
    • Input Sensitivity (dLive) : -60 to +15dBu
    • Input Sensitivity (SQ) : -60 to +20dBu
    • Analogue Gain (dLive) : +5 to +60dB, 1dB steps
    • Analogue Gain (SQ) : 0 to +60dB, 1dB steps
    • Pad : -20dB Active PAD
    • Maximum Input Level : +38dBu (PAD in)
    • Input Impedance : >4kΩ (Pad out), >10kΩ (Pad in)
    • Mic EIN : -127.5dBu with 150Ω source
    • Phantom Power indication : Per socket, internal or external phantom power sensing, triggered at 24V
    • Measured Prime in to AES out, 20-20kHz, minimum Gain, Pad out.
      Full Signal Dynamic Range : 114.8dB
      Noise at 0dB gain : -96.8dBu
    • Frequency Response to AES output
      At 0dB gain : 10Hz - 20kHz +0/-0.3dB
      At 30dB gain : 10Hz - 20kHz +0/-0.3dB
      At 60dB gain : 10Hz - 20kHz +0/-0.25dB
    • THD+N (analogue in to AES out)
      0.0009% @ +10dBu out 0dB gain
      0.0009% @ +10dBu out 10dB gain
      0.001% @ +10dBu out 20dB gain
      0.0011% @ +10dBu out 30dB gain

    Outputs :

    • DAC : 96kHz, 32-bit Delta-Sigma

    Analogue XLR Outputs :

    • Output Impedance : <60Ω
    • Nominal Output : +4dBu = 0dB meter reading
    • Maximum Output Level : +22dBu
    • Residual Output Noise : -94dBu (22-22kHz)
    • THD+N : -105dB (22-22kHz) @1kHz
    • Crosstalk separation : -94dBu (22-22kHz) @1kH
