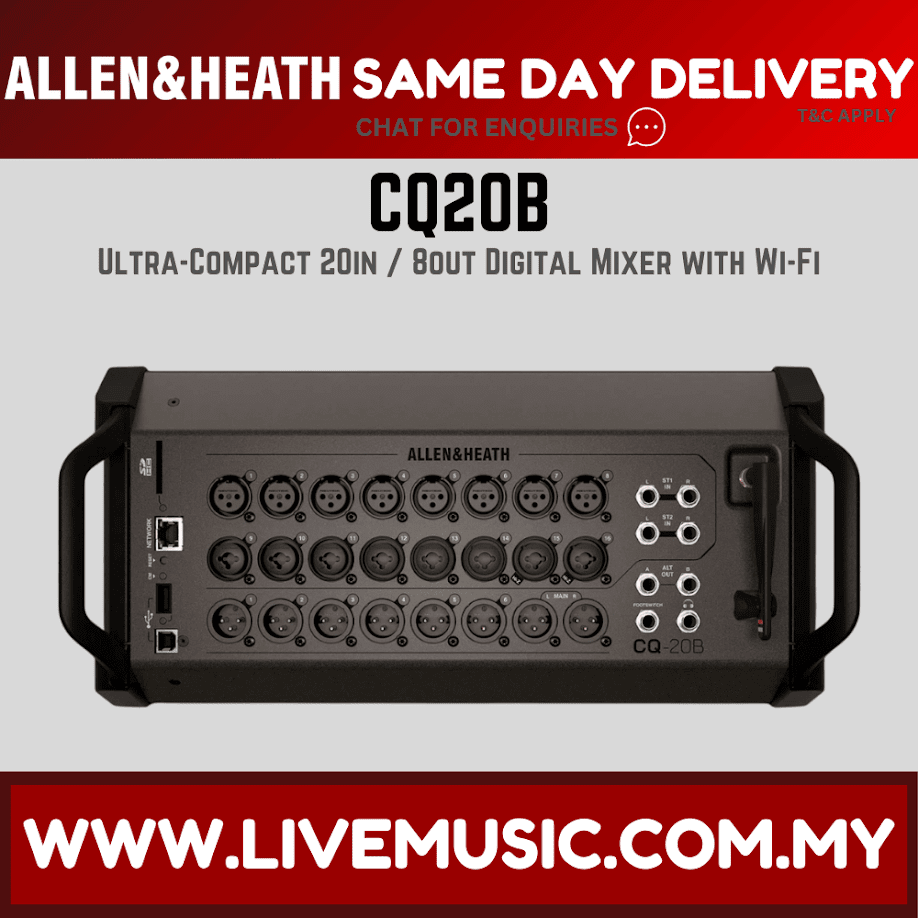

The CQ-20B is an ultra-compact digital audio mixer designed to be operated via its built-in WiFi or through connection to a wired or wireless network. The processing engine, utilising Allen & Heath’s acclaimed FPGA technology, brings numerous time-saving tools to the CQ to speed up and simplify common tasks for users of all abilities. Gain Assistant automatically sets preamp gain to the optimal level and monitors and adjusts for any unexpected peaks in the signal. Feedback Assistant identifies and filters out problem frequencies across all outputs via simple one-button operation, with more in-depth control available for challenging acoustical environments.

FEATURES

• A compact 16-channel digital mixer that fits in your stage rack

• Exhibits outstanding sound quality at 96kHz

• 16 excellent-sounding microphone preamps and stereo Bluetooth input

• Built-in 2.4GHz/5GHz Wi-Fi with auto channel

• Preamp Gain Assistant takes all the guesswork out of setting levels

• Feedback Assistant makes locating and neutralizing acoustic feedback frequencies a piece of cake

• Instrument-based Quick inputs help you get a great sound quickly

• Complete inputs allow for in-depth tweaking

• Smart-FX engines include reverb, delay, modulation, and more

• Remote control stagebox operation combines physical control and at-a-glance visual feedback

• 24-in/22-out recording and playback via an onboard SD card reader

• Built-in 24-in/22-out USB audio interface enables top-shelf digital multitrack recordings using a computer and DAW

Specifications:

• Input: 8x Mono XLR

• Input: 8x Mono XLR/1/4" Jack combi (2 with Hi-Z option)

• Input: 2x Stereo Input (2x TRS 1/4" Jack)

• Main Output: 2x XLR (L/R)

• Output: 6x XLR

• Alt Output: 2x 1/4" TRS Jack

• Headphone Output: 1x 1/4" TRS Jack

• Bluetooth: Stereo input to mix

• USB-B: Stereo input to mix + record (24x22)

• USB-A: Stereo Audio Record, playback + data

• Footswitch: 1/4" TRS Jack

• RJ45 Network socket (CQ as Client)

• SD Card: Playback + Record (24x22)

• WiFi: Built in Duel Band WiGi (CQ as Host)

• Effects: 4x Multi-FX Engines

• Audio Processing: 96kHz input/output processing

• Control apps via: MacOS, iPadOS, iOS, Windows, Android

• Dimensions: 372mm (W) x 154mm (D) x 134mm (H)

• Weight: 2.6kg / 5.8lbs

• Power: IEC mains connection with worldwide PSU
