Description
AKG WMS470 is your best choice for any application calling for a solution that is more flexible than a simple plug-and-play system, yet easy to set up and operate. WMS 470 is a high-performance solution for any situations where several radio mics will be used simultaneously, including gigs at clubs and stages, for regional events, seminars or house of worship applications.

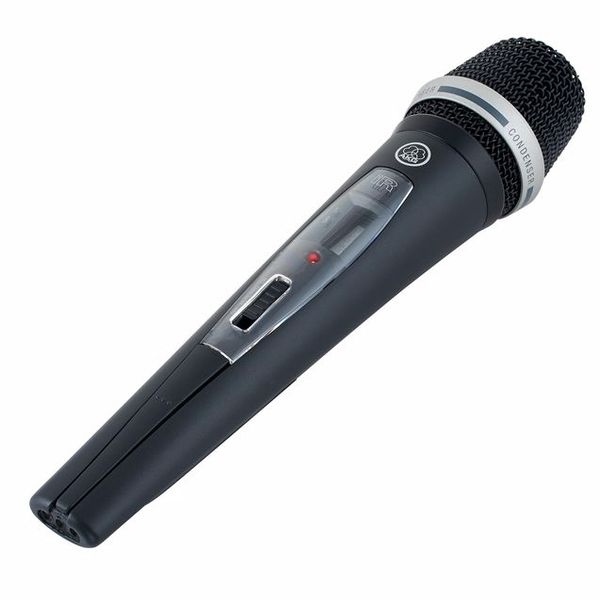

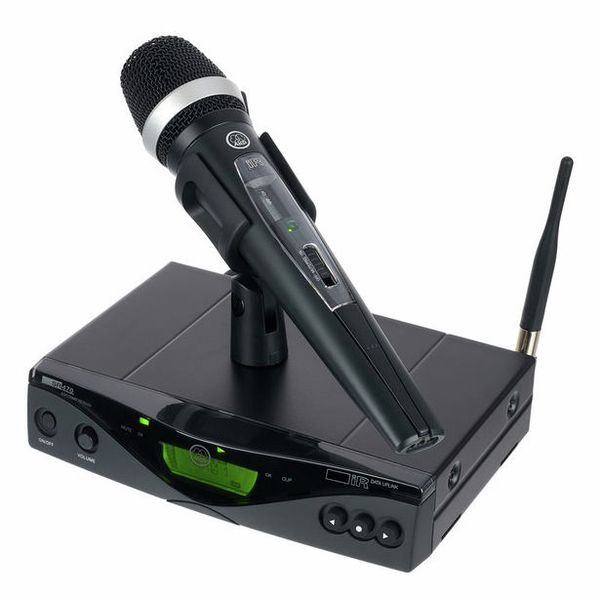

WMS470 is a professional multichannel wireless microphone system with pilot tone transmission to prevent unwanted noise. The Vocal Set D5 includes a HT470 handheld transmitter featuring a dynamic D5 capsule for well-balanced, powerful sound. The space diversity receiver offers both a microphone level and a line level output.
- Half 19" all metal case diversity receiver
- Automatic frequency setup
- Up to 16 pre-programmed frequencies within the same frequency band
- Pilot Tone prevents unexpected start-up noise
- Infrared link of all frequency and setup data to the transmitter
- Up to 14 hours battery life and battery status information in hours
- Two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low)
- Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and omni-directional antennas
- Enhanced automatic setup with channel preview
- Pre-coordinated TV channel frequency presets
- Environment scan and rehearsal functions
- Programmable multicolor backlight display
- External antenna connectors
- Pilot Tone transmission
- Leading edge dipole-antenna design
- Infrared synchronization
- Up to 50mW transmission power
- Integrated charging contacts
- Switching bandwidth 30.5 MHz (depending on local regulations)
- Modulation FM
- Sensitivity 6 dBμV / -100 dBm
- Receiver type Super heterodyne
- Diversity system μC controlled space diversity
- Audio bandwidth 35 to 20,000 Hz
- THD at 1 kHz <0.3%
- Signal-to-noise 120 dB(A)

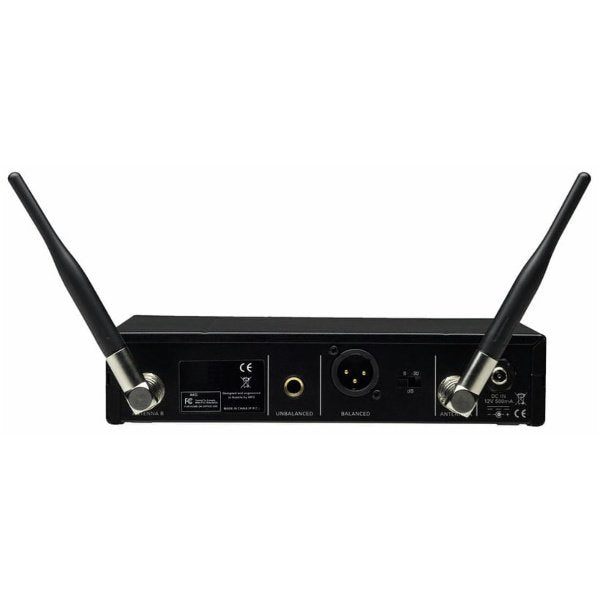

- Audio outputs Balanced XLR, switchable to -30 or 0 dBm unbalanced TS 1/4" jack
- Audio output level +9 dBu (max.)
- Antenna inputs 2x 50-ohm BNC female connectors
- Transmitter battery indication Low battery
- Power supply 12 V / 500 mA DC
- Carrier frequency range 500 to 530, 570 to 600, 600 to 630, 650 to 680, 720 to 750, 790 to 820 and 835 to 865 MHz
- Audio bandwidth 35 to 20,000 Hz
- THD <0.7% (at 1 kHz)
- Signal/noise ratio 120 dB(A)
- Modulation FM
- RF output power Max. 50 mW (ERP)
- Receiver (H x W x D) 1.7" (44 mm) x 7.8" (200 mm) x 7.4" (190 mm)
- Transmitter (Diameter x H) 2" (51.1 mm) x 9.3" (236.9 mm)
- Receiver 2.2 lbs (972 g)
- Transmitter 0.52 lbs (240 g)
Specifications
- Weight: 200gr
- Usage: Indoor & outdoor
-
