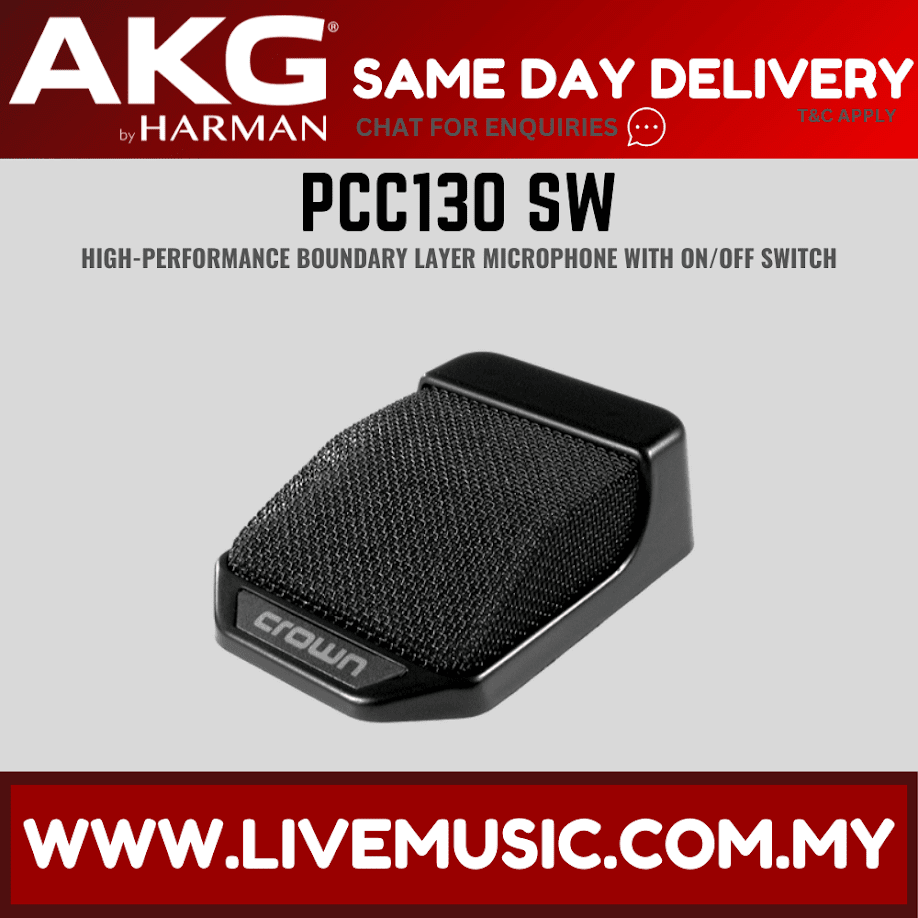

The PCC130SW from AKG is a supercardioid boundary layer microphone of professional quality that, due to its small size, fits perfectly on small tables. Thanks to low self-noise and very high sensitivity, the microphone picks up even distant voices clearly and naturally. The PCC130 SW has a silent-operating programmable membrane switch that can be configured for touch on/off, momentary on or momentary off. A high-intensity LED lights when the unit is on. A bass-tilt switch allows the user to tailor the low-end response and reduce subsonic noise.
Specifications:
- Type: Phase Coherent Cardioid
- Element: Electret condenser.
- Frequency response (typical): 50 Hz to 20,000 Hz at 30 degrees incidence to surface.
- Polar pattern: Half-supercardioid (supercardioid in the hemisphere above the primary boundary).
- Impedance: 150 ohms, balanced (recommended load impedance 1000 ohms or greater).
- Open circuit sensitivity (typical): 22 mV/Pa* (33 dB re 1 volt/Pa).
- Power sensitivity: 30.5 dB re 1 mW/Pa*. EIA rating 125 dBm.
- Equivalent noise level (self-noise): 22 dB SPL typical (0 dB = 0.0002 dyne/cm2), A-weighted.
- S/N rati 72 dB at 94 dB SPL.
- Maximum SPL: 120 dB SPL produces 3% THD.
- Off attenuation: 70 dB at 1 kHz.
- Turn-on time: 250 msec.
- Turn-off time: 125 msec.
- Polarity: Positive pressure on the diaphragm produces positive voltage on pin 2 with respect to pin 3.
- Operating voltage: Phantom power, 12 to 48 volts
- DC on pins 2 and 3 with respect to pin 1.
- Current drain: 6 mA nominal.
- Connector: Switchcraft TB3M
- Cable: 15-foot (4.6-m), black, two-conductor shielded cable with Switchcraft TA3F and A3M connectors.
- Materials: High-impact molded plastic and steel mesh grille.
- Finish: Black.
- Net weight: 6 oz. (170 g).
- Optional accessories: Crown PH-1A phantom power supply (single channel, battery or AC adapter powered), Crown PH-4B phantom power supply (4 channels, AC powered).
