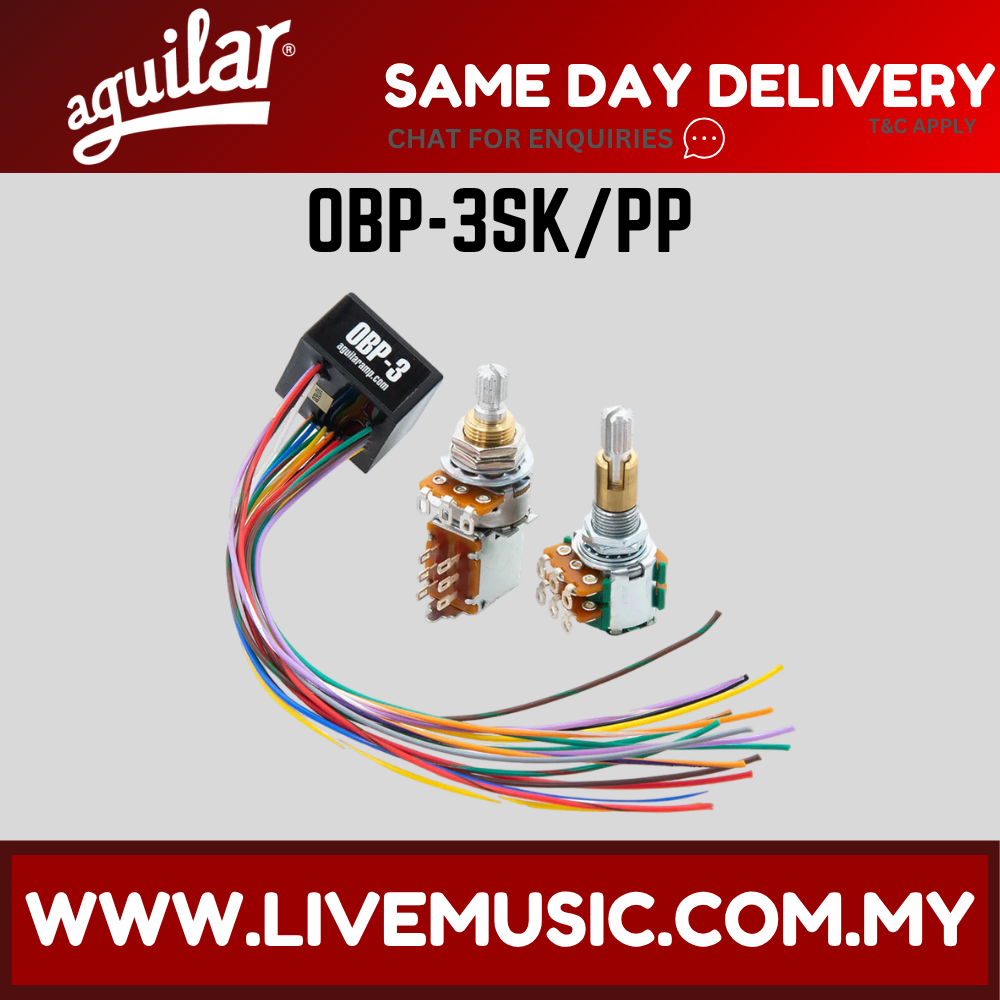

The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection.
Features:
- Low noise discrete FET input stage
- Centre detent 50 K linear pots
- Dual concentric pot available
- 324 hours of battery life
- Mid pot is push/pull for Midrange frequency selection
Specifications
| Bass control |
18 dB @ 40 Hz |
| Mid control |
16 dB @ 400Hz or 800 Hz. User-selectable frequency centre |
| Treble control |
16 dB @ 6.5 kHz |
| Input impedance |
1 megohm |
| Output impedance |
100 ohms 9 or 18 volts operation |
| Distortion |
.019 into 10k ohm load |
| Noise |
-95 dBm unweighted |
| Wire lead length |
6.50 inches |
| Includes |
Stacked Treble/Bass pot and separate Mid pot |
| Dimensions |
0.98” (W) x 0.98” (L) x 0.59” (D) |
