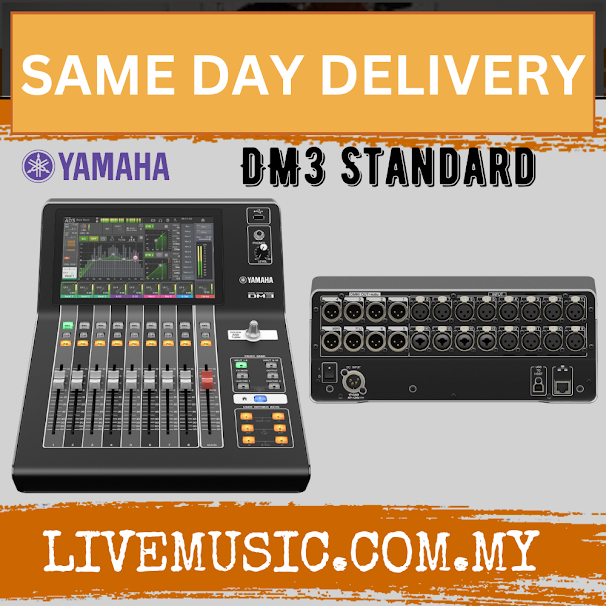

FEATURES?
* 8 + 1 fader configuration
* 9-inch multi-touch screen
* Input mixing channels: 16 mono + 1stereo + 2 FX return
* Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
* Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
* USB: 18 inputs, and 18 outputs
* 18 Effects, and GEQ on Mix 1-6 and Stereo channels
* Sampling rate: 48kHz/96kHz
SPECIFICATIONS?
Mixing Capacity:
* Input Channels: 16 mono + 1stereo + 2 FX return
Mix Buses: 6
* Matrices: 2 (Supports Input to Matrix)
* Stereo Buses: 1
*FX Buses: 2
* Cue Buses: 1
I/O Connectors
* Analog Input: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
* Analog Output: 8 (XLR)
* Dante: -
* USB to HOST: 1 (USB Type-B, USB2.0)
* USB to DEVICE: 1 (USB Type-A)
* DC: 1 (XLR 4pin, DC power IN)
* User Interface: 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder
* Recording & Playback: PC/Mac: Recording 18 track, Playback 18 track
* USB Storage device: Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
* Sampling Frequency rate: 96 kHz / 48 kHz
* Frequency Response: +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
* Total Harmonic Distortion: Less than 0.01 % 20 Hz - 20 kHz@+4 dB into 10k?, INPUT to OMNI OUT, Input Gain= Min*1
* Hum & Noise Level: -126 dBu typ., Input Gain= Max.
* Residual Output Noise: -84 dBu, ST main off*2
* Dynamic Range: 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
* Crosstalk: -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3
* Power Requirements: DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
* Power Consumption: 43W
* Included Accessories: Owner's Manual, Power Adapter, Download Information
