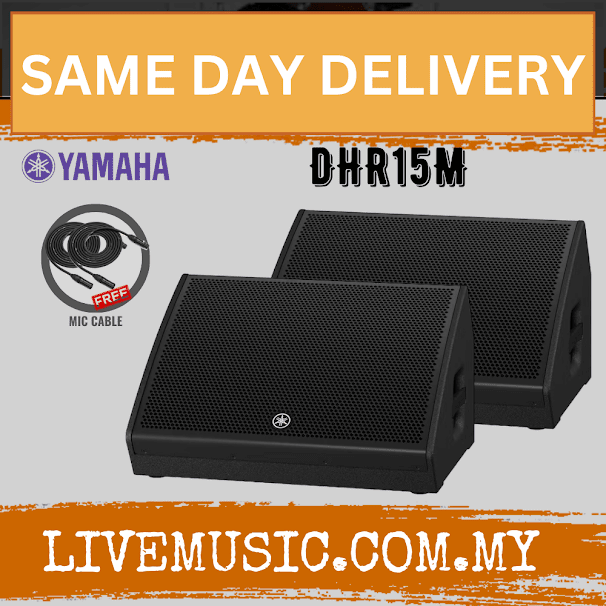

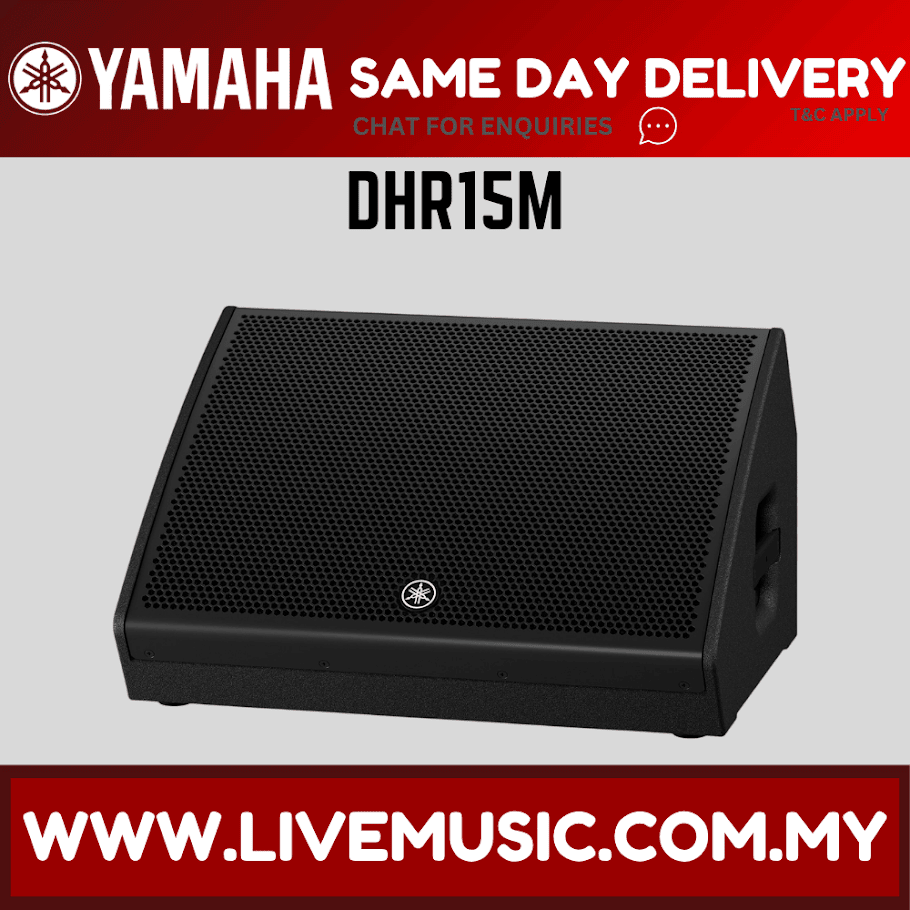

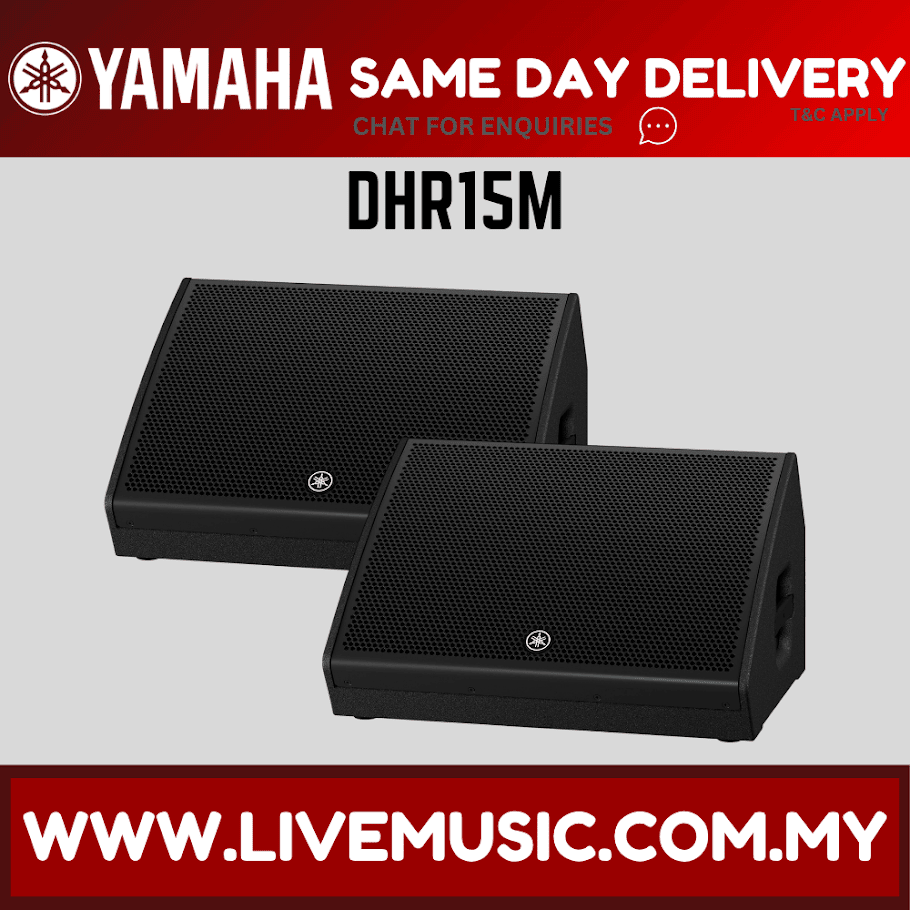

Yamaha DHR15M 15-Inch Passive Stage Monitor Speaker with FREE Speakon Cables - Pair (DHR-15M/DHR 15M)

  • Sale -15%

Description

The DHR15M is a 2-way bi-amp powered loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on our high-end DZR Series, the DHR15M offers best-in-class sound quality and durability.



Yamaha DHR15M Features

  • The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration

  • Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface

  • A pole socket for use on a stand

  • Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion



Specification

  • Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex

  • Frequency range (-10dB)50 Hz - 20 kHz

  • Coverage areaH65? x V75?

  • Crossover1.8 kHz: FIR-X tuning™ (linear phase FIR filter)

  • Maximum Output Level (Measured peak, IEC noise@1m)131 dB SPL

  • Components

    • LF: Diameter:15" cone, Voice Coil: 3", Magnet: Ferrite

    • HF: Diaphragm: 1.75", Type: 1" throat compression driver Coaxial, Magnet: Ferrite

  • AmplifierClass-D

  • Power Rating

    • Dynamic: 1,000W (LF: 800W, HF: 200W) *1

    • Continuous: 465W (LF: 400W, HF: 65W)

  • CoolingFan cooling, 4 speeds

  • Power consumption74W (1/8power), 18W (Idle)

  • Power requirements100V, 100-120V, 220-240V, 110/127/220V (Brazil), 50/60 Hz

  • A/D D/A Converters24 bit 48 kHz Sampling

  • ProcessorsOFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

  • I/O connectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)

  • Cabinet materialPlywood

  • FinishDurable Polyurea Painting, Black

  • HandleSide x1

  • Pole socket?35 mm x1 (Side)

  • Floor Monitor Angle57°

  • Dimensions (WxHxD)25.3x14.5x19.9" (642x369x505mm) (height includes rubber feet)

  • Net weight50.7 lbs (23kg)

Read more

Yamaha DHR15M 15-Inch Passive Stage Monitor Speaker with FREE Speakon Cables - Pair (DHR-15M/DHR 15M)

Product form

RM5,590.00  RM4,724.00

The DHR15M is a 2-way bi-amp powered loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on our high-end DZR Series, the DHR15M offers best-in-class sound quality and durability.   Yamaha DHR15M Features The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications Featuring a plywood cabinet that delivers a clear sound with minimal vibration Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface A pole socket for use on a stand Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion   Specification Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex Frequency range (-10dB)50 Hz - 20 kHz Coverage areaH65? x V75? Crossover1.8 kHz: FIR-X tuning™ (linear phase FIR filter) Maximum Output Level (Measured peak, IEC noise@1m)131 dB SPL Components LF: Diameter:15" cone, Voice Coil: 3", Magnet: Ferrite HF: Diaphragm: 1.75", Type: 1" throat compression driver Coaxial, Magnet: Ferrite AmplifierClass-D Power Rating... Read more

SKU: DHR15M - Pair

    Description

    The DHR15M is a 2-way bi-amp powered loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on our high-end DZR Series, the DHR15M offers best-in-class sound quality and durability.



    Yamaha DHR15M Features

    • The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications

    • Featuring a plywood cabinet that delivers a clear sound with minimal vibration

    • Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface

    • A pole socket for use on a stand

    • Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion



    Specification

    • Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex

    • Frequency range (-10dB)50 Hz - 20 kHz

    • Coverage areaH65? x V75?

    • Crossover1.8 kHz: FIR-X tuning™ (linear phase FIR filter)

    • Maximum Output Level (Measured peak, IEC noise@1m)131 dB SPL

    • Components

      • LF: Diameter:15" cone, Voice Coil: 3", Magnet: Ferrite

      • HF: Diaphragm: 1.75", Type: 1" throat compression driver Coaxial, Magnet: Ferrite

    • AmplifierClass-D

    • Power Rating

      • Dynamic: 1,000W (LF: 800W, HF: 200W) *1

      • Continuous: 465W (LF: 400W, HF: 65W)

    • CoolingFan cooling, 4 speeds

    • Power consumption74W (1/8power), 18W (Idle)

    • Power requirements100V, 100-120V, 220-240V, 110/127/220V (Brazil), 50/60 Hz

    • A/D D/A Converters24 bit 48 kHz Sampling

    • ProcessorsOFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

    • I/O connectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)

    • Cabinet materialPlywood

    • FinishDurable Polyurea Painting, Black

    • HandleSide x1

    • Pole socket?35 mm x1 (Side)

    • Floor Monitor Angle57°

    • Dimensions (WxHxD)25.3x14.5x19.9" (642x369x505mm) (height includes rubber feet)

    • Net weight50.7 lbs (23kg)

    Read more
