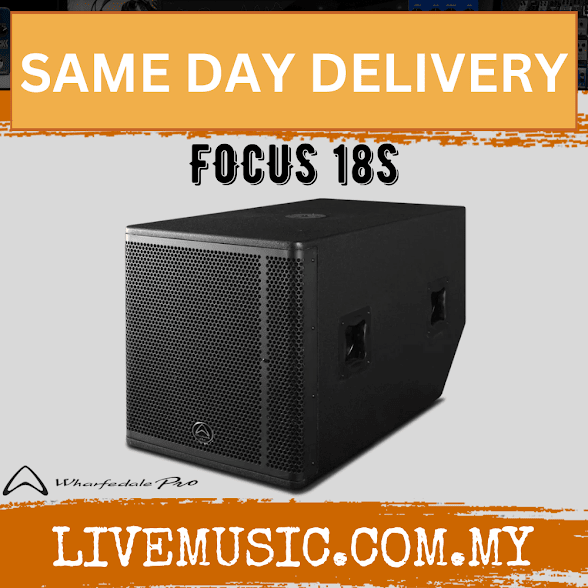

WHARFEDALE PRO FOCUS-18SUB Series 1000 Watts RMS 18" Passive Subwoofer Speaker (FOCUS 18SUB/FOCUS18SUB)

Description

The two-way Focus 12 and Focus 15 models employ High-Q 100° x 10° long-throw waveguide horn geometry to project the sound to the back of large listening areas. All this comes together to create a point-source array system!



Key Features

●18″ passive subwoofer

  • 4.5″ voice coil

  • M20 pole socket plus 2 side handles

  • 140 dB Max SPL @ 1 meter

  • 1000 w AES (RMS)

  • 2000 w Program

  • 4000 w Peak



SPECIFICATIONS





Model Name

Focus-18S

System Type

Passive

Configuration

Subwoofer

Frequency Response (+/-3 dB)

35 Hz – 800 Hz

Frequency Range (-10 dB)

30 Hz – 800 Hz

Sensitivity (2.83 v / 1 m)

104 dB

Calculated Maximum SPL @1 m

140 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



Size

462 mm / 18″

Voice Coil Size

114.3 mm / 4.5″

Rated Impedance

8 Ω

LF Power (re:AES2-2012)

1000 w

High Frequency Transducer



HF Driver Type



Voice Coil Size



Exit Size



Diaphragm Material



Rated Impedance



HF Power (re:AES2-2012)



Nominal Coverage (H x V)



Power



System Continuous Power

1000 w

System Programme Power

2000 w

System Peak Power

4000 w

Crossover frequency



Input Connector

2 x NL4

(speakON Compatible)

Hardware



Pole Mount

M20 thread Pole Mount

Handles

4 On Sides

Enclosure



Enclosure Material

18 mm Plywood

Finish

Black Rhino Paint

Grille Material & Finish

1.5 mm Steel

Dimensions – (Unpacked)



Height

540 mm / 21.26″

Width Front

490 mm / 19.29″

Width Rear

490 mm / 19.29″

Depth

900 mm / 35.43″

Dimensions – (Packed)



Height

615 mm / 24.21″

Width Front

560 mm / 22.05″

Width Rear

560 mm / 22.05″

Depth

970 mm / 38.19″

Weight



Net Weight

52.4 kg / 115.3 lbs

Gross Weight

61.3 kg / 134.9 lbs



WHARFEDALE PRO FOCUS-18SUB Series 1000 Watts RMS 18" Passive Subwoofer Speaker (FOCUS 18SUB/FOCUS18SUB)

Product form

RM4,104.00  RM3,693.60 Sale 10%

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: FOCUS18SUB
