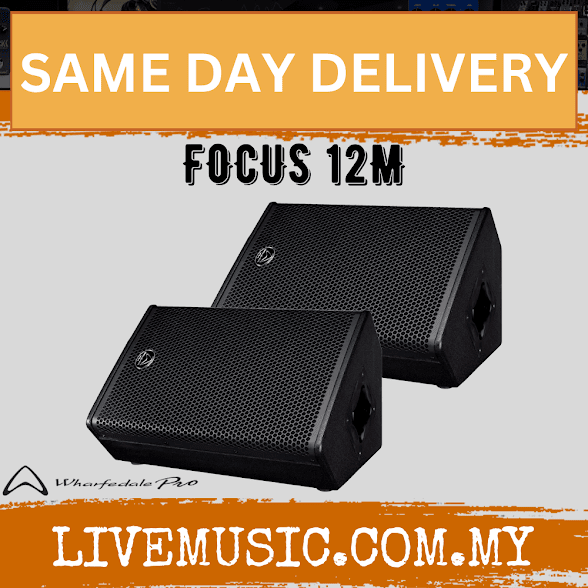

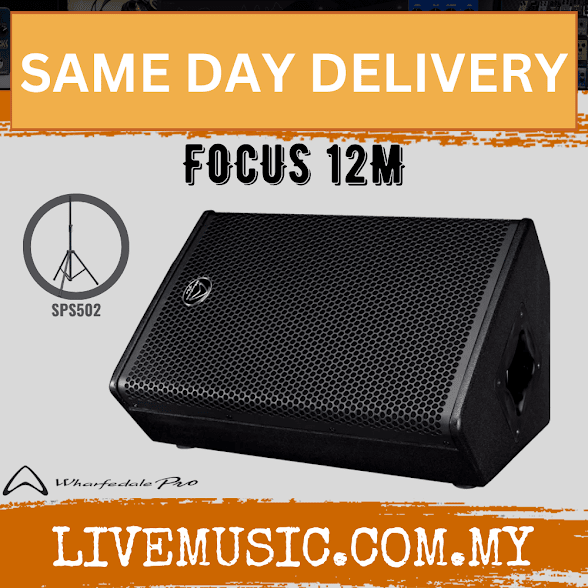

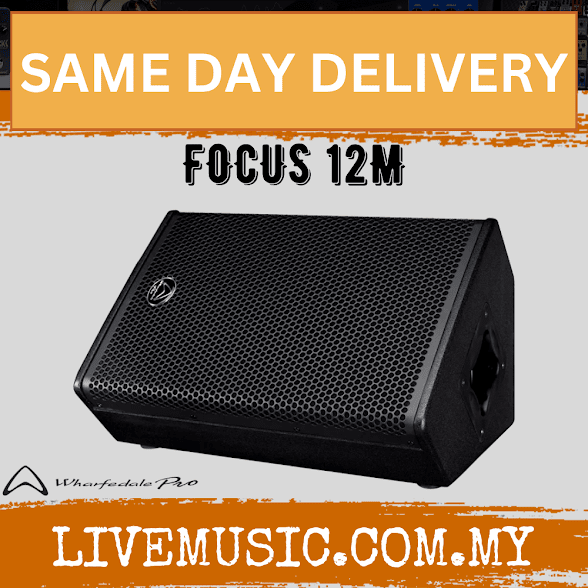

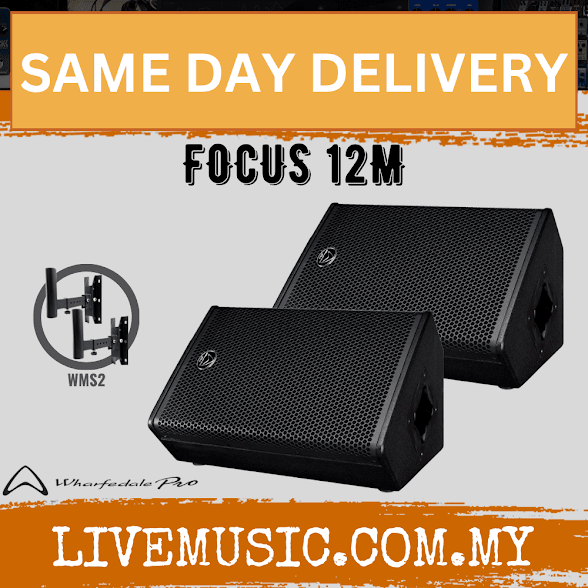

WHARFEDALE PRO FOCUS 12M Series 500 Watts RMS 12" 2-Way Passive Monitor Speaker - Each / Pair (FOCUS-12M/FOCUS12M)

Description

The two-way Focus 12 and Focus 15 models employ High-Q 100° x 10° long-throw waveguide horn geometry to project the sound to the back of large listening areas. All this comes together to create a point-source array system!



Key Features

●12″ passive loudspeaker

  • Dual angle 35mm pole socket

  • 3.0″ voice coil LF driver

  • 3.2″ voice coil HF driver

  • 500 watts AES (RMS)

  • 1000 watts Programme

  • 2000 watts Peak

  • 133 dB Max SPL @ 1 meter



SPECIFICATIONS







Model Name

Focus-12M

System Type

Passive

Configuration

Two-way floor monitor

Frequency Response (+/-3 dB)

60 Hz – 20 KHz

Frequency Range (-10 dB)

65 Hz – 20 KHz

Sensitivity (2.83 v / 1 m)

99 dB

Calculated Maximum SPL @1 m

132 dB

System Rated Impedance

8 Ω

Low Frequency Transducer



Size

305 mm / 12”

Voice Coil Size

75 mm / 3.0”

Rated Impedance

8 Ω

LF Power (re:AES2-2012)

500 w

High Frequency Transducer



HF Driver Type

Compression driver

Voice Coil Size

50.8 mm / 2”

Exit Size

35.6 mm / 1.4”

Diaphragm Material

Titanium

Rated Impedance

8 Ω

HF Power (re:AES2-2012)

50 w

Nominal Coverage (H x V)

90° x 40°

Power



System Continuous Power

500 w

System Programme Power

1000 w

System Peak Power

2000 w

Crossover frequency

2.0 KHz

Input Connector

2 x NL4

(speakON Compatible)

Hardware



Pole Mount

35 mm pole socket

Handles

1 on top

Enclosure



Enclosure Material

15 mm Plywood

Finish

Black Rhino Paint

Grille Material & Finish

1.5 mm Steel

Dimensions – (Unpacked)



Height

570 mm / 22.4”

Width Front

374.6 mm / 14.7”

Width Rear

374.6 mm / 14.7”

Depth

331.5 mm / 13.05”

Dimensions – (Packed)



Height

665 mm / 26.2”

Width Front

454 mm / 18.5”

Width Rear

454 mm / 18.5”

Depth

401 mm / 15.8”

Weight



Net Weight

21.4 kg / 47.1 lbs

Gross Weight

23.8 kg / 52.4 lbs
