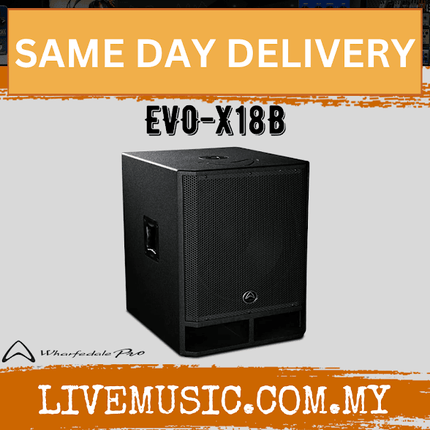

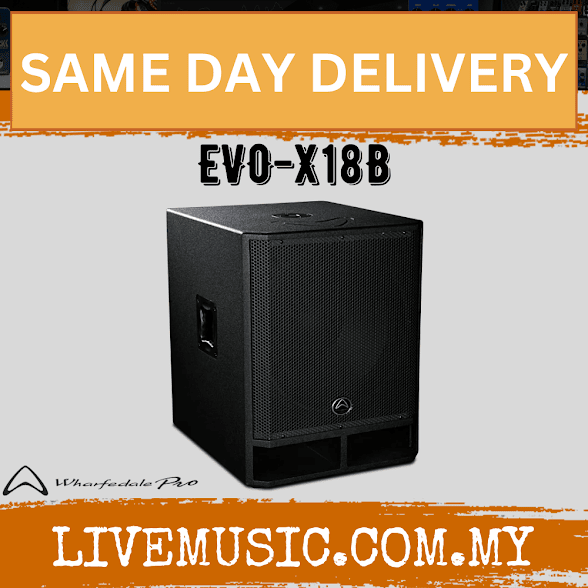

WHARFEDALE PRO EVO-X18B Series 600 Watts RMS 18" Passive Subwoofer (EVO X18B EVOX18B)

Description

The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between the Impact-X Series and the Delta-X Series of passive loudspeakers, EVO-X is a multipurpose lineup of 8 models featuring many useful and practical design elements.



Features

  • 18″ passive subwoofer

  • 18″ LF driver with 3.0″ voice coil

  • 600 watts AES (RMS)

  • 1200 watts Programme

  • 2400 watts Peak

  • 134 dB Max SPL @ 1 meter



SPECIFICATIONS





Model Name

EVO-X18B

System Type

Passive

Configuration

Subwoofer

Frequency Response (+/-3 dB)

35 Hz – 250 Hz

Frequency Range (-10 dB)

30 Hz – 250 Hz

Sensitivity (2.83 v / 1 m)

100 dB

Calculated Maximum SPL @1 m

134 dB

System Rated Impedance

4 Ω

Low Frequency Transducer



Size

470 mm / 18″

Voice Coil Size

76.2 mm / 3″

Rated Impedance

4 Ω

LF Power (re:AES2-2012)

600 w

High Frequency Transducer



HF Driver Type



Voice Coil Size



Exit Size



Diaphragm Material



Rated Impedance



HF Power (re:AES2-2012)



Nominal Coverage (H x V)



Power



System Continuous Power

600 w

System Programme Power

1200 w

System Peak Power

2400 w

Crossover frequency

150 Hz

Input Connector

2 x NL4 (speakON Compatible)

+ 2 x 1/4″ Jacks

Hardware



Pole Mount

35 mm Pole Socket

Handles

2 on Sides

Enclosure



Enclosure Material

15mm MDF

Finish

Rhino rock black paint

Grille Material & Finish

1.2 mm Steel

Dimensions – Unpacked



Height

650 mm / 24.02″

Width Front

522 mm / 20.55″

Width Rear

522 mm / 20.55″

Depth

610 mm / 24.02″

Dimensions – Packed



Height

715 mm / 28.15″

Width Front

656 mm / 25.83″

Width Rear

656 mm / 25.83″

Depth

568 mm / 22.36″

Weight



Net Weight (kg / lbs)

40.1 kg / 88.2 lbs

Gross Weight (kg / lbs)

45.2 kg / 99.4 lbs

WHARFEDALE PRO EVO-X18B Series 600 Watts RMS 18" Passive Subwoofer (EVO X18B EVOX18B)

Product form

RM2,380.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.
Free pickup in our shop(s)

SKU: EVOX18B
