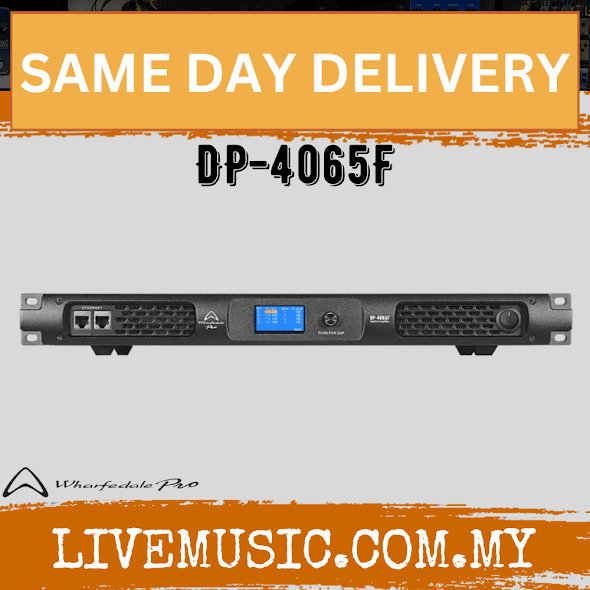

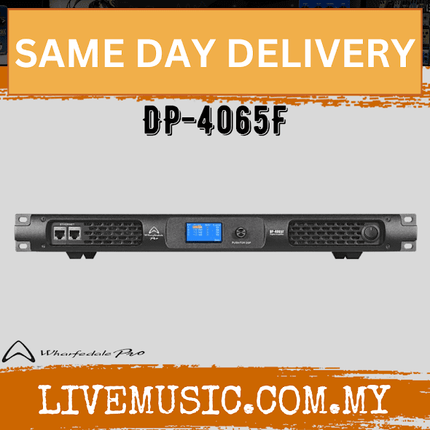

WHARFEDALE DP4065F Quad Channel 650 Watts @ 8 Ohms Amplifier with Ethernet (DP 4065F/DP-4065F)

Description

DP-F Amplifiers

-Multi-channel amps

-Ethernet network connectors

-FIR Filters

-Software control

-70 V / 100 V compatible models



FEATURES

  • 4 channels

  • 8 Ohm 4 x 650 W

  • 4 Ohm 4 x 1100 W

  • 2 Ohm 4 x 1870 W

  • 16 Ohm Bridged 2 x 1300 W

  • 8 Ohm Bridged 2 x 2200 W

  • 4 Ohm Bridged 2 x 3740 W

  • 100 V Hi-Z : No

  • 70 V Hi-Z 4 x 1100 W



FIR Filtering gives

  • Independent control of magnitude and phase.

  • More detailed equalisation.

  • Optimization of frequency and power response.



SPECIFICATIONS





Model



DP-4065F

Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz)

8 Ω / Stereo

4 x 650 W



4 Ω / Stereo

4 x 1100 W



2 Ω / Stereo

4 x 1870 W



16 Ω / Bridge

2 x 1300 W



8 Ω / Bridge

2 x 2200 W



4 Ω / Bridge

2 x 3740 W



100 V Hi-Z

–



70 V Hi-Z

4 x 1100 W

Output RMS voltage



72.1 V

Maximum Input Level



8.7 Vrms(+21 dBu)(Default Gain)

Default Gain (Rated Power,1 KHz)



19 dB

Gain(Rated Power,1 KHz)



19 dB~37 dB

THD+N



Typical value:0.05%(10% Rated Power,8 Ω)

Cross-Talk



≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω)

Frequency Response



Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω)

Input Impedance



20 kΩ(Balance),10 kΩ(Unbalance)

Damping Factor



≥1000(20 Hz-200 Hz,8 Ω)

SNR



≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)

Main Power



90~260 VAC,50/60 Hz

Protection



Power under-voltage protection、Amplifier output DC protection、Thermal Protection、 Temperature Power Control、Overload Power Control

Size(W×H×D)



483 x 45 x 376 mm

Net Weight



9.1 kg
