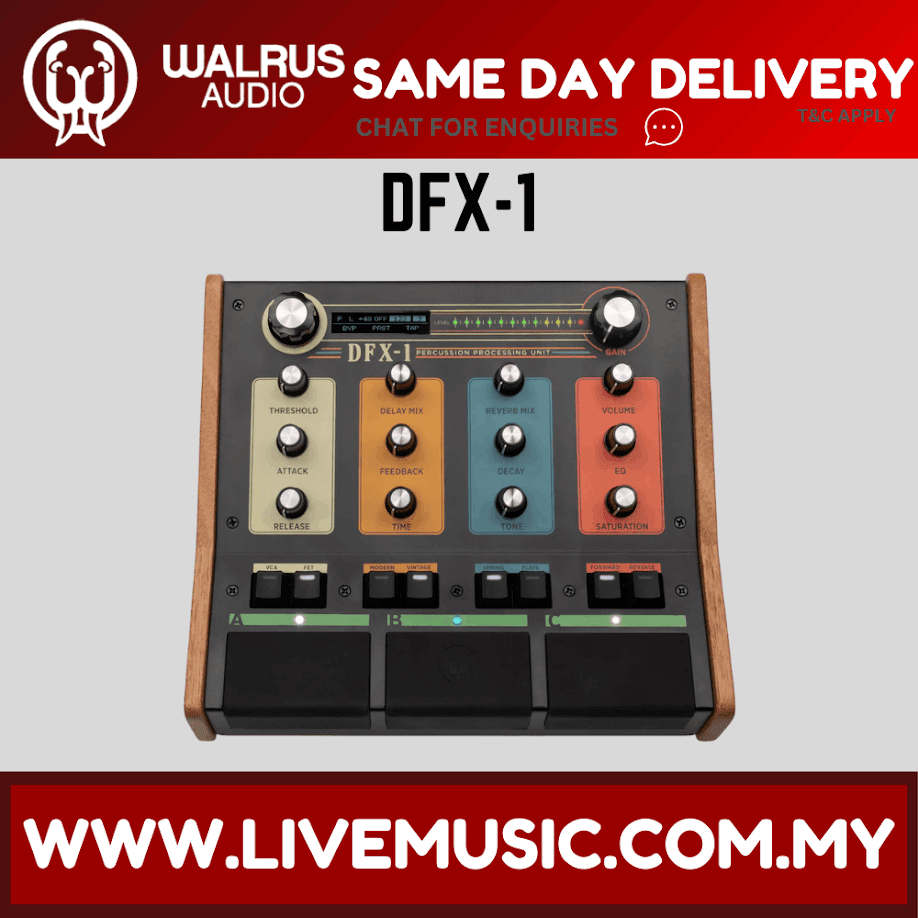

The DFX-1 is a multi-effect processing unit designed in collaboration with Aaron Sterling to add musical character and punch to any acoustic drum or percussion source. Craft everything from subtle to in-your-face drum sounds with studio-grade VCA & FET compression, two flavors each of Delay and Reverb, plus Saturation, Gating, an FX loop with customizable routing, and a flexible EQ. Use the DFX-1 anywhere on your kit with any microphone, whether it’s a squashed, spacious room mic, a tight, gated snare, or even routed outboard for processing in post. With a high-performance microphone preamp with phantom power, an effects loop to connect external outboard equipment, MIDI connectivity, and presets, a whole new world of sonic creativity becomes available right at your drum set

Features:

• Built around three main effect engines — Compression, Delay, and Reverb, each with two distinctive flavors

• Compression: Models the API 2500’s signature VCA and the classic 1176 FET compressor

• Delay: Vintage (warm, analog/tape-inspired repeats), Modern (digital delay with clearer repeats)

• Reverb: Spring (classic spring tanks), Plate (emulates a plate reverb)

• Noise Gate: Eliminates unwanted background noise from your signal

• Tone, Saturation & EQ

• Flexible Routing & FX Loop

• Up to 128 presets accessible via preset menu and MIDI

Specifications:

• Frequency Response: 20Hz to 20kHz

• Sample Rate: 44.1kHz

• Bit Depth: 24 Bit

• Unbalanced: SNR 98dB @ 1kHz +4dBu A-weight, THD+N 0.0032% @ 1kHz +4dBu A-weight, Dynamic Range 101 @ 1kHz +4dBu A-weight

• Balanced: SNR 99dB @ 1kHz +4dBu A-weight, THD+N 0.0025% @ 1kHz +4dBu A-weight, Dynamic Range 102 @ 1kHz +4dBu A-weight

• Total Latency: 2.9ms

• Preamp Gain: +60dB

• Inputs: XLR Balanced Input (mic) with +48V phantom, ¼" Balanced Input (line/instrument switchable)

• Outputs: XLR Balanced Output, ¼" Balanced Output

• FX Loop: ¼" Unbalanced Send and Return

• MIDI: 5-pin DIN MIDI IN, 5-pin DIN MIDI THRU (clock and program control)

• USB-C: Firmware updates

• Power: DC Barrel Connector — 2.1 mm x 5.5 mm, centre negative

• Current Draw: 500 mA

• Includes: 6 ft (1.83 m) 9V 500mA stock power supply with worldwide adapters

• Dimensions: 262 mm x 232 mm x 97 mm

• Weight: 1.7 kg (3.8 lb)
