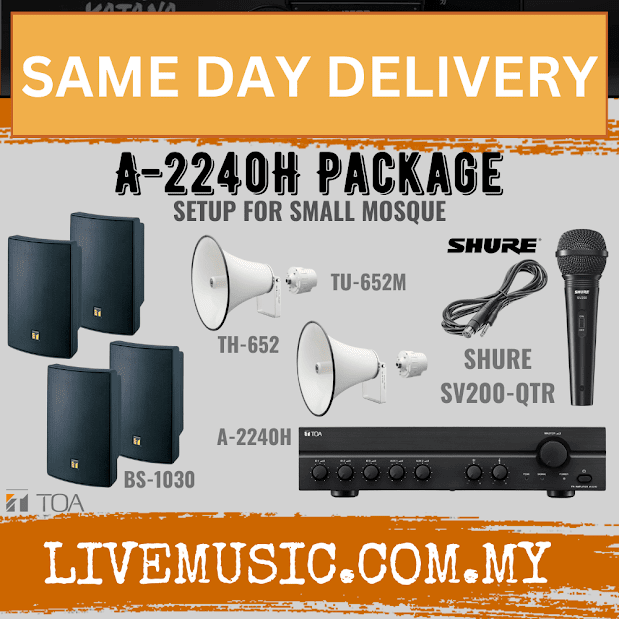

FEATURES

• 1 x TOA A-2240 Mixer Power Amplifier (A2240) - H version
• 4 x TOA Splashproof Box Speakers BS-1030 30W Universal Speaker
• 2 x TOA Horn Speaker TH-652 (TH652)
• 2 x TOA TU-652M 50W Driver Unit
• 1 x Shure SV200 Dynamic Vocal Microphone with XLR to QTR Cable (6.3 mm)

SPECIFICATIONS

TOA A-2240 Mixer Power Amplifier (A2240) - H version :

• Power Source : 220 - 240 V AC, or 24 - 30 V DC
• Rated Output : 240 W
• Power Consumption : 238 W (EN60065), 520 W (AC operation at rated output),
• 15 A (DC operation at rated output)
• Frequency Response : 50 - 20,000 Hz (±3 dB)
• Distortion : Under 1% at 1 kHz, 1/3 rated power
• Input : MIC 1 - 3: -60 dB*, 600 O, balanced, phone jack
• AUX 1,2: -20 dB*, 10 kO, unbalanced, RCA pin jack
• Output : Speaker out: Balanced (floating)
• High impedance: 42 O (100 V), 21 O (70 V)
• Low impedance: 4 O (31 V)
• Rec out: 0 dB*, 600 O, unbalanced, RCA pin jack
• Phantom Power : DC +21 V (MIC 1)
• S/N Ratio : Over 60 dB
• Tone Control : Bass: ±10 dB at 100 Hz
• Treble: ±10 dB at 10 kHz
• Muting : MIC 1: Mutes other input signals by 0 - 30 dB attenuation
• Indicator : Power, signal, peak
• Finish : Panel: ABS resin, black
• Dimensions : 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54" × 3.97" × 14.19")
• Weight : 13.2 kg (29.1 lb)

TOA Splashproof Box Speakers BS-1030 30W Universal Speaker :

• Enclosure : 2-way bass-reflex type
• Rated Input : 30 W
• Rated Impedance : 8 O
• 100 V line: 330 O (30 W), 500 O (20 W), 670 O (15 W), 1 kO (10 W), 2 kO (5 W)
• 70 V line: 170 O (30 W), 250 O (20 W), 330 O (15 W), 500 O (10 W), 1 kO (5 W)
• Sound Pressure Level : 90 dB (1 W, 1 m)
• Frequency Response : 80 Hz - 20 kHz
• Speaker Component : 12 cm cone-type + dome-type
• Speaker Cord : 2-core cabtyre cord with diameter of 6 mm
• Operating Temperature : -10 ? to +50 ?
• Water Protection ; IPX4 (can be installed vertically or horizontally.*)
• Finish : Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint
• Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating
• Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK,
• powder coating
• Dimension : 196 (W) × 290 (H) × 150 (D) mm (unit only)
• Weight : 2.5 kg (unit only)

TOA Horn Speaker TH-652 (TH652) :

• Applicable Drivers : TU-632, TU-632M, TU-652, TU-652M
• Sound Pressure Level : 110 dB (1 W, 1 m) (When operated with a driver.)
• Frequency Response : 200 Hz - 6,000 Hz (When operated with a driver.)
• Dust/Water Protection : IP65 (When operated with a driver.)
• Driver Coupling : 1 - 3/8 18 threads (inch screw)
• Operating Temperature : -20 °C to +55 °C (must be free from dew condensation)
• Finish : Horn flare and flange: Aluminum, White, powder coating
• Reflector horn: HIPS, White
• Bracket: Steel, White, powder coating
• Screws and bolts: Stainless steel
• Dimensions : F500 × 357 (D) mm
• Weight : 2.7 kg

TOA TU-652M 50W Driver Unit :

• Applicable Horns : TH-652
• Rated Input : 50 W
• Line Voltage : 100 V line or 70 V line
• Rated Impedance : 100 V line: 200 O (50 W), 330 O (30 W), 670 O (15 W)
• 70 V line: 100 O (50 W), 200 O (25 W), 330 O (15 W), 670 O (7.5 W)
• Output Sound Pressure Level : 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
• Frequency Response : 150 Hz - 6,000 Hz (When operated with JIS C 5504 standard horn.)
• IP Code : IP65 (When a driver is operated with a horn.)
• Horn Coupling : 1 - 3/8 18 threads (inch screw)
• Polarity : Hot: Black, Com: White
• Operating Temperature : -20°C to +55°C (-4°F to +131°F) (must be free from dew condensation)
• Finish : Upper Cover: Aluminum, White, powder coating
• Unit Case: HIPS. White
• Screws: Stainless steel
• Speaker cable: Polyvinyl chloride insulated cabtyre cable
• (6 mm (0.24") in diameter, 450 mm (17.72") in length), White
• Dimensions : F139 נ149 (D) mm (F5.47" נ5.87")
• Weight : 2.7 kg (5.95 lb)

Shure SV200 Dynamic Vocal Microphone with XLR to QTR Cable (6.3 mm) :

• Cardioid Polar Pattern
• On/Off Switch
• Includes 15ft XLR to QTR Cable

Dimension Packaging Weight : 67.2 kg
