The original Roland TR-909 provided analog kick snare and toms along with 6-bit samples for hats and cymbals. This hybrid sound-generation method ensured that the 909 sounded like no other drum machine. So it cool that Roland has brought this classic back in updated fashion for their Boutique series.

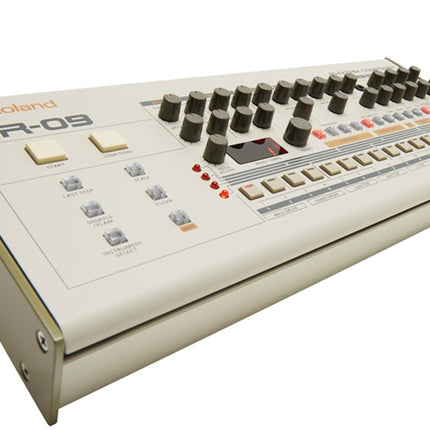

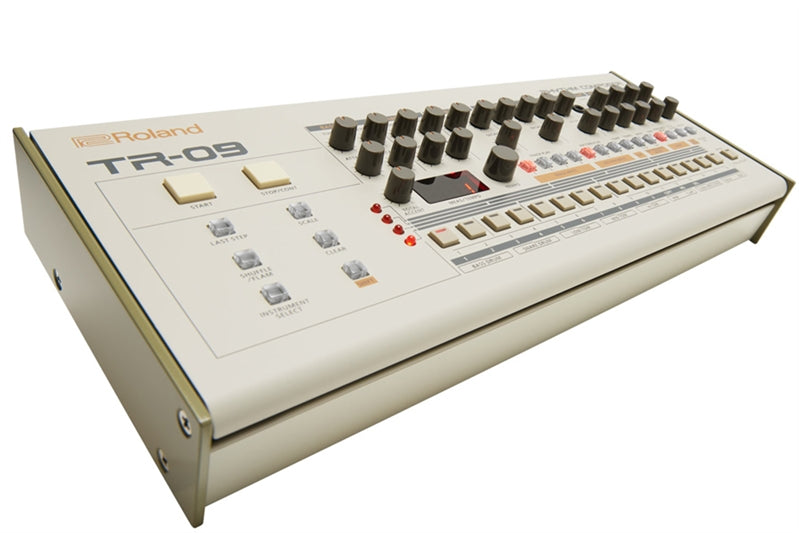

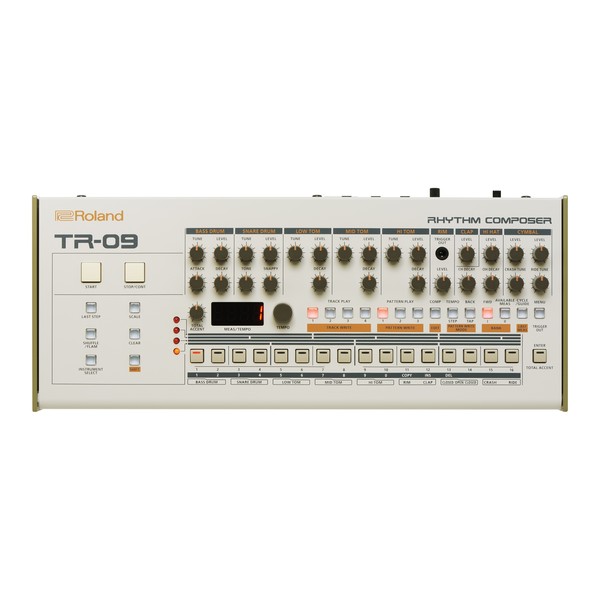

The Roland TR-09 Rhythm Composer is powered by Roland cutting-edge Analog Circuit Behavior (ACB) technology and it delivers the speaker-punishing grooves you know and love along with modern enhancements. The TR-09 gives you exacting control over a selection of drum parameters and now lets you keep playing while switching modes.

Other new features include USB audio with four separate outputs external device control via a trigger output and USB MIDI. Take it from us - the TR-09 may be small but it delivers massive grooves.

FEATURES

• Ultra-compact re-creation of Roland classic TR-909 drum machine
• Delivers the iconic sound and user experience of the original
• Offers hands-on control over many parameters including tune level and decay
• Program using classic Step and Tap write modes
• Sequences can continue playing while switching between write and play modes

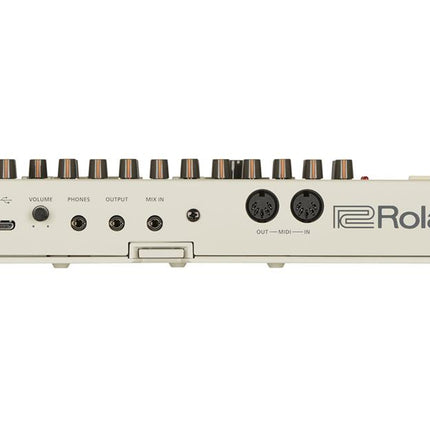

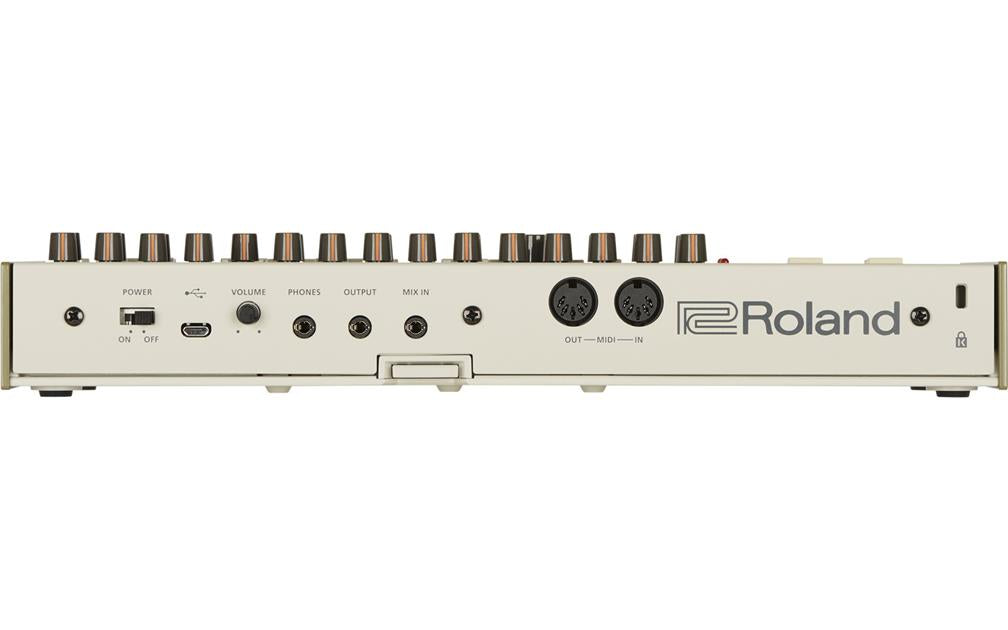

• 4 separate outputs via USB audio
• Trigger output lets you control external instruments that have a trigger input
• Robust construction with metal front panel
• Highly portable for music making on the go
• USB bus powered or with 4 AA batteries
• 24-bit/96kHz stereo in/out USB audio interface
• Built-in powered mini speaker for instant gratification

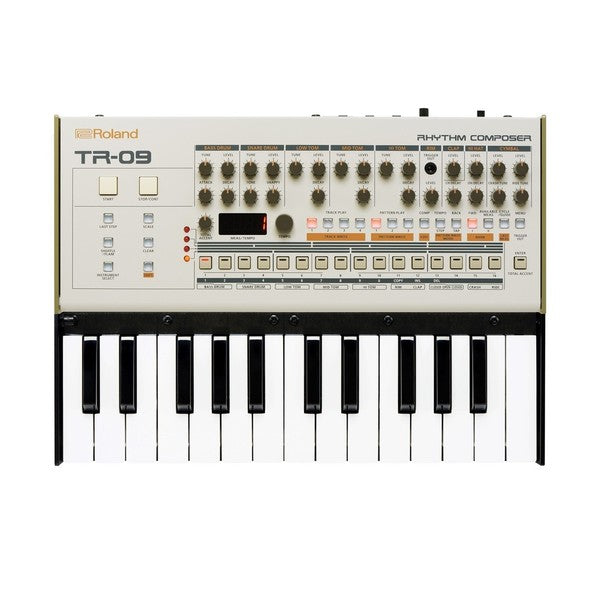

• Compatible with optional Roland K-25m Keyboard unit

SPECIFICATIONS

• Kits:1
• Patterns:96 (2 banks x 3 groups x 16 patterns)
• Sequencer:16 step16 sub-steps
• Pads:16
• USB:1 x Micro-B
• Power:Bus powered or 4 x AA batteries
• Height:2.06"
• Depth:5.12"
• Width:12.12"
• Weight:2 lbs. 2 oz.
• Manufacturer Part Number:TR-09
