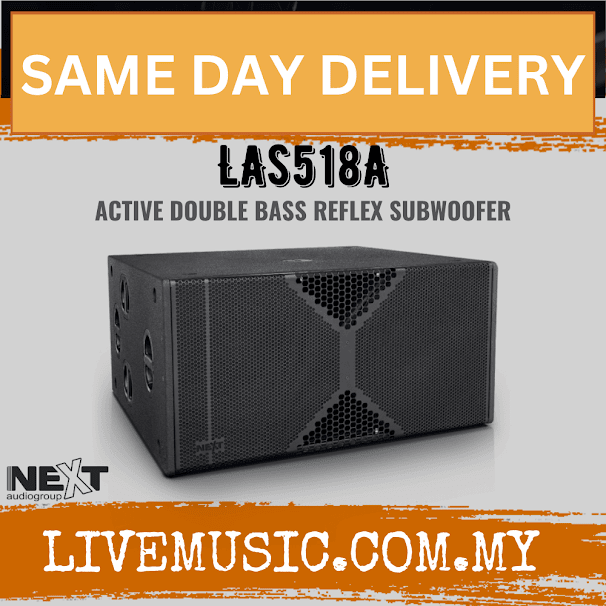

Next Audio LAS518A Active Double Bass Reflex Subwoofer ( LAS-518A / LAS 518A )

Description

SPECIFICATIONS

Product Type

Active High Power Reflex Subwoofer

Frequency Response (-6dB)

28Hz - 250Hz

Low Frequency Extension (-10dB)

24Hz

Amplifier Technology

2-Channel UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion

Amplifier Power

RMS: 2800W / Program: 5000W / Peak: 7000W

DSP Technology

96kHz / 40 bit SHARC DSP

Latency

1.5ms

DSP Adjustable Parameters

Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | Groups: Mute, Delay, Level, Polarity, EQ

DSP Presets

24

Delay Adjustment

500ms (172m) on Input + 400ms (138m) on Groups

Control Type

Control via LCD and Encoder on the Back Panel | Control via Software using Ethernet - Max. Cable Length 70m

Maximum SPL (calculated)

141dB/144dB (Half-Space)

Low Frequency Driver

2 x 18" (460mm)/4"(100mm) VC, high excursion, B&C custom speaker

Audio Signal Inputs

Analog | AES (AESOP)

Input Connectors

1 x XLR | 1 x Neutrik EtherCON®

Audio Signal Outputs

Analog | AES (AESOP)

Output Connectors

1 x XLR | 1 x Neutrik EtherCON®

Protections

Clip Limiter | Temperature | Over Current | DC Protection | HF Protection

Operating Temperature Range

0ºC - 40ºC

Cooling Type

External Aluminum Heat Sink with Internal Speed Controlled Fans

Power Supply

UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter

Power Input

AC 100V - 240V 50Hz/60Hz

Mains Connector

Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®

Power Consumption

700W

Special Features

Speaker Cabinet Auto-Identification via Software

Fittings

1 x M20 pole mount socket, 16 x M8 threaded inserts for optional wheel kit, 8 replaceable feet

Handles

4 on each side

Grille

Black Perforated Steel

Construction

Heavily braced, 18mm multi-laminate birch ply

Finish

Semi-Matte Black Textured Coating

Dimensions (WxHxD)

1030 x 516 x 920mm (40.55 x 20.31 x 36.22in)

Net Weight

89kg (196.2lb)

Shipping Weight

94kg (207.2lb)

Next Audio LAS518A Active Double Bass Reflex Subwoofer ( LAS-518A / LAS 518A )

Product form

RM35,500.00

Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: LAS518A

    Description

    SPECIFICATIONS

    Product Type

    Active High Power Reflex Subwoofer

    Frequency Response (-6dB)

    28Hz - 250Hz

    Low Frequency Extension (-10dB)

    24Hz

    Amplifier Technology

    2-Channel UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion

    Amplifier Power

    RMS: 2800W / Program: 5000W / Peak: 7000W

    DSP Technology

    96kHz / 40 bit SHARC DSP

    Latency

    1.5ms

    DSP Adjustable Parameters

    Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | Groups: Mute, Delay, Level, Polarity, EQ

    DSP Presets

    24

    Delay Adjustment

    500ms (172m) on Input + 400ms (138m) on Groups

    Control Type

    Control via LCD and Encoder on the Back Panel | Control via Software using Ethernet - Max. Cable Length 70m

    Maximum SPL (calculated)

    141dB/144dB (Half-Space)

    Low Frequency Driver

    2 x 18" (460mm)/4"(100mm) VC, high excursion, B&C custom speaker

    Audio Signal Inputs

    Analog | AES (AESOP)

    Input Connectors

    1 x XLR | 1 x Neutrik EtherCON®

    Audio Signal Outputs

    Analog | AES (AESOP)

    Output Connectors

    1 x XLR | 1 x Neutrik EtherCON®

    Protections

    Clip Limiter | Temperature | Over Current | DC Protection | HF Protection

    Operating Temperature Range

    0ºC - 40ºC

    Cooling Type

    External Aluminum Heat Sink with Internal Speed Controlled Fans

    Power Supply

    UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter

    Power Input

    AC 100V - 240V 50Hz/60Hz

    Mains Connector

    Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®

    Power Consumption

    700W

    Special Features

    Speaker Cabinet Auto-Identification via Software

    Fittings

    1 x M20 pole mount socket, 16 x M8 threaded inserts for optional wheel kit, 8 replaceable feet

    Handles

    4 on each side

    Grille

    Black Perforated Steel

    Construction

    Heavily braced, 18mm multi-laminate birch ply

    Finish

    Semi-Matte Black Textured Coating

    Dimensions (WxHxD)

    1030 x 516 x 920mm (40.55 x 20.31 x 36.22in)

    Net Weight

    89kg (196.2lb)

    Shipping Weight

    94kg (207.2lb)
