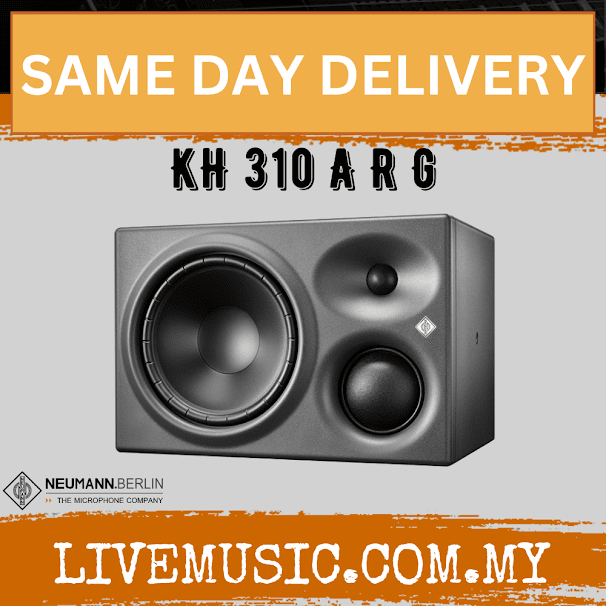

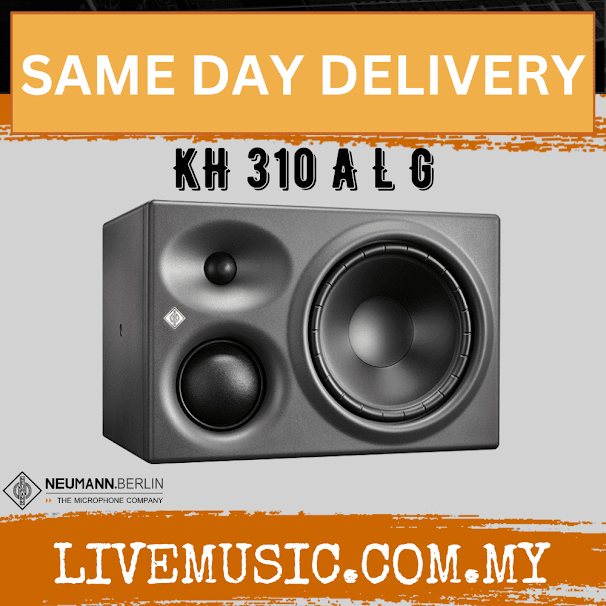

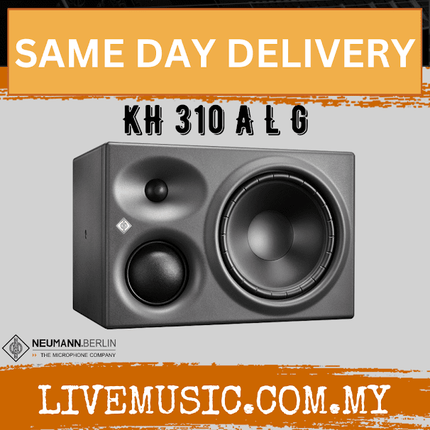

The KH 310 is a three-way tri-amplified monitor with thermally protected Class AB amplifiers (210 W and two times 90 W). Its Mathematically Modeled Dispersion™ (MMD™) waveguide delivers sound waves into the room with superior accuracy. The drivers are modeled using Neumann’s in-house developed software, which reduces non-linear distortion in every situation. Sound distributed in a horizontally precise manner ensures flexibility in the listening position; the narrower vertical dispersion reduces the negative effects of nearby reflections, for example from a desk or mixing console. The precisely controlled dispersion characteristics optimize reproduction in different room configurations and the response is extremely adaptable through various acoustical control settings.

The KH 310 is typically used in near-field applications such as project, music, broadcast and post-production studios for recording, mixing and mastering. It it also available as a digital input “D” version.

With its powerful switched-mode power supply and tri-channel amplifiers, the KH 310 realizes sound pressure of up to 116.3 dB and thereby retains a high-resolution and neutral representation across the entire frequency response. This provides sufficient energy for even the most demanding impulse dynamics with no distortion or losses. The bass goes down to an impressive 34 Hz.

The closed cabinet design means a lower group delay. This results in almost the entire frequency range being reproduced at the same time; the transient response is precisely controlled at all times.

In-house simulated tweeter with alloy fabric dome and robust metal grille

• Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion
• Low-distortion high frequency reproduction
• Grille protects against mechanical damage

(2)
Elliptical Mathematically Modelled Dispersion™ (MMD™) waveguide

• Smoother off -axis response
• More forgiving of diverse acoustical environments

Wide horizontal dispersion

• Freedom of movement across the mixing console

Narrow vertical dispersion

• Reduces reflections off the mixing console

(3)
Two-color + dimmable Neumann logo

• Displays operation status and activation of the extensive protection system
• Dimmable for low lighting level conditions or behind the screen applications

(4)
In-house simulated, neodymium magnet, fabric dome, midrange driver with optimized low stray magnetic field

• Dedicated driver reproduces important midrange frequencies for speech and vocals
• Latest modeling techniques used to minimize non-linear distortion
• Light-weight dome has better transient response and less breakup modes than cone designs
• High power magnet reduces harmonic and intermodulation distortion

(5)
In-house modelled long-throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™), magnetic shielding and flow optimized die cast basket

• Damping of break up modes brings low distortion at high sound levels
• Linear pistonic motor gives a very low harmonic distortion even at high excursions
• Reduced air noise and improved rocking modes

(6)
Compact cabinet

• Robust package for a long life
• No standing wave resonances

One-piece front panel with no discontinuities

• Reduced diffraction and smoother frequency response

(7)
4-position bass, low-mid and treble acoustical controls

• More control in diverse acoustical environments
• Fast acoustical set up in mobile applications
• Repeatable acoustical settings after moving loudspeakers

(8)
Wide range input gain and output level controls

• Easier interfacing with signal sources

(9)
Display dimmer and ground lift

• For low lighting level conditions or behind the screen applications
• Reduced noise in electrically noisy environments and over-comes ground loops

(10)
XLR electronically balanced analogue input

• Standard interfacing to professional equipment

(11)
Universal switched-mode power supply (100 … 240 V)

• One version works in any country and robust to poor quality mains supply

(12)
Fully documented extensive mounting hardware range

• More flexibility in mounting cabinets in more diverse locations and backwards compatible to previous products
• Easy advanced planning for installations

(13)
Powerful amplifiers with large headroom and overheat limiting

• Improved transient response
• Assured reliability and safety

Separate fast acting thermo limiters for woofer, midrange and tweeter to protect the voice coils and power amplifiers

• Woofer soft clip and excursion limiters
• Increases system reliability
• Allows extraction of the maximum performance

MORE FEATURES

Production consistency due to individual hand alignment in final testing

• Any KH 310 is “pair matched” to any other KH 310

Optional robust metal grille

• Can be used to protect the drivers
