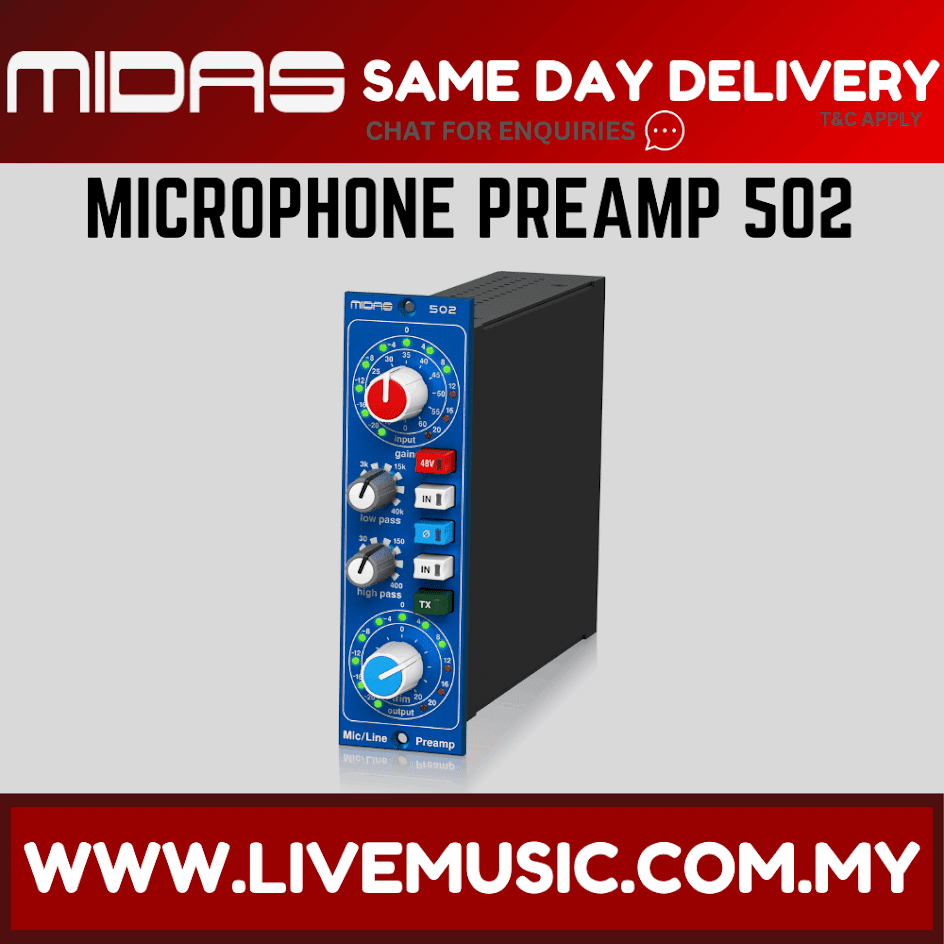

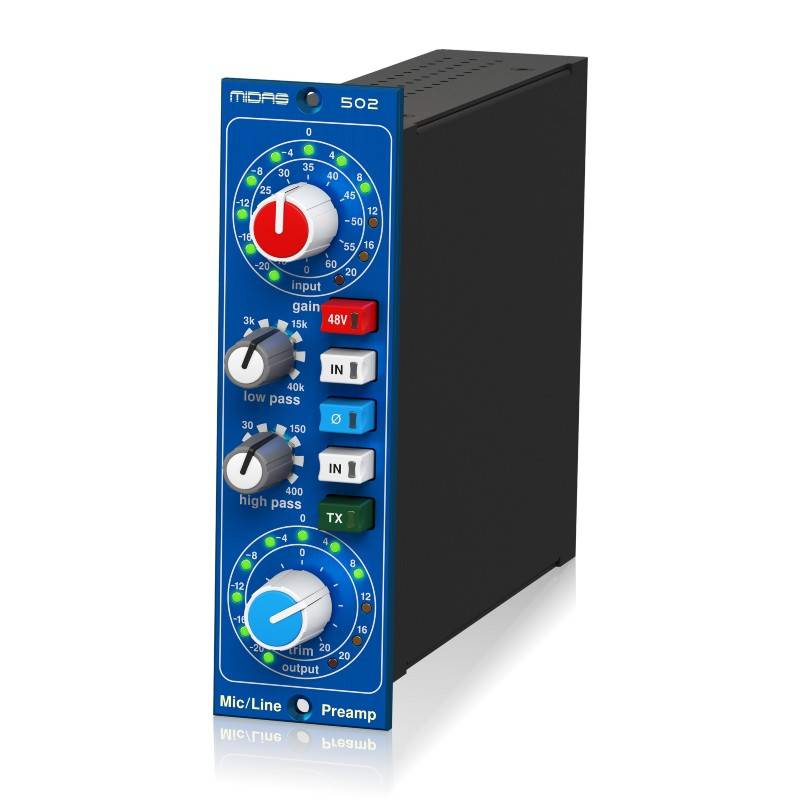

MIDAS MICROPHONE PREAMPLIFIER 502 V2 500 Series Modular Midas Microphone Preamplifier with Classic XL4 Filters

Description



Heard by millions of concert goers and on countless live recordings, the Midas preamp has developed a devoted following among front-of-house engineers for its audiophile-grade sonics, forgiving overload tolerance, and characterful sound when pushed hard. The Midas 502 V2 mic/line preamp gives you grab-and-go access to this indispensable tool in a convenient 500 Series module. We particularly appreciate the sonic flexibility afforded by the inclusion of highpass and lowpass filters derived from the acclaimed Midas XL4 live performance mixing console and a switchable transformer-balanced output. And with 80dB of gain on tap, the Midas 502 V2 will effortlessly handle your lowest output mics.

FEATURES
  • High performance, compact 500 Series premium Midas microphone/line preamplifier
  • Award-winning Midas amp has been enhanced with quad discrete ultra low noise input transistors
  • Legendary Midas input allows up to +24 dBu signal levels with no pad while featuring the much loved soft clipping characteristic
  • Classic Midas XL4 swept low and high pass filters with independent selection switches
  • Switchable twin aux balanced output gives you mic/line splitter capability when installed in Midas L6 or L10 racks
  • Unique twin precision 11 segment LED circular input and output level metering
  • High accuracy rotary switch gain control with 60 dB range in 5 dB steps
  • Output gain trim with ±20 dB range controls input and output stage colouration
  • Total gain range is an amazing -20 dB to +80 dB easily accommodating low output mics
  • Large gain trim knobs provide precise control of input and output gains
  • Illuminated switches for filters, +48V, polarity reverse and (TX) twin aux output enable
  • Power up mute relays prevent switch on thumps
  • Premium quality components throughout for a crystal-clear audiophile signal path
  • Designed and engineered in the U.K.
SPECIFICATIONS
  • Preamp Type : 500 Series Solid State Preamp
  • Number of Channels : 1
  • Frequency Response : 20Hz-40kHz (±0.5dB)
  • Phantom Power : Yes
  • Polarity Switch : Yes
  • EQ : Highpass, Lowpass Filters
  • Module Slot Size : Single
  • Power Usage : ±16V DC, 100mA
  • Height : 5.2"
  • Depth : 6.9"
  • Width : 1.5"
  • Weight : 1.3 lbs.

Dimension Packaging Weight : 1.2 kg

MIDAS MICROPHONE PREAMPLIFIER 502 V2 500 Series Modular Midas Microphone Preamplifier with Classic XL4 Filters

Product form

RM739.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: 502 V2

    Same Day Delivery via Lalamove

    Description



    Heard by millions of concert goers and on countless live recordings, the Midas preamp has developed a devoted following among front-of-house engineers for its audiophile-grade sonics, forgiving overload tolerance, and characterful sound when pushed hard. The Midas 502 V2 mic/line preamp gives you grab-and-go access to this indispensable tool in a convenient 500 Series module. We particularly appreciate the sonic flexibility afforded by the inclusion of highpass and lowpass filters derived from the acclaimed Midas XL4 live performance mixing console and a switchable transformer-balanced output. And with 80dB of gain on tap, the Midas 502 V2 will effortlessly handle your lowest output mics.

    FEATURES
    • High performance, compact 500 Series premium Midas microphone/line preamplifier
    • Award-winning Midas amp has been enhanced with quad discrete ultra low noise input transistors
    • Legendary Midas input allows up to +24 dBu signal levels with no pad while featuring the much loved soft clipping characteristic
    • Classic Midas XL4 swept low and high pass filters with independent selection switches
    • Switchable twin aux balanced output gives you mic/line splitter capability when installed in Midas L6 or L10 racks
    • Unique twin precision 11 segment LED circular input and output level metering
    • High accuracy rotary switch gain control with 60 dB range in 5 dB steps
    • Output gain trim with ±20 dB range controls input and output stage colouration
    • Total gain range is an amazing -20 dB to +80 dB easily accommodating low output mics
    • Large gain trim knobs provide precise control of input and output gains
    • Illuminated switches for filters, +48V, polarity reverse and (TX) twin aux output enable
    • Power up mute relays prevent switch on thumps
    • Premium quality components throughout for a crystal-clear audiophile signal path
    • Designed and engineered in the U.K.
    SPECIFICATIONS
    • Preamp Type : 500 Series Solid State Preamp
    • Number of Channels : 1
    • Frequency Response : 20Hz-40kHz (±0.5dB)
    • Phantom Power : Yes
    • Polarity Switch : Yes
    • EQ : Highpass, Lowpass Filters
    • Module Slot Size : Single
    • Power Usage : ±16V DC, 100mA
    • Height : 5.2"
    • Depth : 6.9"
    • Width : 1.5"
    • Weight : 1.3 lbs.

    Dimension Packaging Weight : 1.2 kg
