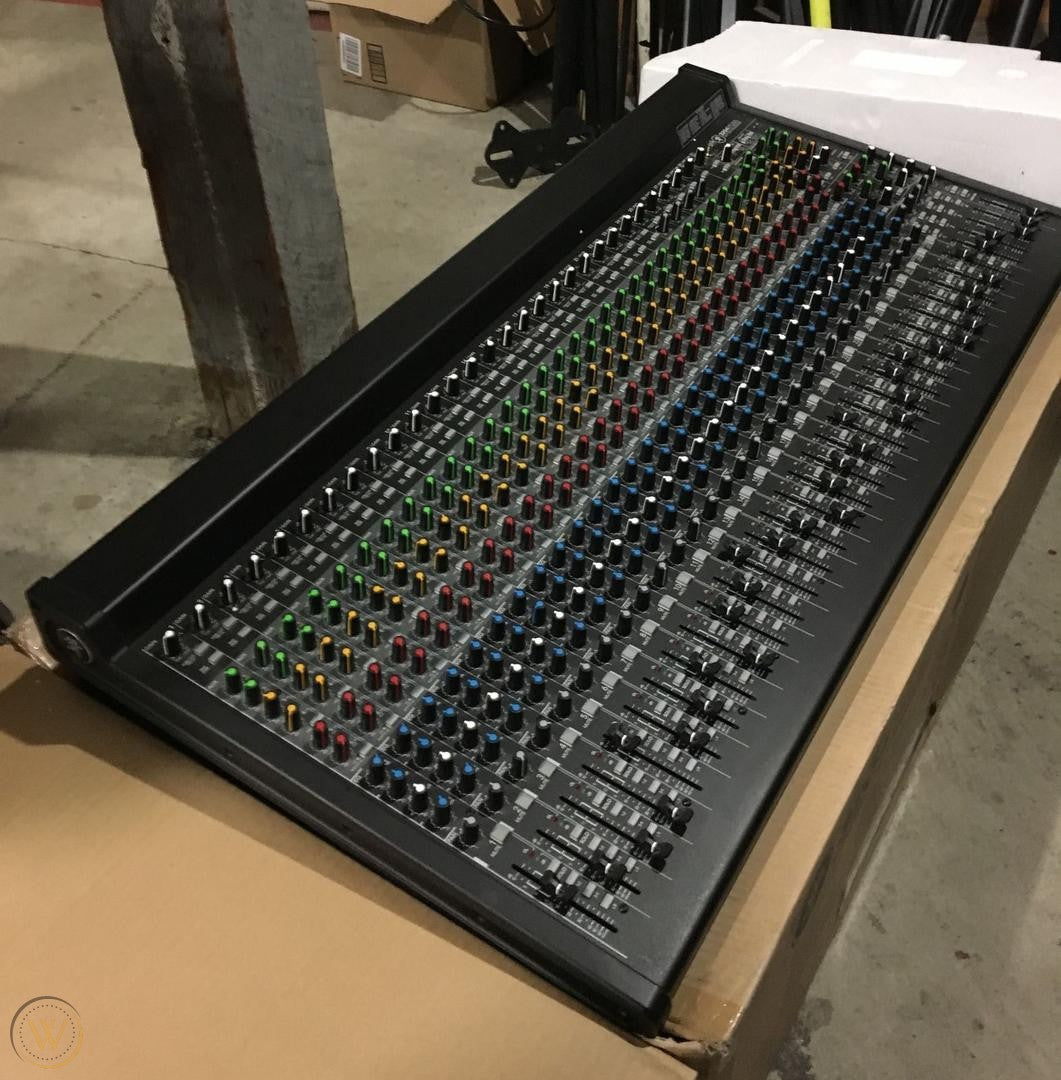

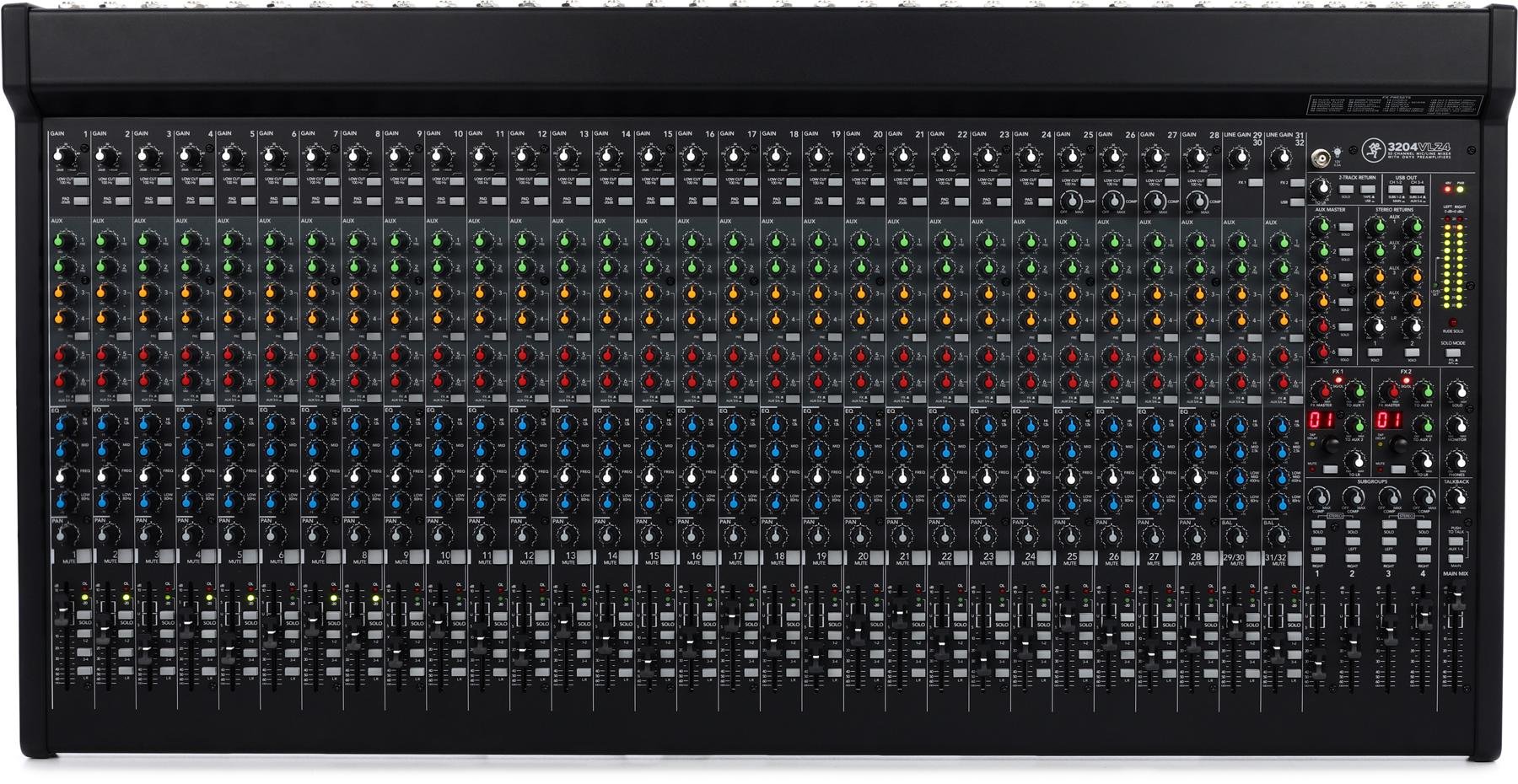

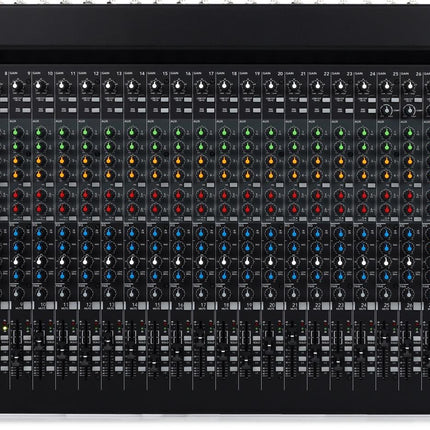

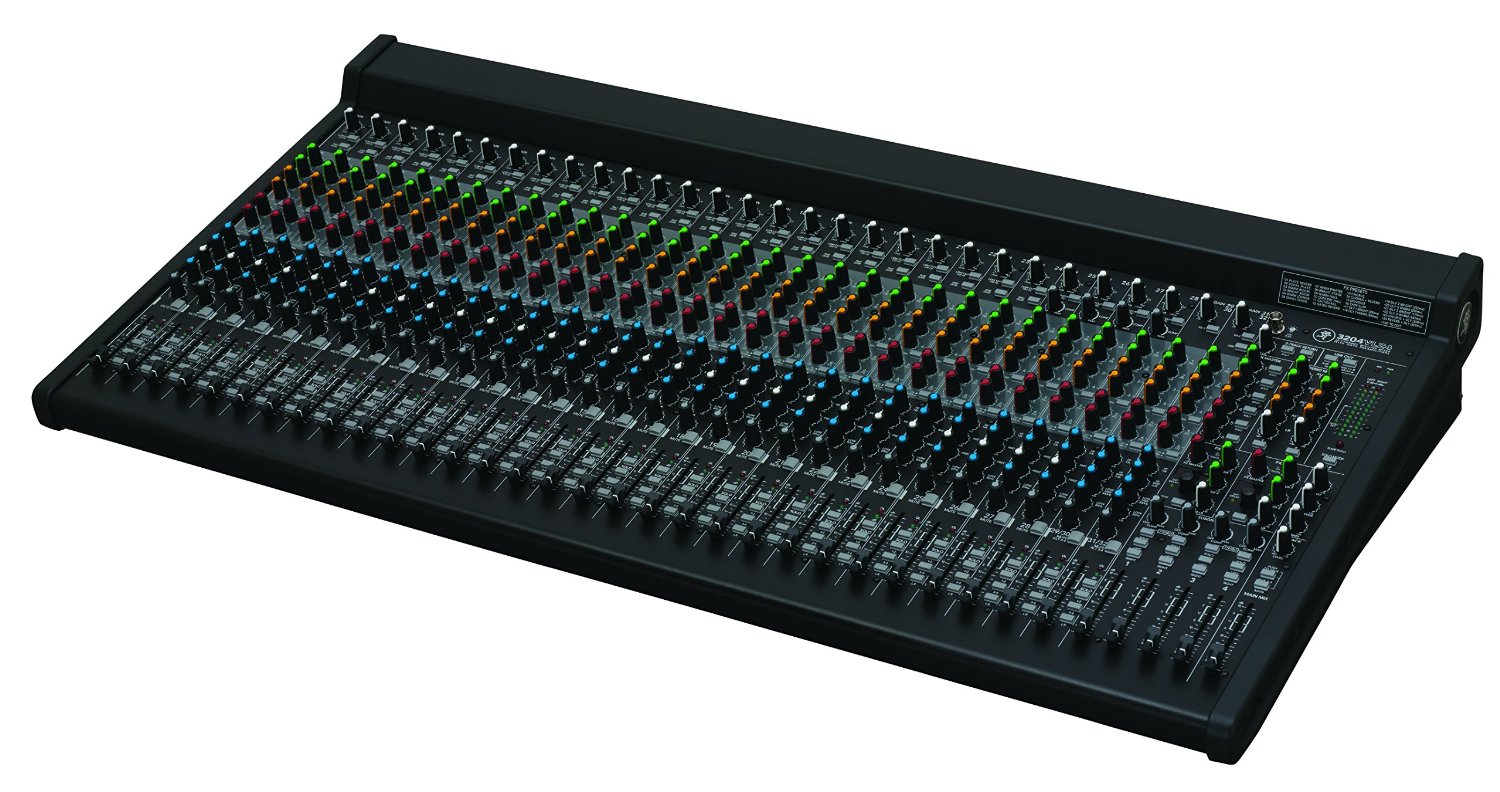

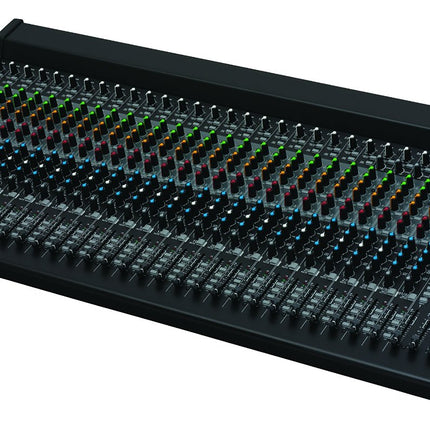

The Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer with USB from the VLZ4 4-Bus Series features Onyx microphone preamps in a high-headroom / low-noise 4-bus design with a feature set suitable for live sound. The mixer is equipped with dual 32-bit RMFX+ effect processors, each with 24 effects including tap delay. It also includes compression on dedicated channels and subgroups that allow for simple, sweet dynamic control.

Additionally, both of the FX processors feature a tap delay and the delays may easily be synchronized with the song at the tap of a finger. The processed signal may be sent directly to the mains and monitors from the effects section or re-routed to the 2 stereo channels to bring them through the EQ and AUX section, utilizing the 60mm fader to draw them into the mix.

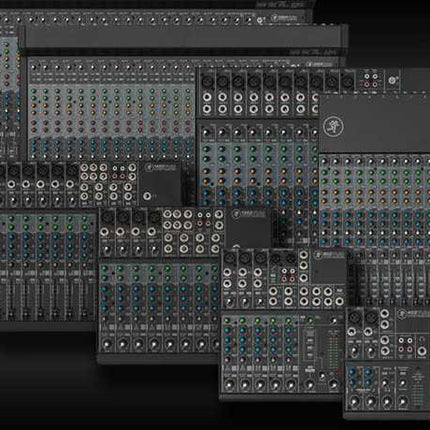

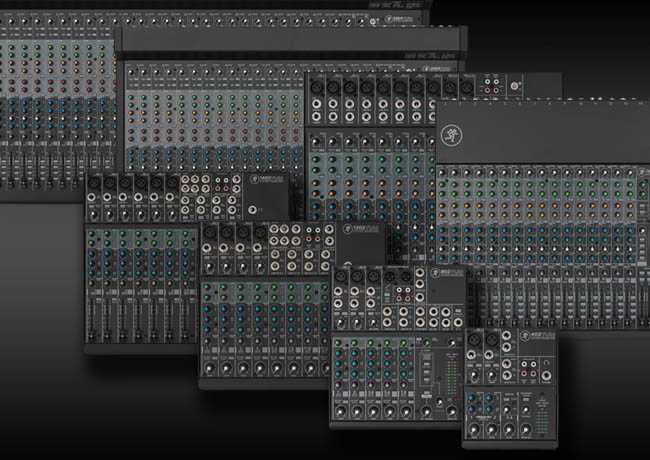

This mixer also features a 4 x 2 USB recording and playback function. This means that up to 4 signals may be recorded simultaneously and a stereo mix returned to the mixer for playback. Its built-like-a-tank construction delivers years of reliable use under strenuous conditions. The VLZ4 4-Bus Series offers a compact FX mixer solution in a design that’s flexible, rugged, and professional.

FEATURES

• Amazingly rugged analog mixer with 28 microphone preamplifiers
• Onyx mic preamps offer up to 60dB of gain for great performance with any mic
• Ultra-low-noise performance gives you clean, clear sound
• High-resolution stereo meters give you fast, easy visual indication of your signal levels
• Sealed rotary controls resist dust and grime
• Four-bus design and intuitive routing make it easy to create submixes for easier, faster mixing
• Dual FX processors make it easy to add studio-quality effects to your show
• 4 x 2 USB audio interface makes it easy to capture high-quality 24-bit recordings
• USB connection can also be used for computer audio playback, or even plug-in effects

SPECIFICATIONS

• Type:    Analog
• Channels:    32
• Computer Connectivity:    USB (4 x 2)
• A/D Resolution:    24-bit
• Faders:    35 x 60mm Throw

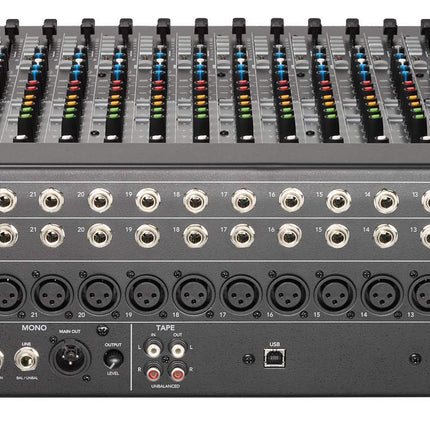

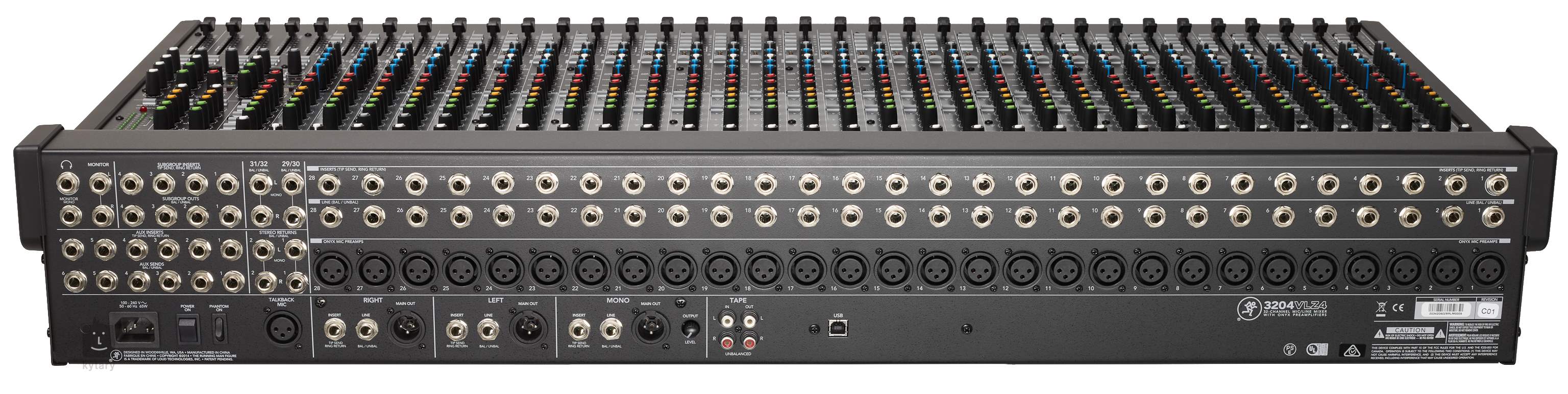

• Inputs - Mic Preamps:    28 x XLR
• Phantom Power:    28
• Inputs - Line:    32 x TRS (28 x Mono, 2 x Stereo Pairs)
• Inputs - Other:    2 x RCA (Tape)
• Outputs - Main:    2 x XLR (Stereo), 1 x XLR (Mono)
• Outputs - Other:    2 x RCA (Tape), 2 x TRS (Monitor, Stereo), 1 x TRS (Monitor, Mono)
• Aux Sends:    4 x Pre/Post, 2 x Post/FX
• Send/Return I/O:    6 x TRS (Send), 4 x TRS (Stereo Return)
• Busses/Groups:    4 x Bus
• Channel Inserts:    Yes
• Headphones:    1 x 1/4"
• USB:    1 x Type B
• Talkback:    Yes
• EQ Bands:    3-band, Sweepable Mid
• Effects:    Yes
• Power Source:    Standard IEC AC cable
• Height:    6"
• Width:    38"
• Depth:    19.1"
• Weight:    39 lbs.
