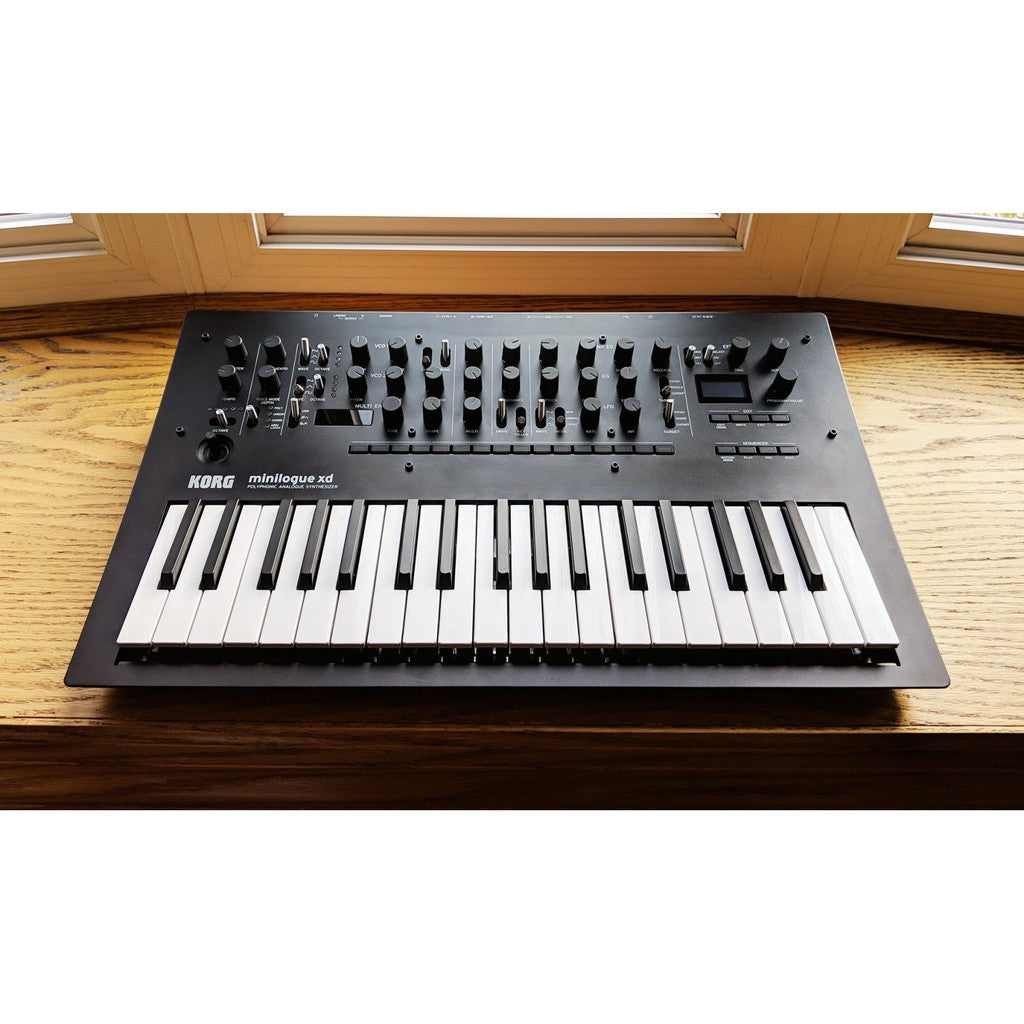

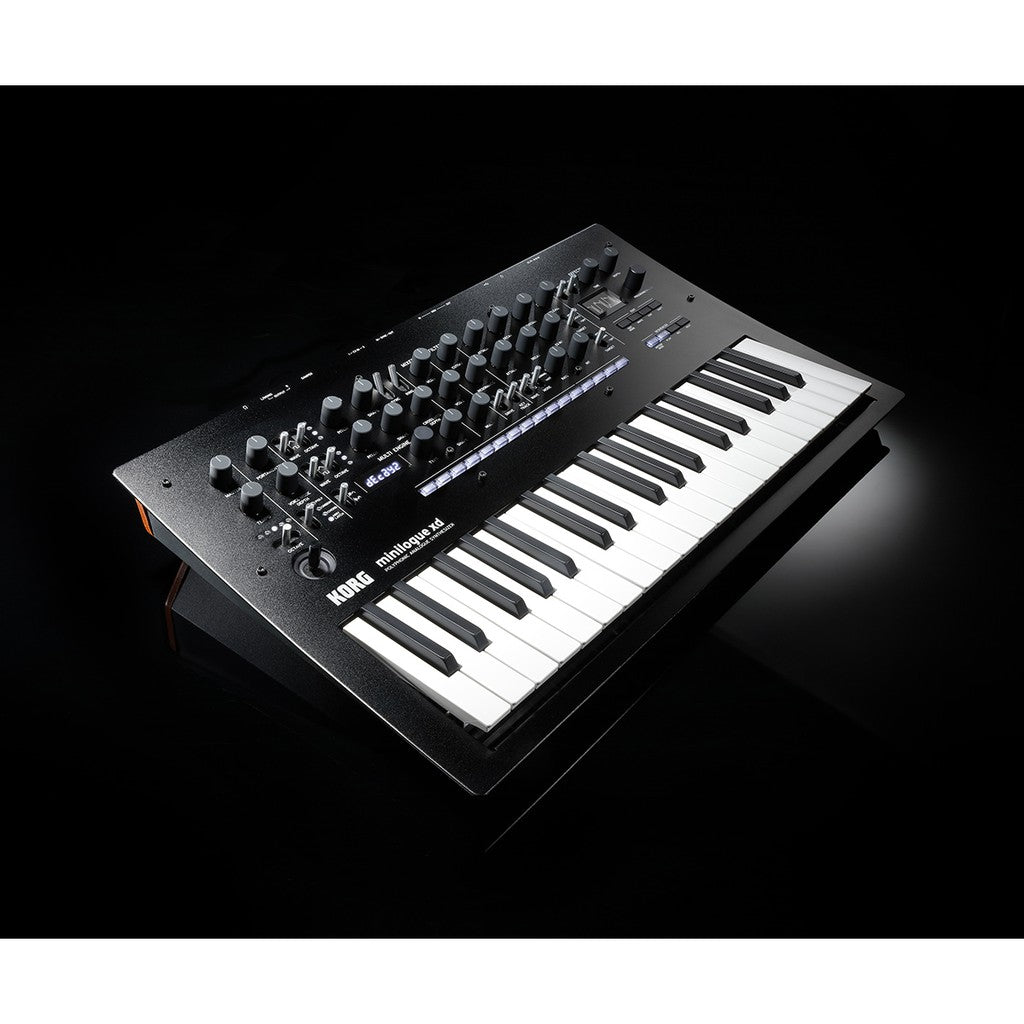

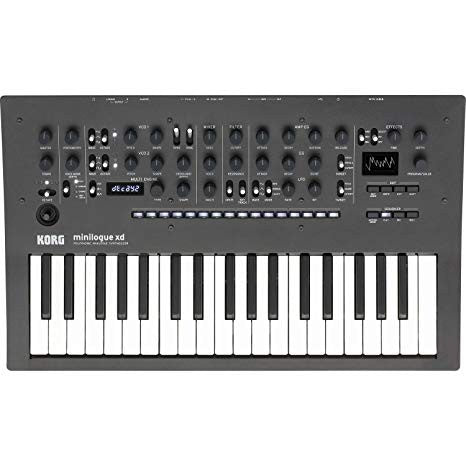

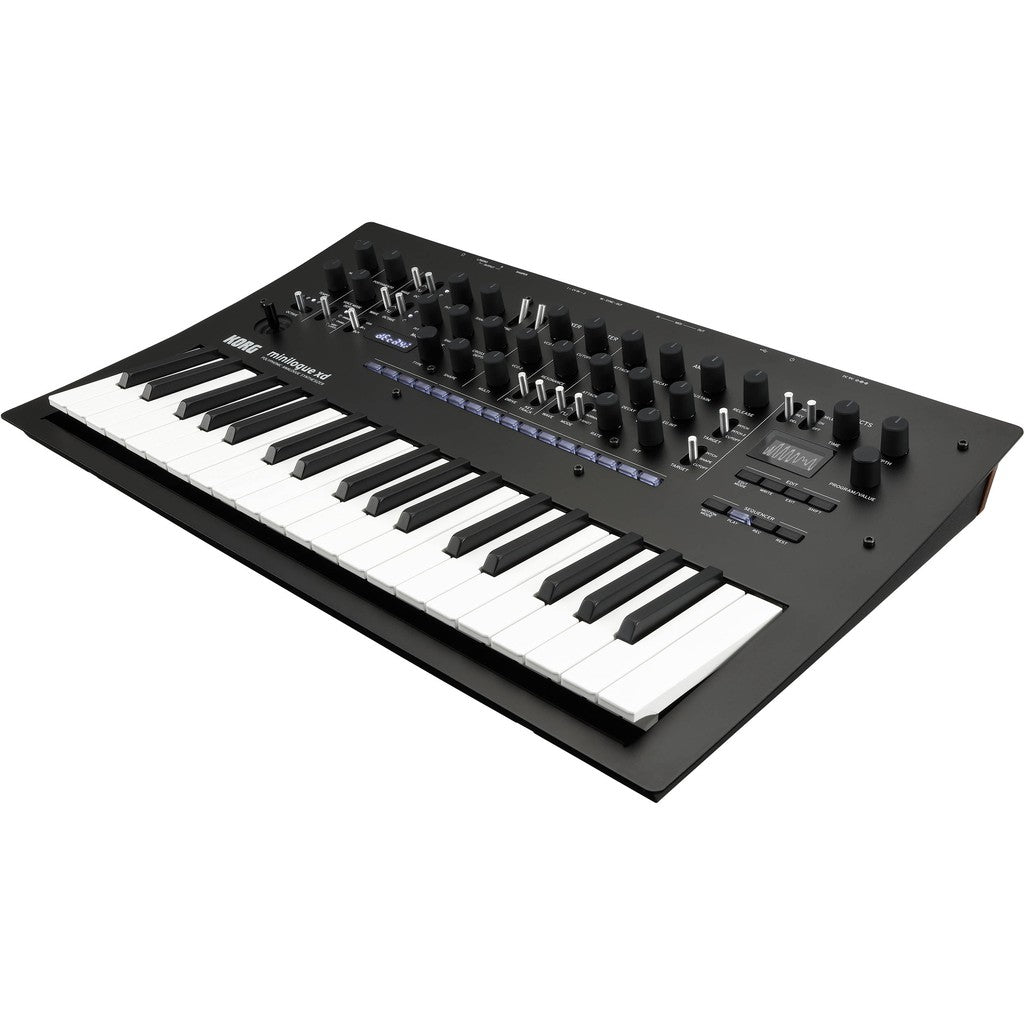

With the Korg minilogue XD hybrid synthesizer, you’ve got a 4-voice analog synth bolstered by Korg’s digital multi-engine. Factor in the built-in effects, powerful sequencer, and micro tuning capability, and you have a full-featured sound design system at your fingertips. It’s based on the analog synth circuit from the minilogue, further refined for maximum sonic appeal. And with the digital multi-engine giving you access to four types of noise, a VPM/FM oscillator, and your own custom user oscillators, there’s a lifetime of creative potential to be explored with the Korg minilogue XD hybrid synthesizer.

FEATURES

• 37-key, 4-voice polyphonic analog/digital synthesizer
• 3 oscillators per voice, 2 analog and 1 digital (FM/wavetable)
• monologue filter design with drive circuit
• 32-bit floating-point digital effects engine with modulation, delay, and reverb effects
• 16 user slots for loading custom oscillators and effects
• CV connectivity for modular synthesizers
• Sync I/O for synchronizing with Volca modules, Electribe drum machines, and other Korg gear
• Polyphonic step sequencer with 16 steps supports both step recording and real-time recording
• Motion sequencer for recording the movements of up to 4 knobs
• Micro tuning function features 23 preset tunings created by Aphex Twin and Dorian Concept
• Oscilloscope and motion view display provides visual feedback of your sound design

SPECIFICATIONS

• Type:Poly Synthesizer
• Sound Engine Type(s):Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
• Analog/Digital:Hybrid
• Number of Keys:37
• Type of Keys:Slim-key, Velocity-sensitive
• Other Controllers:Joystick
• Polyphony:4 Notes
• Presets:500 Voices (200 factory, 300 user)
• Oscillators:2 x Analog VCO (sawtooth, triangle, square), 1 x Digital (noise, vpm, user)
• LFO:1 x LFO (sawtooth, triangle, square), BPM, Normal, 1-shot
• Filter:Sharp Two-pole
• Envelope Generator:1 x AMP EG (ADSR), 1 x EG (attack, decay, EG int, target)
• Effects Types:Chorus, Phaser, Flanger, Delay, Reverb, Ensemble
• Arpeggiator:4-voice with Latch mode
• Sequencer:16-step Polyphonic Sequencer, Motion Sequence, Realtime Recording
• Audio Outputs:2 x 1/4" (L/Mono, R)
• Headphones:1 x 1/4"
• USB:1 x Type B
• MIDI I/O:In/Out
• Pedal Inputs:1 x 1/4" (damper)
• Other I/O:2 x CV in, Sync in, Sync out
• Software:Minilogue Librarian Software
• Power Supply:9V DC power supply (included)
• Height:3.35"
• Width:19.69"
• Depth:11.81"
• Weight:6.17 lbs.
