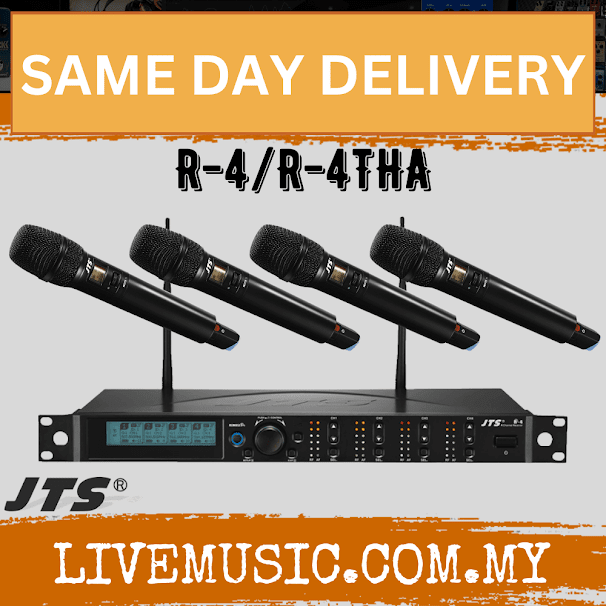

JTS R-4/R-4THA*4 UHF 4 channel diversity system ( 4x Aluminium Handheld transmitter )

Description

The system is designed with JTS newest generation wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel system in a 19” one U case. Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.
JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance.



Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 108MHz Wideband
RF Outputs Low / High
Stability < ±10KHz
Frequency Deviation ±48KHz (Peak)
Chassis Plastic (R-4TH) / Aluminium alloy (R-4THA)
LCD Display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18kHz
Battery UM3, AA x2
Capsules Module  Interchangeable
Dimensions 50(W) x 253(H) x 35.5(D)
Weight 350g
Notes Actual product specifications may vary depending on model and region.

JTS R-4/R-4THA*4 UHF 4 channel diversity system ( 4x Aluminium Handheld transmitter )

Product form

RM7,060.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: R-4/R-4THA*4

    Same Day Delivery via Lalamove

    Description

    The system is designed with JTS newest generation wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel system in a 19” one U case. Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.
    JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance.



    Frequency Preparation PLL Synthesized Control
    Carrier Frequency Range UHF 470~960 MHz
    Bandwidth 108MHz Wideband
    RF Outputs Low / High
    Stability < ±10KHz
    Frequency Deviation ±48KHz (Peak)
    Chassis Plastic (R-4TH) / Aluminium alloy (R-4THA)
    LCD Display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
    Controls Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
    Spurious Emissions <-50 dBC
    Audio Frequency Response 50Hz ~ 18kHz
    Battery UM3, AA x2
    Capsules Module  Interchangeable
    Dimensions 50(W) x 253(H) x 35.5(D)
    Weight 350g
    Notes Actual product specifications may vary depending on model and region.
