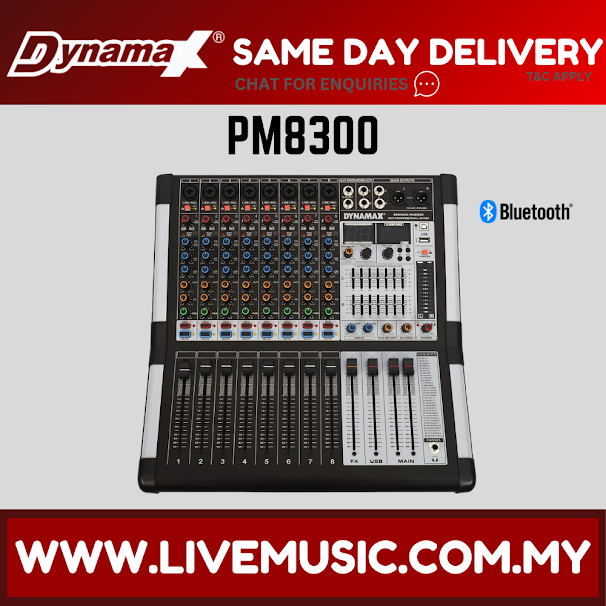

With 8CH mic/line inputs
With USB type B port to connect with PC
Bluetooth/USB for MP3 playback
99-Digital preset effect, 32-bit processing
7-Band stereo graphic equalizer
2-Band USB EQ for MP3
2 groups output (XLR & ¼” TRS)
1 AUX send + 1 AUX return input
Built-in MP3 shortcut button (Stop,BT, REP, REC)
With solo switch on each channel – to listen to a channel signal without affecting the main output signal
With PAD switch on mono input
+48V phantom power (individual channel)
With headphone jack
Output Power: 300W x 2 / 4 ohm
Mixing Channels: 8CH (Combo Jack ~ XLR + ¼” TRS balanced)
AUX: 2 (1 AUX Send + 1 AUX Return)
Main Out: 2 Group (XLR & ¼” TRS )
Speaker Output: Speakon x 4
Headphone Out: ¼” TRS jack
MIC E.I.N (20 Hz ~ 20 kHz): 0 Ω source resistance -134 dB / 135.7 dB A-weighted 50 Ω source resistance -131 dB / 133.3 dB A-weighted 150 Ω source resistance -129 dB / 130.5 dB A-weighted
Frequency Response: <10 Hz ~ 150 kHz (-1 dB) , <10 Hz ~ 200 kHz (-3 dB)
Gain Range: +10 to +60 dB
Impedance: approx. 2.6k Ω balanced
Signal to Noise Ratio: 110 dB / 122 dB A-weighted (0 dBu in @ + 22 dB gain)
Distortion (THD + N): 0.005% / 0.004% A-weighted
Line Input: ¼” TRS connector electronically balanced
Impedance: approx. 20k Ω balanced , 10k Ω unbalanced
Gain Range: -10 to + 40 dB
DSP (Digital Signal Processor): 32-bit Sigma-Delta , 64/128-times oversampling , 40kHz (Sampling Rate)
Power Supply: Power Cord x 1
Product Dimension: 421 x 424 x 165 mm
Packaging Dimension: 500 x 470 x 250 mm
Net Weight / Gross Weight: 11 kg / 12 kg
