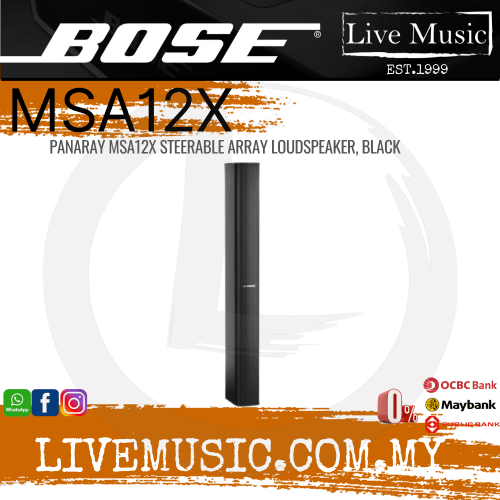

Bose Panaray MSA12X Digital Beam-Steering Loudspeaker - Black ( MSA12X )

Description

The Bose Professional Panaray MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X’s modular design allows building of vertical arrays using 1-3 units. Dante digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks.

FEATURES
  • Digital beam-steering line array column loudspeaker with onboard DSP and 600 watts (12 x 50 W) of amplification
  • Family sound profile with the Panaray MA12EX Loudspeaker
  • Twelve (12) x 2.25-inch full-range transducers with 58 Hz – 18 kHz frequency range
  • Dante® digital audio network interface and line-level analog input
  • Articulated Array® configuration allows wide, 160° horizontal coverage
  • Modular design allows building vertical arrays using 1-3 units
  • Multiple algorithms for beam steering control – designers can optimize consistency of coverage, tonal balance, and maximum SPL per job
  • Supports independent level and EQ control of 2 separate beams per array
  • Integrated mounting bracket allows up 90° of horizontal yaw adjustment
  • Advanced steering and acoustic coverage prediction using Bose Modeler® software
  • System setup, control and monitoring with Bose ControlSpace® Designer™ software
  • Available in black or white finish
SPECIFICATIONS
  • Frequency Range (-10 dB) : 58 Hz – 18 kHz
  • Horizontal Dispersion : 160° H
  • Vertical Opening Angles : Software Adjustable: 1 module: up to 30°, 2-3 modules: up to 40°
  • Vertical Beam Steering Angles : + / - 20°
  • Driver Compliment : Twelve (12) x 2.25-inch full-range transducers
  • Amplifier Power Handling : 600 W (12 x 50 W)
  • Maximum SPL @ 1 m : 112 dB SPL (118 dB SPL peak)
  • Inputs : Dante® digital audio network interface and line-level analog input

Bose Panaray MSA12X Digital Beam-Steering Loudspeaker - Black ( MSA12X )

Product form

RM0.00

WALK-IN INSTALLMENT PLAN UP TO 36 MONTHS
RHB Bank
Aeon Bank
UOB Bank
Affin Bank
Ambank
HSBC Bank
OCBC Bank
Standard Chartered
BSN
Alliance Bank
Maybank
Public Bank
Found Better Price? Reach us Now.
Click here if you find a better price.

SKU: MSA12X-Black

💬 Request a Quote

This item is available on request — contact our sales team for pricing & availability.

Phone / WhatsApp 016-520 1066
Email livemusic1999@gmail.com
    Same Day Delivery via Lalamove

    Description

    The Bose Professional Panaray MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X’s modular design allows building of vertical arrays using 1-3 units. Dante digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks.

    FEATURES
    • Digital beam-steering line array column loudspeaker with onboard DSP and 600 watts (12 x 50 W) of amplification
    • Family sound profile with the Panaray MA12EX Loudspeaker
    • Twelve (12) x 2.25-inch full-range transducers with 58 Hz – 18 kHz frequency range
    • Dante® digital audio network interface and line-level analog input
    • Articulated Array® configuration allows wide, 160° horizontal coverage
    • Modular design allows building vertical arrays using 1-3 units
    • Multiple algorithms for beam steering control – designers can optimize consistency of coverage, tonal balance, and maximum SPL per job
    • Supports independent level and EQ control of 2 separate beams per array
    • Integrated mounting bracket allows up 90° of horizontal yaw adjustment
    • Advanced steering and acoustic coverage prediction using Bose Modeler® software
    • System setup, control and monitoring with Bose ControlSpace® Designer™ software
    • Available in black or white finish
    SPECIFICATIONS
    • Frequency Range (-10 dB) : 58 Hz – 18 kHz
    • Horizontal Dispersion : 160° H
    • Vertical Opening Angles : Software Adjustable: 1 module: up to 30°, 2-3 modules: up to 40°
    • Vertical Beam Steering Angles : + / - 20°
    • Driver Compliment : Twelve (12) x 2.25-inch full-range transducers
    • Amplifier Power Handling : 600 W (12 x 50 W)
    • Maximum SPL @ 1 m : 112 dB SPL (118 dB SPL peak)
    • Inputs : Dante® digital audio network interface and line-level analog input
