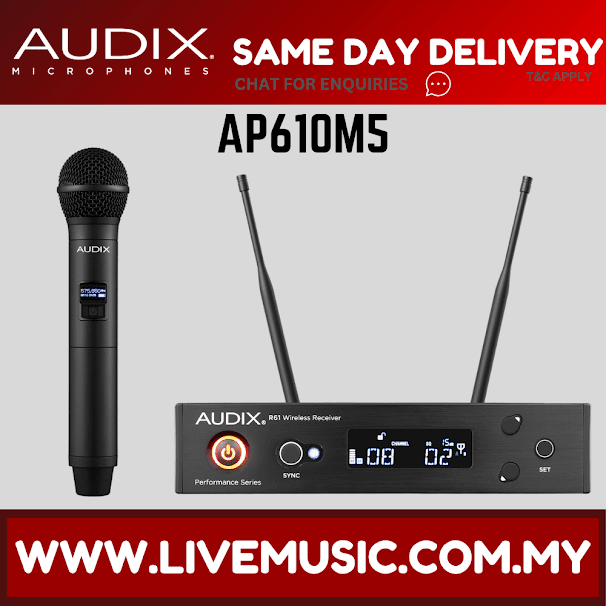

The Audix AP61 OM5 is a Performance Series single-channel true diversity receiver and transmitter bundle designed to deliver reliable long-range wireless audio for performers, presenters, and audio engineers in clubs, houses of worship, and live stage applications. It includes an R61 single-channel true diversity receiver and one H60 transmitter with an OM5 hypercardioid dynamic microphone capsule. With conveniences such as one-touch sync and auto scan, a high-contrast LCD, and 207 pre-coordinated frequencies, the bundle is easy to configure and efficient to operate. It ships with two antennas, two BNC antenna cables, an audio cable, two AA batteries, a power supply, and a rackmount kit.
Audix R61 Kit Single-Channel Wireless True Diversity Receiver (522 to 586 MHz)
The Audix R61 Kit is a Performance Series single-channel true diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 207 pre-coordinated frequencies across 64 MHz of bandwidth in the 522 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 450' away. One-touch sync and auto scan functions provide simple and efficient setup.
The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R61 Kit ships with two antennas, two BNC cables, a carrying case, an audio cable, one power supply, and a rackmount kit.
Incorporate up to 24 systems to use 24 unique channels simultaneously
Single-channel receiver supports one wireless microphone
64 MHz wide spectrum tuning
207 pre-coordinated frequencies
2560 tunable frequencies
High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
One-touch sync via infrared
One-touch scan eliminates inefficient manual tuning
Ground-lift switch helps eliminate ground loops or hum
Metal strain relief for power cable
Adjustable AF and RF level
Selectable receiver lock disables the scan, sync, and power buttons
Selectable transmitter lock prevents the transmitter from being accidentally muted or powered off
Allows front- or rear-mount antenna configurations
UPC: 687471861097
Audix H60 OM5 64 MHz Handheld Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule (522 to 586 MHz)
The Audix H60 OM5 is a Performance Series handheld microphone transmitter with an OM5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 48 Hz to 19 kHz frequency response with a slight high-frequency rise, and a high maximum SPL of approximately 144 dB.
A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
High-contrast LCD shows group, channel, frequency, and battery status
Durable tour-worthy metal housing
Modular capsule design allows easy swapping between dynamic and condenser capsules (available separately)
Convenient soft mute button for quick on/off switching
Two supplied AA batteries provide up to 14 hours of run time
Selectable 10/30mW RF power output
Three selectable gain settings—0 dB, -6 dB, and -12 dB
Dent-resistant steel mesh grille
Includes mic clip and pouch
| Frequency Band | 522 to 586 MHz |
| Bandwidth | 64 MHz |
| # Of Simultaneous Systems | Up to 24 |
| Switchable Frequencies | 207 pre-coordinated frequencies |
| Reception Frequencies | 2560 tunable frequencies (spaced 25 kHz apart) |
| Wireless Range | Up to 450' / 137 m |
| Antenna Connector | 2 x BNC (8 VDC, 150 mA) |
| Outputs | 1 x XLR 3-pin balanced 1 x 1/4" TS unbalanced |
| Audio Output Level | XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain |
| Audio Level Control | -12 to +9 dB in 3-dB steps |
| Frequency Response | 45 Hz to 18 kHz |
| Compander | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Dual tuner, true diversity |
| Signal to Noise Ratio | 112 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion (THD) | <0.4% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Power Requirement | 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A |
| Enclosure Material | Metal |
| Dimensions | 8.1 x 8.1 x 1.7" / 205 x 206 x 44 mm |
| Weight | 2.4 lb / 1.1 kg |
| Type | Dynamic |
| Polar Pattern | Hypercardioid |
| Capsule | VLM Type C |
| Frequency Response | 48 Hz to 19 kHz |
| Maximum SPL | ≥144 dB |
| Impedance | 200 Ohms |
| Sensitivity | 2 mV/Pa at 1 kHz |
| Off-Axis Performance | Rejection >30 dB |
| RF Power Output | 10/30 mW |
| Bandwidth | 64 MHz |
| Gain Adjustment | 0 dB, -6 dB, -12 dB |
| Battery Life | Approximately 14 hours |
| Current Consumption | 110 mA typical |
| Power Requirement | 2 x AA 1.5 V batteries |
| Dimensions | 2.1 x 10.4" / 53 x 265 mm |
| Weight | 11 oz / 312 g without batteries |
