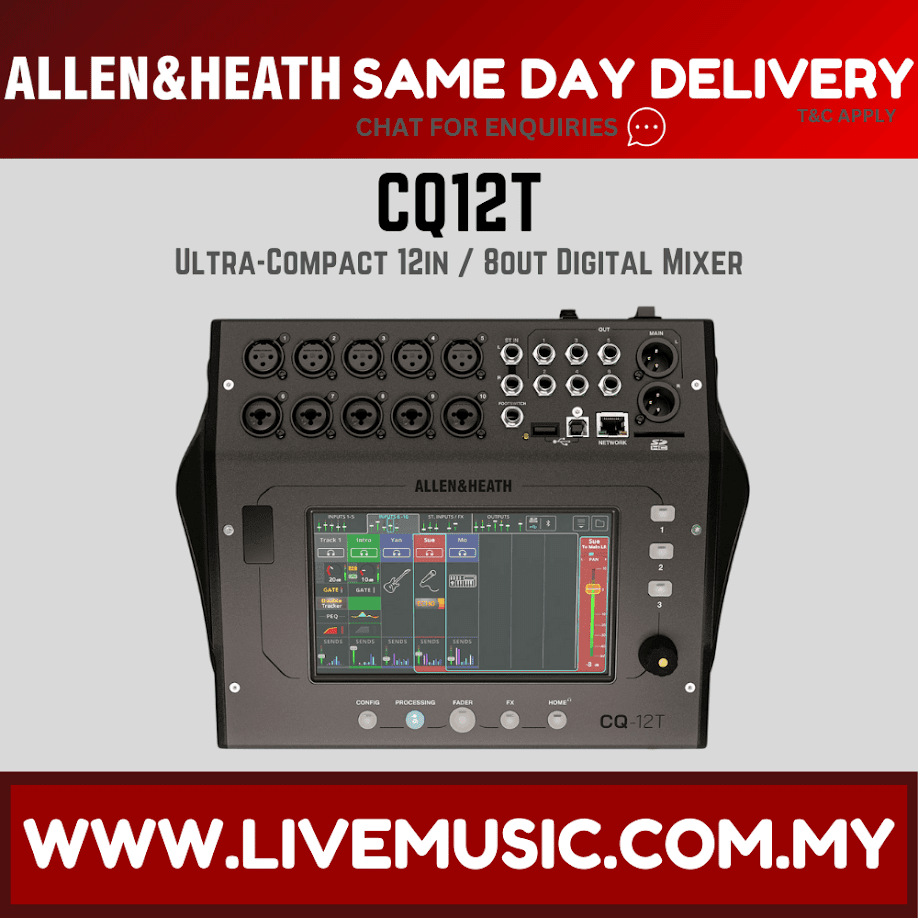

The Allen & Heath CQ-12T is a compact and feature-packed 10-channel digital mixer that fits in your backpack. This portable 96kHz-capable mixer boasts uncompromising audio quality, ensuring top-notch sound in any application. And its smart controls and processing tools make it a breeze to use. The CQ-12T's Preamp Gain Assistant and Feedback Assistant make setup a snap, and its instrument-based Quick input delivers great mixes in no time flat. Want manual control? No problem. Each track includes a Complete input that allows for in-depth tweaking. You get built-in Smart-FX units, arming you with a full complement of reverbs, delays, modulations, and more. Navigating the CQ-12T is a cinch, thanks to its straightforward tactile encoder, custom keys, and responsive touchscreen. The CQ-12T is also great for recording, courtesy of SD recording and playback and a built-in USB audio interface. Baked-in Bluetooth connectivity rounds out the Allen & Heath CQ-12T's robust feature set.

FEATURES

• A compact 10-channel digital mixer that fits in your backpack

• Exhibits outstanding sound quality at 96kHz

• 10 excellent-sounding microphone preamps and stereo Bluetooth input

• Preamp Gain Assistant takes all the guesswork out of setting levels

• Feedback Assistant makes locating and neutralizing acoustic feedback frequencies a piece of cake

• Instrument-based Quick inputs help you get a great sound quickly

• Complete inputs allow for in-depth tweaking

• Smart-FX engines include reverb, delay, modulation, and more

• Tactile encoder adjusts a wide range of parameters with a single, easy-to-use knob

• Custom keys tailor the mixer to your preferred workflow

• Responsive touchscreen combines physical control and at-a-glance visual feedback

• 16 channels of SD card recording and playback via an onboard SD card reader

• Built-in 16-in/16-out USB audio interface enables top-shelf digital multitrack recordings using a computer and DAW

SPECIFICATIONS

Connections

• Input: 5× Mono XLR (Linkable)

• Input: 5× Mono XLR / 1/4" Jack Combi (Linkable)

• Input: 1× Stereo Input (2× TRS 1/4" Jack)

• Main Output: 2× XLR (L/R)

• Output: 6× Mono Aux 1/4" TRS Jacks (Linkable)

• Headphone Output: 1× 1/4" TRS Jack

• Bluetooth: Stereo input to mix

• USB-B: Stereo input to mix + record

• USB-A: Stereo audio record, playback + data

• Footswitch: 1× 1/4" TRS Jack

• RJ45: Network socket (CQ as Client)

• SD Card: Playback + record

Controls

• Touchscreen: 7” capacitive touchscreen

• Touchscreen Switch: 5× buttons for switching viewing modes

• Softkeys: 3× configurable softkeys

• Encoder: 1× endless encoder

Effects

• 2× Multi-FX engines

Audio Processing

• 96kHz input/output processing

Control Apps Via

• macOS

• iPadOS

• iOS

• Windows

• Android

Dimensions

• Width: 290.4mm / 11.4"

• Depth: 241.9mm / 9.5"

• Height: 88.2mm / 3.5"

Weight

• 2.4kg / 5.3lbs

Power

• 12V DC power supply with external worldwide PSU
