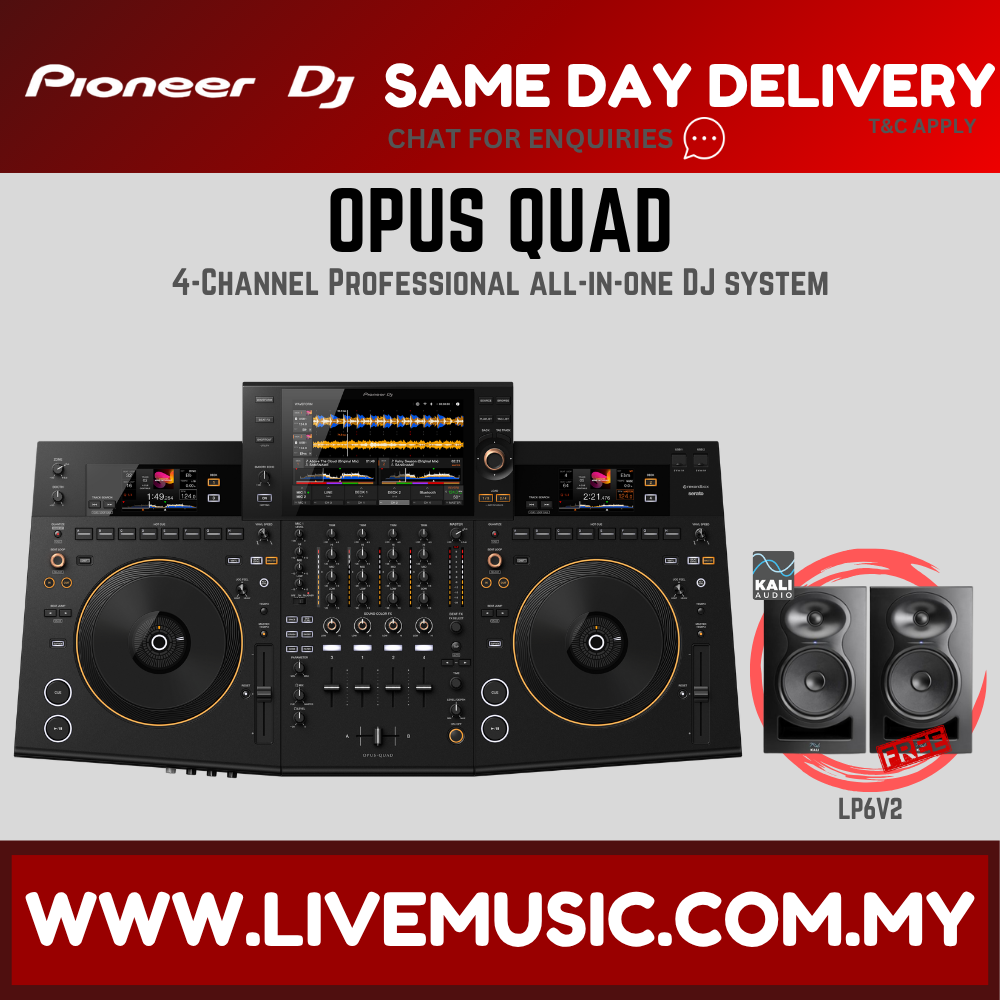

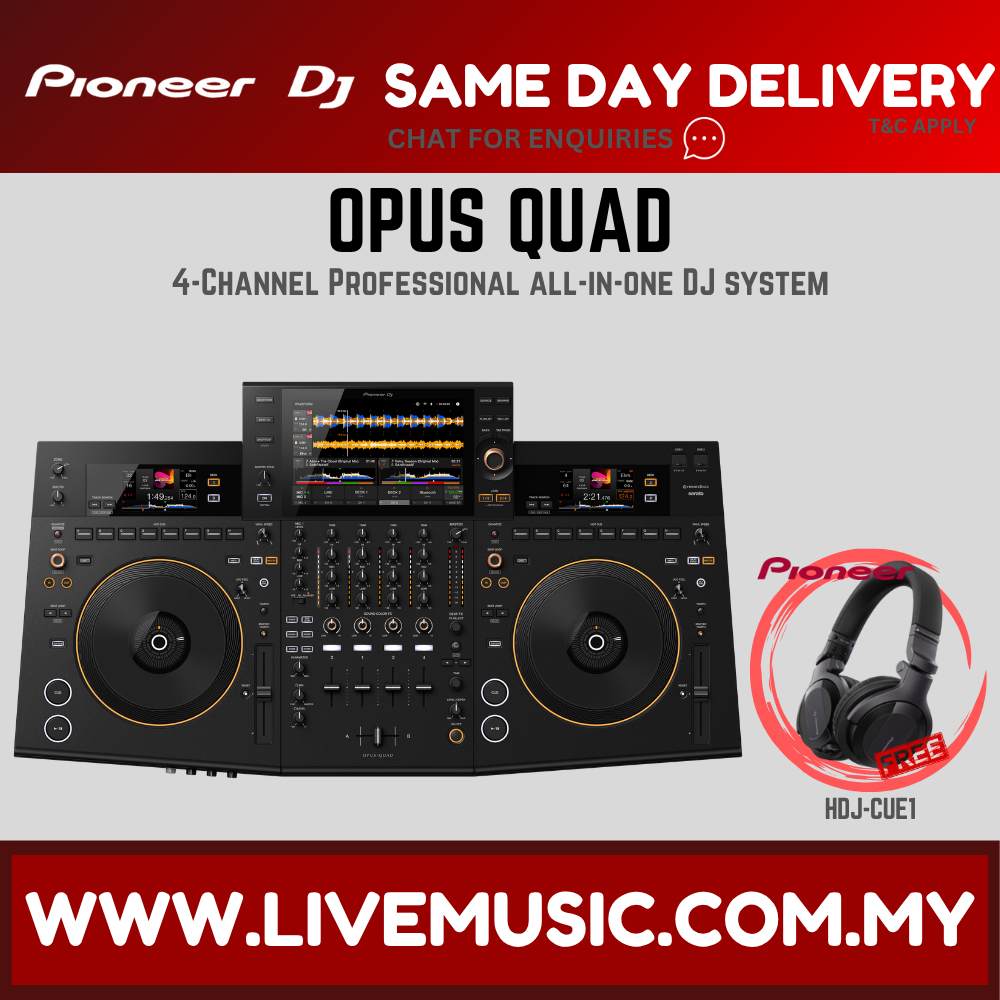

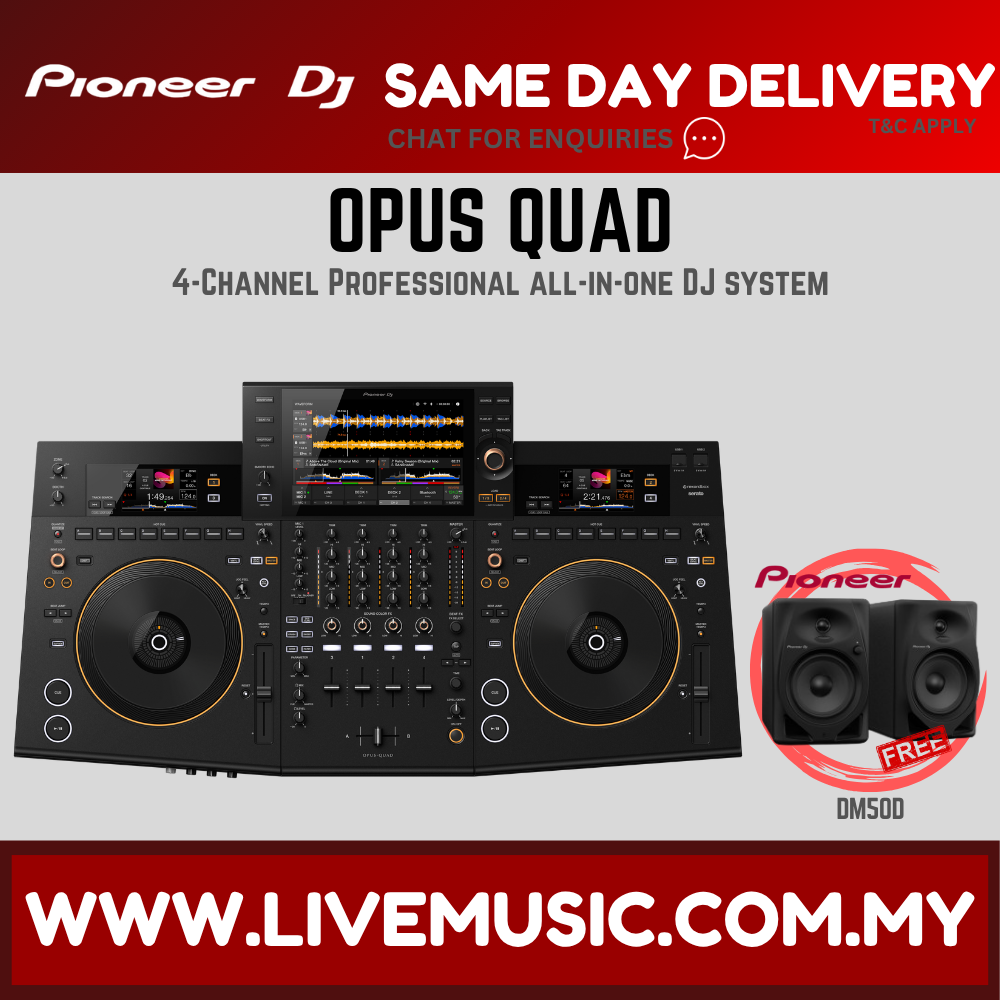

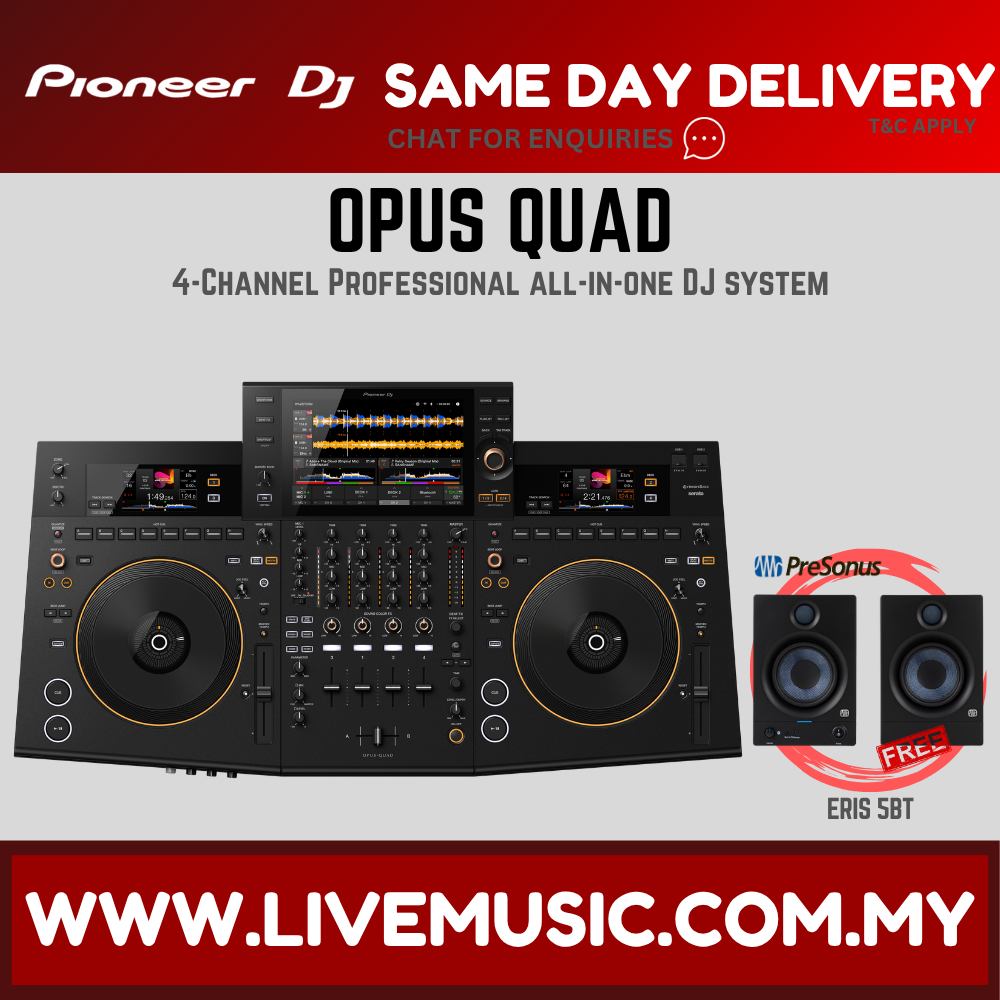

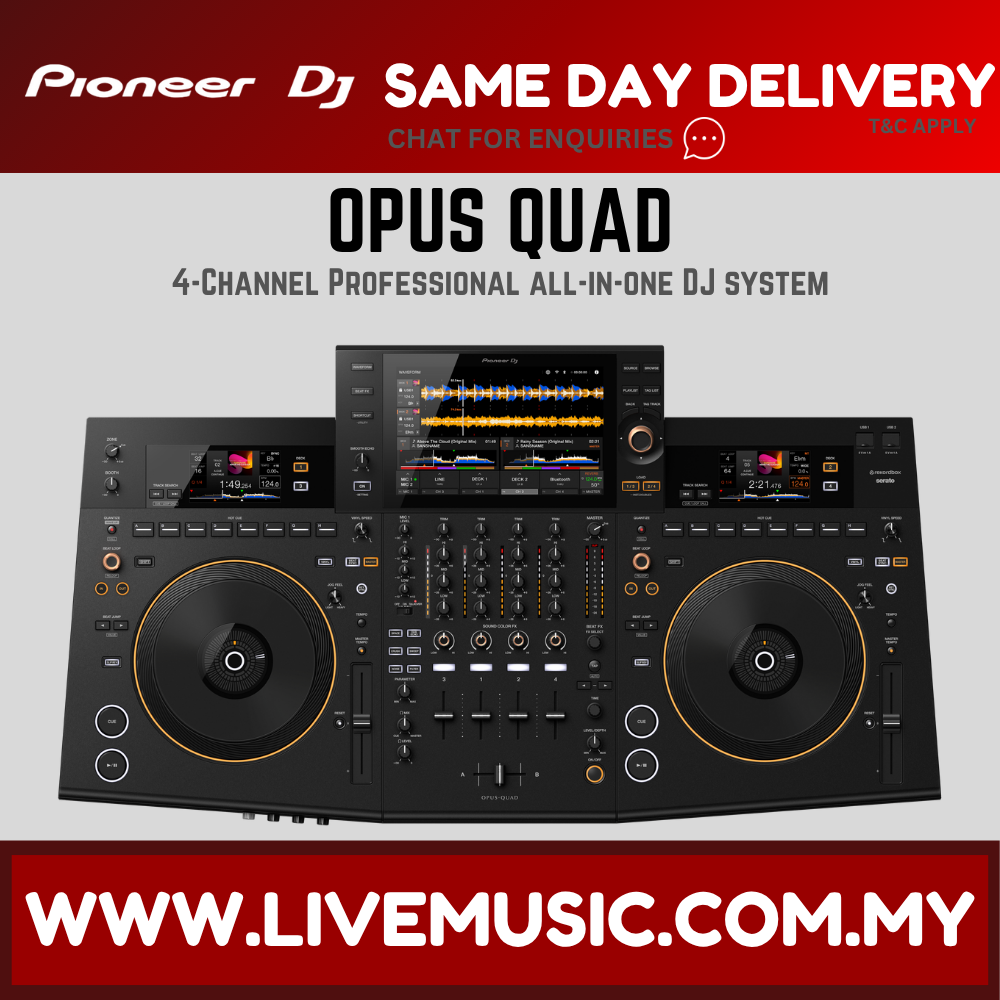

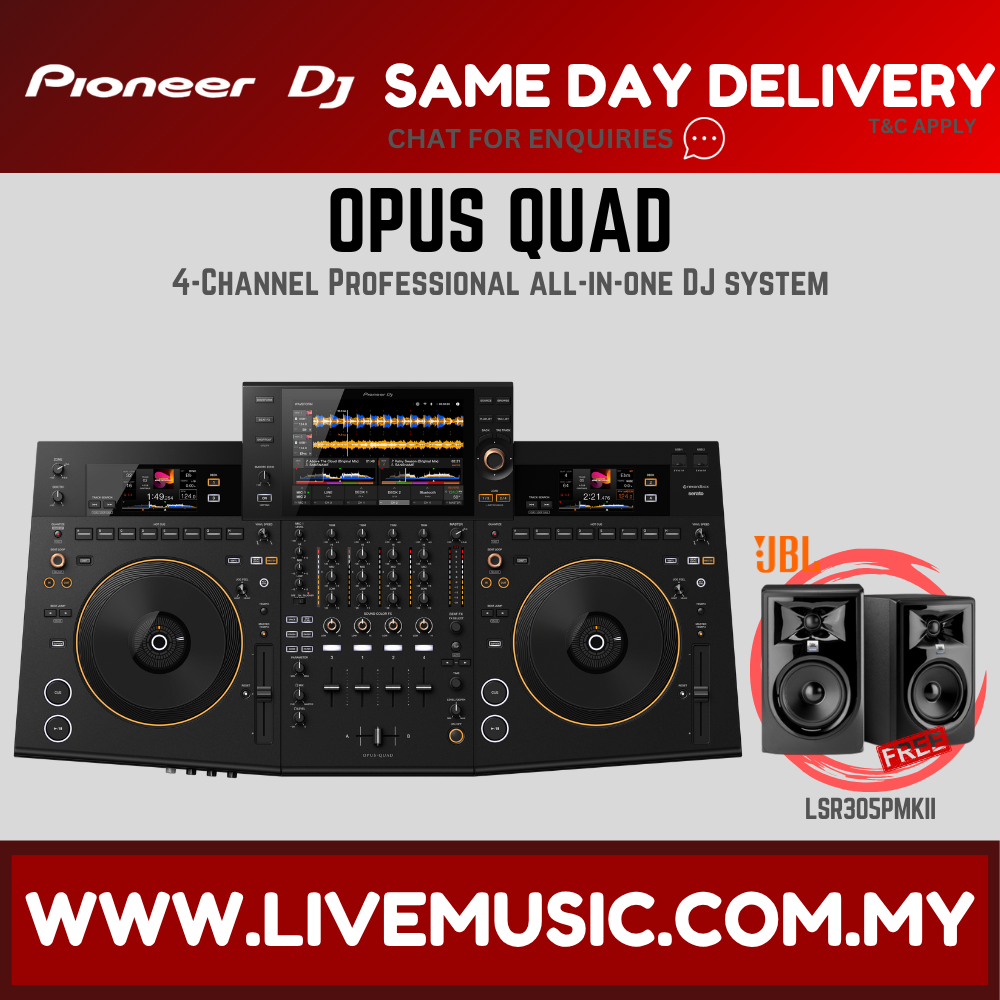

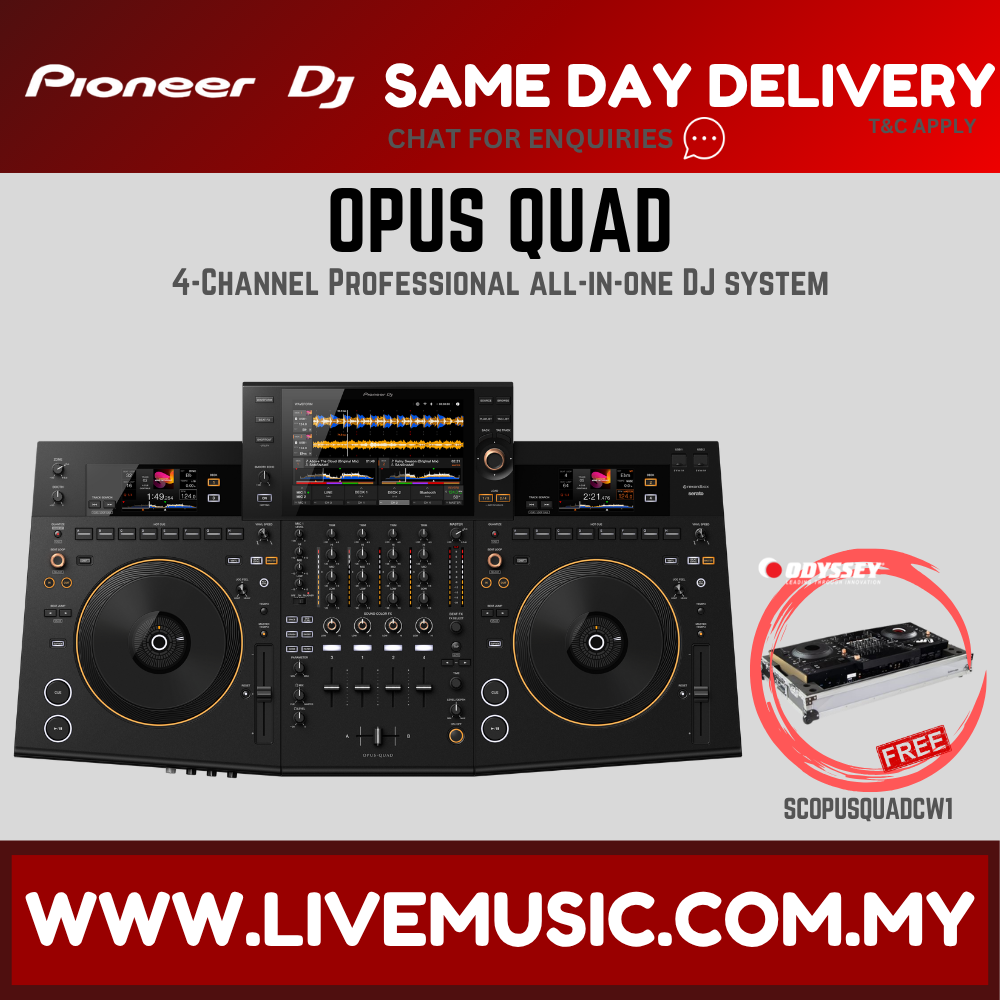

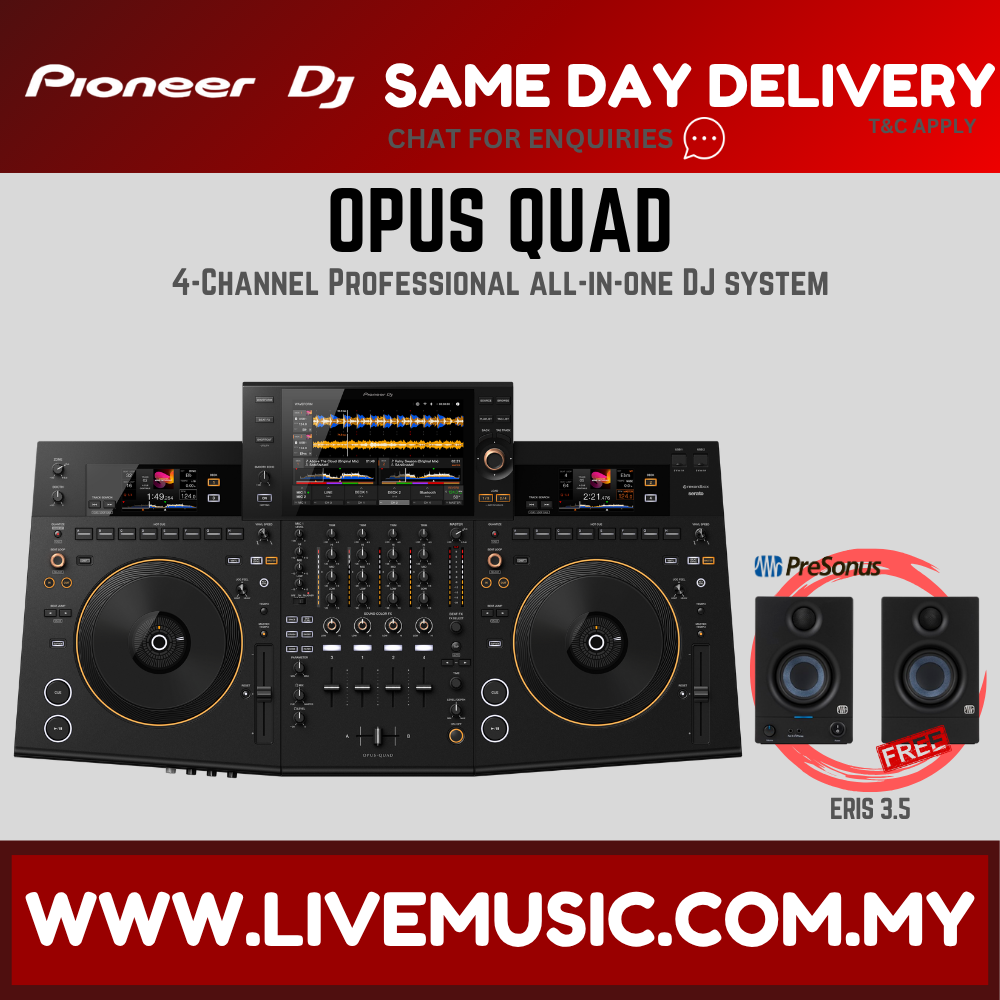

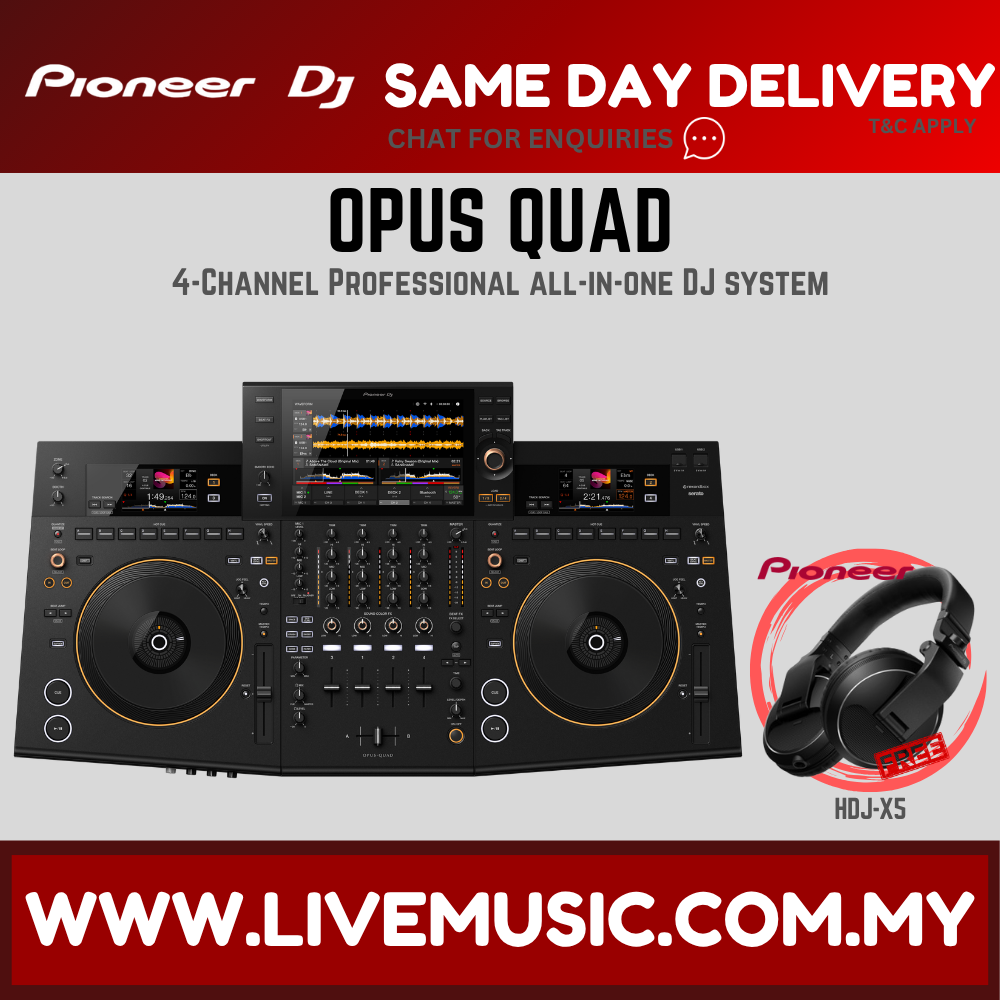

Pioneer DJ OPUS-QUAD Professional all-in-one DJ system With Monitor Speaker And Case ( OPUS QUAD / OPUSQUAD )

Description



This new professional all-in-one DJ system puts you in control of the music, like the conductor of an orchestra. Creating harmony between beautiful design and musical playability, it includes new and evolved features such as standalone 4-deck playback. All this combines to provide a spectacular DJ experience that you can harness to inspire your audience in any space or location.



Features

Supported music file formats

  • MP3
  • AAC
  • WAV
  • AIFF
  • Apple Lossless
  • FLAC

File systems

  • FAT16
  • FAT32
  • exFAT
  • HFS+
  • (NTFS isn’t supported.)

Compatible DJ Software

  • rekordbox for Mac/Windows: Hardware Unlock
  • rekordbox for iOS/Android (coming April 2023)
  • Serato DJ Pro: Hardware Unlock (coming summer 2023)

MIDI Control

Yes

USB record

Yes

Plug and Play

Yes

Auto Standby

Yes

What's in the Box

  • OPUS-QUAD
  • Power cord
  • Quick Start Guide
  • Precautions for Use
  • Warranty (Only products in Europe. Products in North America and Japan include warranty information in the “Precautions for Use”)

Specifications

Sampling Rate

44.1 kHz

Frequency Range

20 - 20000 Hz

Width

925.7 mm

Height

142 mm

Depth

499.7 mm

Weight

13.2 kg

Dimensional Outline drawing

Click here for the details.

Power Supply

AC 100-240 V, 50 Hz / 60Hz

Power Consumption

60 W

MASTER DA converter

32 bit

A/D Converter

24 bit

Signal-to-Noise Ratio

  • USB: 114 dB
  • LINE: 96 dB
  • PHONO: 85 dB
  • MIC: 79 dB

Distortion

  • USB: 0.003 %
  • LINE: 0.005 %

Performance Control

Channels

4

Deck Control

  • 4 (USB storage device)
  • 4 (DJ Software control)

Jog Wheel

206 mm

Jog Feeling

Yes

Sound Color FX

  • Space
  • Dub Echo
  • Sweep
  • Noise
  • Crush
  • Filter

Beat FX

  • Delay
  • Echo
  • Ping Pong
  • Spiral
  • Reverb
  • Trans
  • Filter
  • Flanger
  • Phaser
  • Pitch
  • Slip Roll
  • Roll
  • Vinyl Brake
  • Helix

Hot Cues

8 per deck

Beat Loop

Yes

Beat Jump

Yes

Beat Sync

Yes

Quantize

Yes

WaveZoom

Yes

Manual Loop

Yes

Trim knob

Yes

EQ Isolator

Yes

Mic

Mic Connection

XLR connector & 1/4 inch TRS jack

Mic EQ

3 band

Talkover

MIC OFF/ON/TALK OVER slide SW

Terminals

Inputs

  • 2 LINE (RCA)
  • 2 PHONO (RCA)
  • 2 MIC (XLR connector & 1/4 inch TRS jack)

Outputs

  • 1 MASTER (XLR)
  • 1 MASTER (RCA)
  • 1 ZONE (XLR)
  • 1 BOOTH (1/4 inch TRS Jack)
  • 1 PHONES (1/4 inch stereo phone Jack)
  • 1 PHONES (3.5-mm stereo mini jack)

USB

  • 3 USB A ports
  • 1 USB C port

Wireless LAN

Supported standards

IEEE 802.11 a / b / g / n / ac

Frequency band used

2.4 GHz / 5 GHz

Bluetooth

Wireless system

Bluetooth ver. 4.2

Maximum transmission distance

Approximately 20 m in unobstructed circumstances.
(Transmission distances are a guideline. Transmission distance may change depending on the surrounding environment.)

Frequency band used

2.4GHz

Modulation method

FH-SS (Frequency Hopping Spread Spectrum)

Compatible codecs

SBC, AAC

Pioneer DJ OPUS-QUAD Professional all-in-one DJ system With Monitor Speaker And Case ( OPUS QUAD / OPUSQUAD )

Product form

RM18,899.00  RM18,499.00

 This new professional all-in-one DJ system puts you in control of the music, like the conductor of an orchestra. Creating... Read more

Free pickup in our shop(s)

SKU: OPUSQUAD

    Description



    This new professional all-in-one DJ system puts you in control of the music, like the conductor of an orchestra. Creating harmony between beautiful design and musical playability, it includes new and evolved features such as standalone 4-deck playback. All this combines to provide a spectacular DJ experience that you can harness to inspire your audience in any space or location.



    Features

    Supported music file formats

    • MP3
    • AAC
    • WAV
    • AIFF
    • Apple Lossless
    • FLAC

    File systems

    • FAT16
    • FAT32
    • exFAT
    • HFS+
    • (NTFS isn’t supported.)

    Compatible DJ Software

    • rekordbox for Mac/Windows: Hardware Unlock
    • rekordbox for iOS/Android (coming April 2023)
    • Serato DJ Pro: Hardware Unlock (coming summer 2023)

    MIDI Control

    Yes

    USB record

    Yes

    Plug and Play

    Yes

    Auto Standby

    Yes

    What's in the Box

    • OPUS-QUAD
    • Power cord
    • Quick Start Guide
    • Precautions for Use
    • Warranty (Only products in Europe. Products in North America and Japan include warranty information in the “Precautions for Use”)

    Specifications

    Sampling Rate

    44.1 kHz

    Frequency Range

    20 - 20000 Hz

    Width

    925.7 mm

    Height

    142 mm

    Depth

    499.7 mm

    Weight

    13.2 kg

    Dimensional Outline drawing

    Click here for the details.

    Power Supply

    AC 100-240 V, 50 Hz / 60Hz

    Power Consumption

    60 W

    MASTER DA converter

    32 bit

    A/D Converter

    24 bit

    Signal-to-Noise Ratio

    • USB: 114 dB
    • LINE: 96 dB
    • PHONO: 85 dB
    • MIC: 79 dB

    Distortion

    • USB: 0.003 %
    • LINE: 0.005 %

    Performance Control

    Channels

    4

    Deck Control

    • 4 (USB storage device)
    • 4 (DJ Software control)

    Jog Wheel

    206 mm

    Jog Feeling

    Yes

    Sound Color FX

    • Space
    • Dub Echo
    • Sweep
    • Noise
    • Crush
    • Filter

    Beat FX

    • Delay
    • Echo
    • Ping Pong
    • Spiral
    • Reverb
    • Trans
    • Filter
    • Flanger
    • Phaser
    • Pitch
    • Slip Roll
    • Roll
    • Vinyl Brake
    • Helix

    Hot Cues

    8 per deck

    Beat Loop

    Yes

    Beat Jump

    Yes

    Beat Sync

    Yes

    Quantize

    Yes

    WaveZoom

    Yes

    Manual Loop

    Yes

    Trim knob

    Yes

    EQ Isolator

    Yes

    Mic

    Mic Connection

    XLR connector & 1/4 inch TRS jack

    Mic EQ

    3 band

    Talkover

    MIC OFF/ON/TALK OVER slide SW

    Terminals

    Inputs

    • 2 LINE (RCA)
    • 2 PHONO (RCA)
    • 2 MIC (XLR connector & 1/4 inch TRS jack)

    Outputs

    • 1 MASTER (XLR)
    • 1 MASTER (RCA)
    • 1 ZONE (XLR)
    • 1 BOOTH (1/4 inch TRS Jack)
    • 1 PHONES (1/4 inch stereo phone Jack)
    • 1 PHONES (3.5-mm stereo mini jack)

    USB

    • 3 USB A ports
    • 1 USB C port

    Wireless LAN

    Supported standards

    IEEE 802.11 a / b / g / n / ac

    Frequency band used

    2.4 GHz / 5 GHz

    Bluetooth

    Wireless system

    Bluetooth ver. 4.2

    Maximum transmission distance

    Approximately 20 m in unobstructed circumstances.
    (Transmission distances are a guideline. Transmission distance may change depending on the surrounding environment.)

    Frequency band used

    2.4GHz

    Modulation method

    FH-SS (Frequency Hopping Spread Spectrum)

    Compatible codecs

    SBC, AAC
